Our Products

Fire Alarm System

We offer the best product range of R4343 E1014 Honeywell Flame Detector Relay, QRA10.C/QRA10M Siemens UV Flame Detector and Automatic Black Siemens UV Flame Detector.

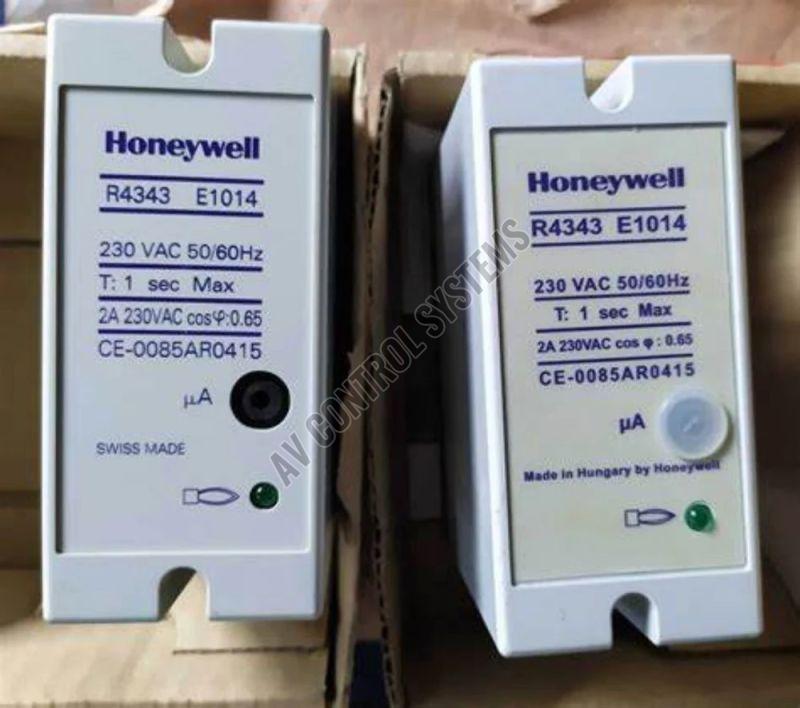

R4343 E1014 Honeywell Flame Detector Relay

₹ 6,000 / Piece Get Latest Price

Min. Order (MOQ) 100 Piece
Brand Name Honeywell, Honeywell
Power Source Battery
Application Industrial Use
Country of Origin India
Number Of Flower Flame Detector Relay
Usage Detecting Flames And Providing Relay Output Signal
Compatibility Compatible With Honeywell Flame Detection Systems
Dimensions Typical Industry Standard Dimensions

View Complete Details

Ask Latest Price & Details

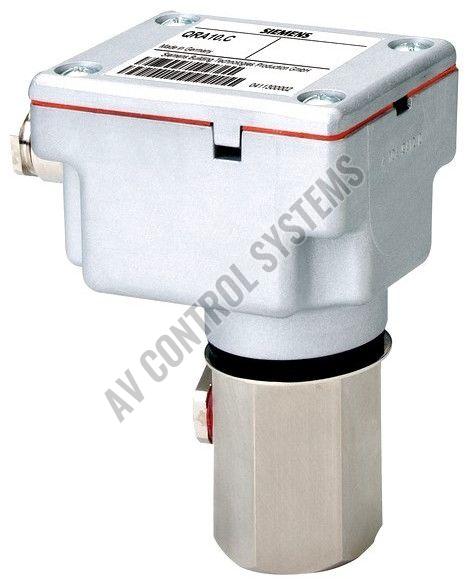

QRA10.C/QRA10M Siemens UV Flame Detector

₹ 6,500 - ₹ 8,000 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Type Uv Flame Detector
Material Die-cast Aluminium Housing
Color Silver
Application Supervision Of Gas Flames, Yellow Or Blue Oil Flames, Ignition Spark Proving
Operation Activated During Each Half Wave When UV Radiation Of The Flame Is High Enough
Specifications Die-cast Aluminium Housing With 1 In. Mounting Coupling, Direct Mounting On Burner, Intermittent Use, IP54 Protection, Temperature Range: -20 To 60°C

Description

The UV flame detectors QRA10.C and QRA10M.C for the supervision of gas flames, yellow or blue oilflames and for ignition spark proving.

Operation: when the UV radiation of the flame in the position of the detector is high enough, the detector is activated during each half wave, giving a signal current.

Specifications:

- Die-cast aluminium housing with a 1 in. mounting coupling (D) and a connection facility for cooling air. This housing has a bayonet fitting which allows it to be secured either directly to the mounting coupling or to the glass holder AGG06. The mounting coupling can be screwed to a viewing tube or to the ball head AGG07.

- Direct mounting on burner

- Intermittent use

- IP54 protection.

- Temperature Range: -20 to 60 °C.

View Complete Details

Ask Latest Price & Details

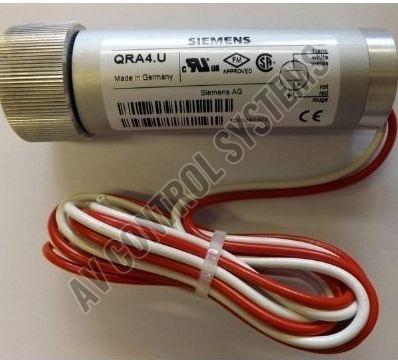

Automatic Black Siemens UV Flame Detector

₹ 5,000 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Power Source Battery
Application Industrial Use, Flame Detection In Industrial Settings
Country of Origin India
Number Of Flower Automatic UV Flame Detector
Packaging Type Grey
Brand Name Siemens

View Complete Details

Ask Latest Price & Details
