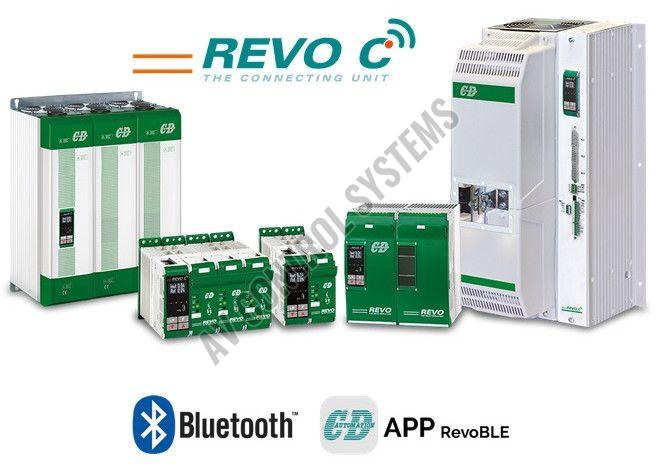

REVO-C power controllers: the best for power and temperature control in industrial applications

Welcome to the REVO C family of power controllers from CD Automation. Available with a current range from 30A up to 2100A and in single-phase, two-phase or three-phase versions, REVO C power controllers are the ideal solution for effectively managing electrical heating in industrial applications. These devices, designed with meticulous attention to quality and performance, offer a variety of features and benefits that make them indispensable for a wide range of industries.

Main features of REVO C power controllers

CD Automation’s REVO C power controllers are highly reliable, characterised by a robust design and exceptional operating efficiency. They are designed to be highly flexible and versatile, with a wide range of sizes and capacities from 30A to 2100A, both single-phase and 2PH and 3PH, to control three-phase loads.

Thanks to their advanced microprocessor, these SSRs are universal and fully configurable via software.

A distinguishing feature of REVO C power controllers is their extensive connectivity. They are compatible with the most popular fieldbuses. In addition, it is possible to configure inputs, firing and control modes via personal computer with the CD Automation configuration software or via smartphone, thanks to the CD Automation APP. Both, APP and software, are available free of charge.

With the purchase of a REVO C device, you not only get a high-quality product, but also CD Automation’s experience and know-how to support your application.

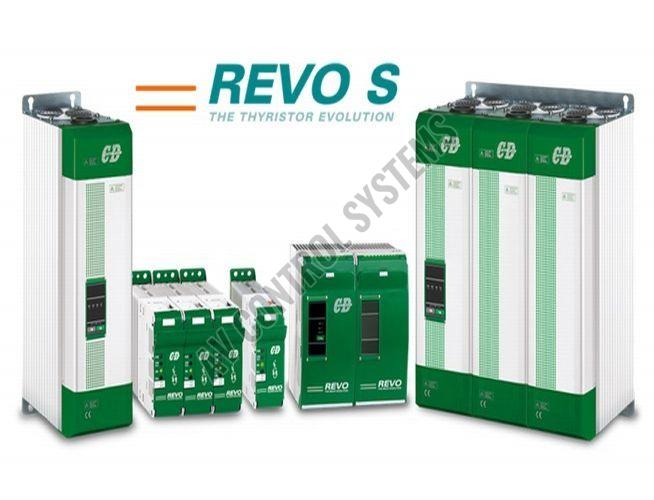

Our 3.5 to 800A SSRs in the REVO S range are designed to offer reliable and versatile solutions for temperature control and power regulation in a wide range of industrial applications.

Main features of REVO S Solid State Relays

REVO-S Static relays are characterised by high precision and reliability in temperature control, ensuring optimal operation in all situations. The compact and robust design allows for quick and easy installation, while the wide range of available voltages and currents enables adaptation to different application requirements. With advanced diagnostic and monitoring functions, these power units ensure the safety and energy efficiency of the system. In addition, the REVO S SSRs’ intuitive user interface and flexible programming make it possible to optimise and customise control to each customer’s specific needs.

• The family includes 1-2-3 phase units
• Nominal voltage 480-600-690V
• Input: SSR or Analog
• Firing: Burst Firing (Fast Zero Crossing)
• Heater Break: Alarm to diagnose the partial or total break of the load or the short circuit of the thyristor
• Can be used in simple applications where communication is not required
• Fuse and fuse holder below 40A
• Fixed fuses from 60 to 800A
• Internal fuses reduce wiring time and cabinet size
• 100 KA Short Circuit Current (SCCR) tested
• CE and cUL approvals

Application areas for REVO S Solid State Relays

REVO S power controllers are ideal for a wide range of industries, including:

• Chemical and petrochemical industry
• Glass and ceramics industry
• Heat treatment processes and industrial furnaces
• Automation and plastics industry
• Food and Beverage Sector
• Semiconductor Manufacturing and Materials Technolog

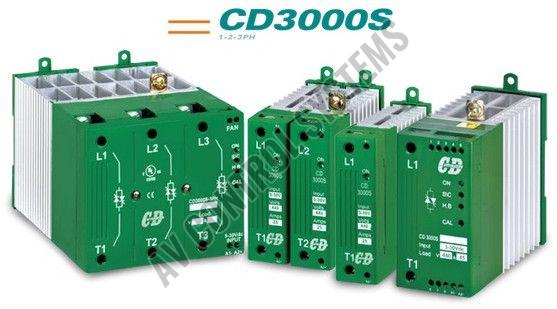

Feature

• Thyristor units up to 90A

• Applicable for resistive loads and infrared lamp

• Zero crossing firing available with logic input signal (SSR)

• Constant current drain with SSR input

• Analog input 4÷20mA or 0÷10V with burst firing 4, 8 or 16 cycle at 50% power demand, is available as an option from 35A to 90A

• Heater break alarm (HB) to diagnose partial or total load failure and short circuit on thyristor. Available as an option from 35A to 90A

• Side by side mounting

• Special design for heatsink with high dissipation

• IP20 protection

• Comply with EMC specification CE and cUL

In its most basic form, a thyristor has three terminals: anode (positive terminal), cathode (negative terminal), and gate (control terminal). The gate controls the flow of current between the anode and cathode. The primary function of a thyristor is to control electric power and currentby acting as a switch.

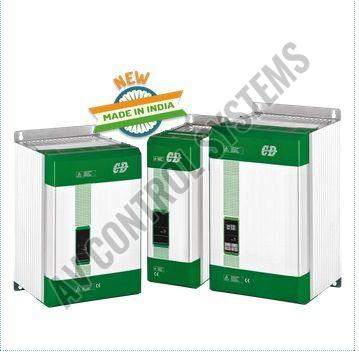

REVO I is a high reliability universal power regulator that has an advanced microprocessor that makes it universal and completely configurable via software. 2PH from 100A to 700A, 3PH from 100A to 500A.

Technical Specification

• Operating Temperature: 0-40°
• Voltage Power Supply: 480V & 600V Max.
• Auxiliary Power Supply: 110V / 220V / 415V AC
• Fan Voltage supply: 230V ±15% as a standard and 110V on request
• Analog Input 1: Primary reference - Current Input 0-20mA / 4-20mA - Voltage Input 0-10V - Potentiometer Input 10K Ohm min
• Analog Input 2: External feedback, Setpoint
• Digital Input: Two optoisolated digital input (12/24V DC), for Enable, SP AI1/ AI2, local / remote, heater bakeout, Alarm reset
• Alarm Digital Output: Heater Break, Short circuit, SCR over temperature, watchdog - Relay Output
• Firing: Burst firing up to 255 Burst / Zero Cross over firing
• Control Feedback Mode: V/ V2/ I/ I2/ Vxl
• Fuses: High speed Semiconductor fuses fitted Internally
• Mounting: Panel mounting
• Protection: IP20

In industrial applications, efficient and reliable power control is essential to ensure optimal and safe machine operation. CD Automation’s REVEX power controllers are the ideal solution to effectively manage these needs. Using state-of-the-art technology and innovative design, these power controllers offer a range of advanced features to manage and monitor power distribution in industrial applications. Whether you need precise power control for your machinery or are looking to improve the overall energy efficiency of your plant, REVEX power controllers are designed to offer solutions tailored to your specific industrial needs.

Main features of REVEX power controllers

REVEX power controllers from CD Automation are designed with a focus on innovation, efficiency and reliability. These high-tech devices provide high-precision power control for various types of industrial applications.

The main features of REVEX power controllers include:=

• 30A to 280A for 1-2-3PH units (30A-210A for 3PH)
• Voltage range 480 to 600V
• Input signal in digital mode, no link jumpers inside
• Firing mode: Single cycle, Half cycle, Burst firing, Phase Angle, Delayed Triggering, different types of adjustable ramp
• Control Mode (V, V2, I, I2, VxI)
• Communication RS485 with Modbus® protocol std.
• Two Analog input
• Two Digital input
• USB port to program REVEX, should you ever need to re-program from your ordered configuration
• With the units already programmed you can simply switch On and Go
• Thyristor Configurator Software for simple configuration
• Customisation of REVEX based on the Code requested by the customer
