Lighting Pole

Our product range contains a wide range of 20 Meter High Mast Lighting Pole, 25 Meter High Mast Lighting Pole, 30 Meter High Mast Lighting Pole, 9 Meters Upto 30 Meters High Mast Lighting Pole and 16 Meters Polygonal High Mast Pole

20 Meter High Mast Lighting Pole

₹ 1.25 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Height 20 Meters
Top Diameter 150 Mm
Bottom Diameter 410 Mm
Top Thickness 3 Mm
Bottom Thickness 4 Mm
Standard Approval IS 875:1987

Suitable for 180/hrs Wind Speed, Section: 2, 20 Mtrs Hot Dip Galvanised Highmast .system in Two Parts. with all Accessories.like- Headframe, Latern, Carriage, Compensator, Wire Rope, Winch Bracket, Winch, Motor, Foundation Bolts, Trailing Cable, Rest Clamp Etc.

View Complete Details

Ask Latest Price & Details

25 Meter High Mast Lighting Pole

₹ 1.80 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Material Steel
Diameter Top 150mm
Diameter Bottom 530mm
Thickness Top 3mm
Thickness Middle 4mm
Thickness Bottom 5mm
Weight 1000kg
PCD 650mm
Foundation Bolt Size 25mm X 1200mm

Supply of 25 Mtr. High Mast Lighting Pole (IS 875) suitable for 180/hrs wind speed, Section: 3 , Supply of foundation bolts along with nuts, washers, anchor plate and common template.

View Complete Details

Ask Latest Price & Details

30 Meter High Mast Lighting Pole

₹ 1.95 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Material Steel
Color Gray
Section 3
Top Diameter 530 Mm
Bottom Diameter 150 Mm
Thickness 5, 4, 3 Mm
Number Of Foundation Bolts 12
Length Of Foundation Bolt 850 Mm
Standard Approval IS 875:1987

Supply of 30Mtr.High Mast Pole Hot Dip Galvanised, with all accessories etc., suitable for 08 to 12 luminaries.

View Complete Details

Ask Latest Price & Details

9 Meters Upto 30 Meters High Mast Lighting Pole

₹ 1.80 Lakh / Set Get Latest Price

Brand Name ALES
Height Upto 30.5 Meters
Material HOT DIP GALVANISED
Color Light White
Application Lighting Poles

We are a leading manufacturer offering ALES high mast lighting poles, reaching heights of up to 30.5 meters. Crafted from hot dip galvanized material in a sleek light white color, our poles are designed for durability and longevity. Ideal for illuminating large areas such as stadiums, parking lots, and industrial sites, our high mast lighting poles provide reliable and efficient lighting solutions. Trust ALES for high-quality, sturdy, and corrosion-resistant lighting poles that meet your commercial and industrial lighting needs.

View Complete Details

Ask Latest Price & Details

16 Meters Polygonal High Mast Pole

₹ 75,000 - ₹ 1.35 Lakh / set Get Latest Price

Min. Order (MOQ) 1 set
Certification CE Certified, ISO 9001:2008
Application OUTDOOR
Color White
Brand Name BLCC
light shape Rectangular, Square
Power Source Electrical
Power 200wt
Condition New

Quotation of LED High Mast Lighting System CUSTOMIZED
S.No.	DESCRIPTION OF EQUIPMENTS /ACTIVITIES	QTY	UOM	UNIT (INR)	TOTAL RATE (Rs.)	GST (%)	TAX (INR)	TOTAL AMOUNT (Rs.)
1	Supply of 16 Mtr. High Mast Lighting Pole (IS 875)suitable for 180/hrs wind speed, Supply of foundation bolts along with nuts, washers, anchor plate and common template.Section : 2, Dia : Top: 150mm, Bottom : 360mm, PCD: 590mmThickness : Top: 3mm, Bottom : 4mmApproved: IS 875:1987	1	set	182500	182500	18%	32850	215350
2	Foundation Structure & accessoriesLength of foundation Bolt: 750mm long, X 25mmNo. of foundation Bolt: 08Nos.	1	set
3	Supply of LED Flood Light: 200 WATT (LED MAKE-PHILLIPS)High Efficacy: >105 lm/WVoltage Operating Range : 140 V - 270 V Temperature operating range:-10 C to +50 CSurge Protecion: 4 kV driver builtin surge protections and additional 10 kV surge protecion device.Warranty : 2Years	6	Nos
4	Feeder Panel Box 4POLE MCB, Aviation Light	1	Nos
5	Civil foundation : M 20, Inclusive( JCB, LABOUR, EXECUTION, MATERIAL FOR CIVIL WORK, IRON, HOTEL, FARE, TRAVEL EXPANSE OF ENGINEER) ()	1	Nos
6	Erection : without Hydra	1	Nos
TOTAL AMOUNT								215350

Additional Information:

Payment Terms :

Packaging Details : loose item excep LED FLOOD LIGHT

Delivery Time : 2

View Complete Details

Ask Latest Price & Details

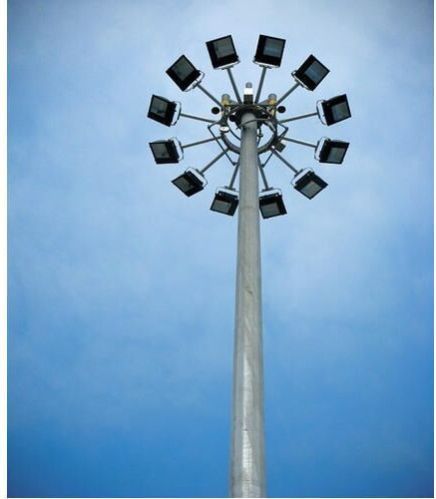

Polygonal High Mast

₹ 65,000 - ₹ 75,000 / Piece Get Latest Price

Min. Order (MOQ) 01 set
Height 12 M
Pole Type Round
Material Aluminium
Lighting Type LED
Usage/Application Highways
Surface Finishing Hot Dip Galvanised
Color White

We offer a high-quality Polygonal High Mast with a height of 12 meters, made of durable aluminium material. The round pole design ensures stability, while the LED lighting provides energy-efficient illumination. Ideal for highways, the mast features a hot-dip galvanized surface finish for long-lasting protection. The white color adds a sleek look to the surroundings. As a leading Manufacturer and Supplier, we provide reliable and efficient high masts for various applications.

Additional Information:

Payment Terms : D/P

Delivery Time : 7 Working days

View Complete Details

Ask Latest Price & Details
