Dryers

We offer the best product range of Automatic Veneer Roller Dryer and Multi Layer Mesh Belt Dryer.

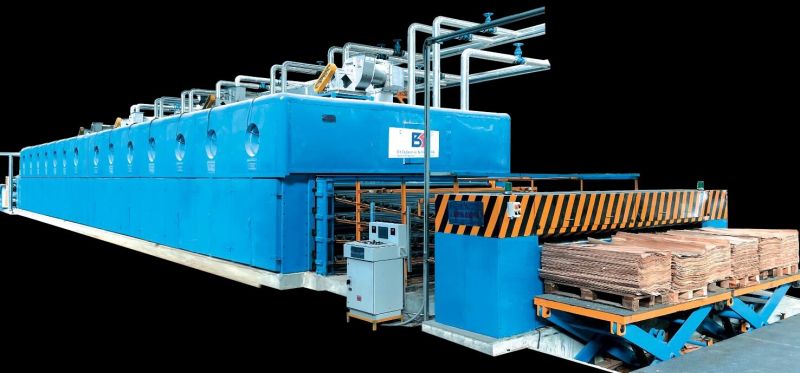

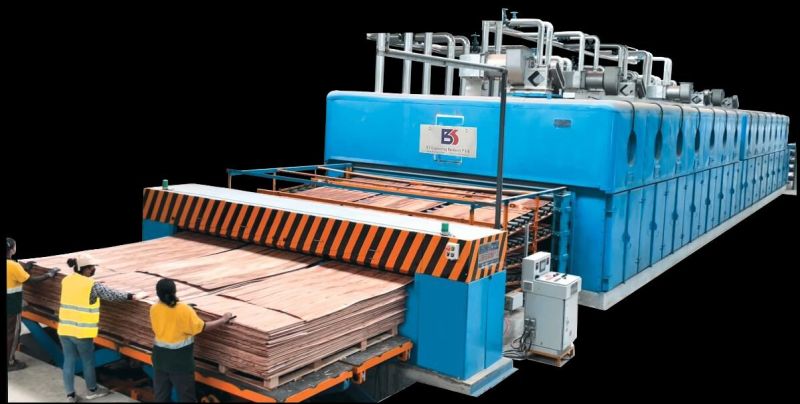

Automatic Veneer Roller Dryer

Automatic Veneer Roller Dryer
  • Min. Order (MOQ) 1 piece
  • Driven Type Electric
  • Automatic Grade Automatic
  • Certification CE Certified
  • Country of Origin 220V, 440V
  • Number Of Flower Veneer Dryer
  • Country of Origin India



This is Semi-Automatic Veneer Feeder for Dryer.
The Veneer palletstobe Placed by Fork Lift to 2 Nos. Scissor lifts at Auto - Feeder end. Once the veneer pallets Placed on Scissor Lift, 3 no worker can start Veneer feeding. Once the top pressing roller is pressured down on the feeding roller by pneumatic cylinder, the Automatic Veneer Feeder Unit puts the veneers in respective decks. The Veneer Feeder unit moves up and down by help of Hydraulic Cylinders stops at desired levels by the help of Sensors / encoders PLC+HMI of the Decks. Power requirement: 2 Hp for Feeder, 15 Hp for Hydraulic Station &2 Nos. Scissor Lifts. Suitable for Veneer thickness 1–4mm. Machine Length; 4600mm, Width: 1200mm, Height: 1490mm.



Technical Data

Technical Data Material of Construction
Steel Roller 2 No. OD 216mm x 4655mm Heavy Steel Roller.
Snubber Rollers 2 No. 195mm x 4600mm Synthetic High-Density Rubber.
Feeder Roller Power 2.0 H.P. For Feeder Roller.
Hydraulic Station Power Very Heavy-Duty Power-Pack of 15 H.P. For Pump for Synchronized Operation of Scissor Lift & Feeder Unit Cylinder Piston Movement.
Control Panel PLC+ HMI based supported by Sensors / Encoders etc.
Dimensions of Machine Width 1200 mm x Height 1490 mm x Length 5800.



View Complete Details
Ask Latest Price & Details

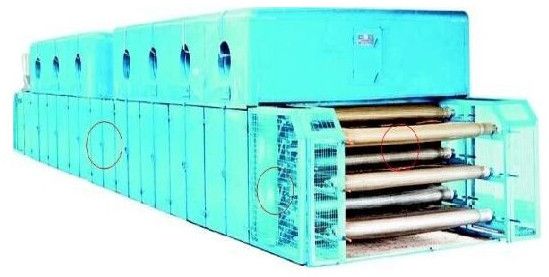

Multi Layer Mesh Belt Dryer

Multi Layer Mesh Belt Dryer
  • Min. Order (MOQ) 1 Piece
  • Material Iron
  • Finishing Polished
  • Power Source Electric
  • Automatic Automatic
  • Country of Origin 220V
  • Number Of Flower Belt Dryer
  • Country of Origin India



Band Dryer with SS-304 Band and Auto Alignment of Board
Continuous conveyor Band Dryer is Ideal for drying thin Face Veneer, Sliced / Peeled Decorative Veneers,  PF Resin Impregnated Core Veneers, Bamboo Mat/ Curtain etc. The machine has stainless steel Bands or
Conveyors for rust-free operation. Each deck has a set of pressing Band to keep the dried material in portion and prevent wear and tear. Double set of Jet Boxes provide uniform drying all along the length of the Dryer.
The Dryer has extended feeding section to enable proper arrangement of the materials during feeding. The Dryer is supplied with specially designed Alloy Fan and Dyno Drive for variable feed speeds and Band
Tensioning with Auto Alignment System along with separate desk Feeding & Discharge Conveyors. Standard Models of Band Dryers are available in 4 section 3 deck, 5 section 3 decks, 8 Section 3 deck, 10 Section 3 deck. Technical Data – 10’ / 2750mm Standard Band Width MESH / BAND Dryer for Thin Veneer





Technical Data

Mesh Dryer Steam  Kg / Hrs

Thermic Fluid

K Cal / Hrs.

 Power HP / KW CBM
6 Section 3 deck 1200 5,00,000 45 / 33.5 40
7 Section 3 deck 1400 6,00,000 50 / 37.3 50
8 Section 3 deck 1600 7,00,000 55 / 41.0 65
10 Section 3 deck 1800 8,00,000 70 / 52.2

100
