Our Products
We offer the best product range of Roller Veneer Dryer Machine.

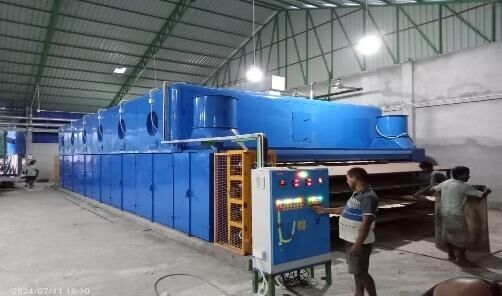

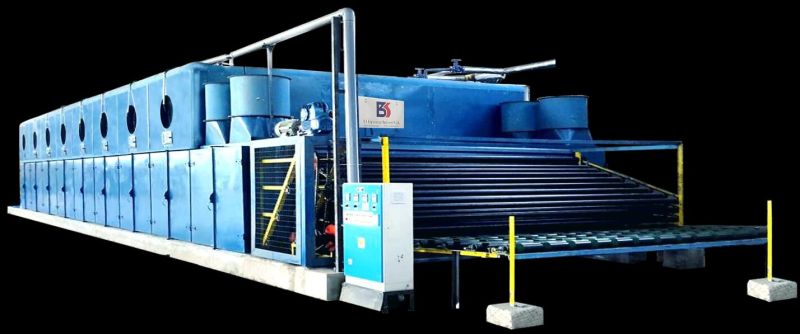

The Roller Veneer Dryer Machine is a semi-automatic machine with a capacity of 80-90 CBM/Hr, designed for drying core veneer. It uses thermic oil or steam as its heating resource and is made in India.
TECHNICAL DATA – 15 Ft (4.6M) ADVANCE MODEL ROLLER VENEER DRYER
| DRYER MODEL | Dryer Length (Ft) | Roller Size Length OD | Drying Capacity in 24 Hrs. for 1.8mm Thick Green Veneer** Thermic Fluid Steam (Sqft) (CBM) (Sqft) | Power (HP) STD ADV | Requirement of Thermic Steam (Kcal/Hr) (Kg/Hr) |
| 6 Section 4 Deck | 56 | 4600-114 | 225000 - 38 - 190000 |
38-52 |
700000-1.5 Ton |
| 8 Section 4 Deck | 80 | 4600-114 | 330000-55- 280000 | 50-67 | 1000000-2.5 Ton |
| 10 Section 4 Deck | 97 | 4600-114 | 420000-70- 380000 | 65-85 | 1200000-3.0 Ton |
| 12 Section 4 Deck | 130 | 4600-114 | 500000-80-450000 | 78-96 | 1400000-3.5 Ton |
| High Efficiency Dryer with Auto Feeder 12 Section 4 Deck | 120 | 4600-114 | 600000-100-Not Suggested | 140 | 1600000-N. A |
*5.8 M Wide Veneer Dryer Also Available. **Input Moisture: 40% - 50% Output Moisture 6% - 8%
| Features | Advantages |
| Auto Removal of Humidity | Remove Excess Humidity to maintain required Humidity Level for proper Quality Drying. Stops Loss of Hot Air and Increase Productivity by 8- 10%. |
| Auto Speed Control of Dryer Conveyors based on temperature Variations | Incresaes Overall Productivity Per Day in 24 Hours running period with standard Drying & avoid Over / Under Drying of Veneer. |

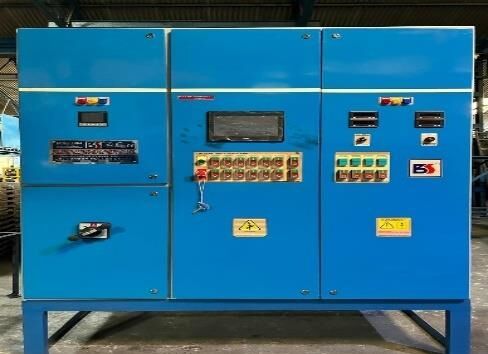

| Production and Energy Data Log | PLC & HMI based Monitoring system helps Management to Monitor Overall Performance and Down Time. |
| Individual Dryer Conveyor Deck Speed Control | Can Control Speed for Full Core Veneer & Fail Core Veneer Feeding. |
