Cotton Ginning Machine

Twin Auto Regulator

Benefits & Features :

  • Robust construction; longer life.
  • Form an integral part of seed cotton distribution system to gins.
  • Considerable saving in labour cost.
  • Available in different models for specific requirements.
  • Programmed to ensure continuous feeding to gins for greater productivity.
  • Variable feed rates for specific requirements.
  • Supplied with high quality electrical accesories and dust proof sensors for efficient performance.
  • Optimizes ginning performance
  • Made with superior technical know how
  • Robust construction

Technical Specification

TYPES Special Extra Long Jumbo
Connected total power 0.25 HP 0.25 HP 0.25 HP
Capacity (Kgs /Hr) of Seed Cotton * 200 Kg 300 Kg 400 Kg
View Complete Details

Air Separators

  • Min. Order (MOQ) 1 Piece
  • Finishing Powder Coated
  • Machine Weight Customised
  • Packaging Type Customised
  • Pressure Customised
  • Usage Cotton Industry
  • Specialities Customised
  • Dimension (LxWxH) Customised
  • Type Air Separator
  • Brand Name Bajaj
  • Material Mild Steel
  • Shape Customised
  • Certification ISO 9001:2008 Certified
  • Color Tan
  • Voltage 380V
  • Condition New
  • Power Customised
  • Driven Type Hydraulic
  • Connection Type Customised
  • Phase Three Phase
  • Warranty 1 Year
  • Country of Origin India
  • Corrosion Resistance Yes
  • Operating Type Automatic
  • Thickness Customised
  • Operating Temperature Customised
  • Frequency Customised
  • Production Capacity 15
  • Accuracy Customised
  • After-Sales Service Provided Yes
  • Flow Rate Customised
  • Noise Level Customised

To furnish the diverse requirements of our clients we are involved in manufacturing, supplying and exporting a wide range of Air Separator with Vacuum Wheel. These are manufactured using best quality material which we sourced from the trusted and reliable vendors of the market. These have spiked cleaning cylinders across individual round grid bars ensure gentle treatment and a free flow of seed - cotton through the machine, an adequate opening of cotton and removal of all fine trash including dust, sand, leaf, pepper, and pin before they get embedded in the cotton.

Features:

  • Robust Body
  • Simple Operations
  • Easy Maintenance
  • Interchangeability of Spares
  • Less Power Consumption
  • Higher Output
  • Higher Profits

Additional Information:

Payment Terms : D/A

Delivery Time : 7 Days

Technical Specification

TYPES Raw Cotton Lint Cotton
Models 700X1200 700X1500 1000X1800 700X1200 1000X1500 1000X1800
Connected total power 3 HP 5 HP 5 HP 3 HP 5 HP 5 HP
Capacity (Kgs /Hr) 3800 4500 6000 1000 1500 2000

PDF


Download Detail File : Click Here
View Complete Details

Cotton Ginning Machine Magnum Model

  • Min. Order (MOQ) 2 Set
  • Type Roller Ginning Machines
  • Certification ISO 9001:2008
  • Application Cotton cleaning
  • Weight Customised
  • Color Tan
  • Voltage 380V
  • Condition New
  • Rated Power Customised
  • Automatic Grade Automatic
  • Driven Type Electric
  • Warranty 1year
  • Country of Origin India
  • M/C Bolt Centre 1637x760 mm
  • M/C Centre (min.) 2637 mm
  • Production capacity (Lint)* 95 to 140 Kgs/Hr
  • Processing Capacity (R/C) 265 to 430 Kgs/Hr
  • Electric Motor 5 H.P. 132 M Frame
  • Flat Length 1521 mm
  • Space b/w Row (min. c/c) 3660 mm
  • Operating Speed 950 /1000 RPM
  • Driving V-Belts 2 Nos. ‘B’ Section
  • Bearings (Need Lubrication) 7 Nos.
  • Bearings (Lubrication Free) 14 Nos
  • Lubrication (Grease) 75 Gms/8 Hr
  • Gears Helical
  • Seed Discharge Slides / Vertical
  • Removal of Cotton Lint Front & Rear
  • Min Distance B/w M/c 1000 mm
  • Rotation of Machine Pulley Clockwise
  • Autofeeder RPM 35 - 40
  • Feeding System Mechanical/ Pneumatic Manual
  • Bearings 14
  • Lubrication/(Grease) 20 Gms/ 8 hrs
  • Storage Capacity 45-60 kgs

Highest out Turn of Lint than other Ginning System. Cleaner Seeds with minimum Cotton Linter on it.



We have been awarded the “Largest and modern cotton ginning & pressing machinery manufacturer in India” by the hands of then Hon’ble Union minister of textile Govt. of India Mr. Shankersinh Vaghela.



Why MAGNUM DR ?

  • Increased leather roll diameter
  • 14 sealed / Pre greased bearings
  • Only 3 greasing points
  • Improved beater housing for easy setting
  • Adequate weights on leather roll for higher production
  • Use of superior material for highest strength of spare parts
  • About 50% lower vibration
  • Magnum Machine design is compatible for use of normal greasing bearing as all 2RS bearing area has provision for fitment & use of normal greasing bearing (in emergency case)
  • Highest production in same size DR Machines
  • Less Power Consumption per unit of production
  • One to one replacement on Golden Jubilee/ Ultra models
  • Less man power as less greasing points
  • Longer wear life of leather roller
  • Interchangeability of spares
  • Significantly higher profits
  • Robust body
  • Simple operations
  • Lustrous lint fiber production Machine
  • Improved autofeeder for better performance
  • Prompt after sales service



Over 100, 000 Bajaj Double Roller Ginning Machines are operating throughout India and various other countries like Bangladesh, Egypt, Indonesia, Kenya, Madagascar, Myanmar, Nepal, Nigeria, Peru, Shri Lanka, Tanzania, Uganda, Zambia, Zimbabwe etc.



BENEFITS

  • Protects Fibre Quality ; Gives Production of Clean ; Lustrous Cotton Lint.
  • Works efficiently ; reduces cost and Adds to profitability.
  • Engineering experiences and expertise combined to ensure lowest operational and maintenance cost.
  • Consumes less power.
  • All gears, connecting rod, head, beater arm, swing lever etc. are made of high Nodularity ductile iron.
  • All rotating parts are provided with precision bearings to reduce friction for optimum efficiency.
  • Connecting housing is provided with heavy duty self aligning roller bearing.
  • Leather roller shafts are interchangeable and if one side of the roller is worn out, It can be reversed.
  • Lint output remains uniform on full length of the rollers.
  • Moving parts are housed in dust proof gear box for smooth running.
  • Lubrication is pressure fed, dust proof greasing system.

Additional Information:

Payment Terms : D/A

Delivery Time : 7 Days

PDF


Download Detail File : Click Here
View Complete Details

Model 9000 Extractor

  • Weight (5670 Kg) 12, 500 Lb.
  • Extractor-feeder Motor 15 Hp, 1800 Rpm or from Gin (not Included with Machine) Saw Shaft
  • Feed Motor 3/4 HP, 1800 RPM, 230/460 volt, 3-phase 60 Hz, TEFC Frame 56C (wire for 230 volt)
  • Gear Reducer Grant, 30:1 Ratio, Stf 225 Worm Gear W/standard Length Shaft
  • Four Saw Cylinders 16 1/2″ Od, 95 5/8 Long, 160 Saws 5/8″ Wide
  • Two Doffing Cylinders 11 5/8″ Od, 95 5/8″ Long
  • Two Feed Cylinders 5 3/4″ Od, 95 5/8″ Long, 6 Vanes
  • Four Spiked Cylinders (ls-1) 110 Volt, 30 Mm, 3/16″ Sensing Distance, Led, 9 Sec. Start Up Delay
  • Length Inside (2438 Mm) 96 In.
  • End of Shafts (3276 mm) 129 in.
  • Overall (with covers) (3657 mm) 144 in.
  • Height (2337 mm) 92 in.
  • Width : Front to Back Rear Doors Closed (2426 mm) 95 1/2″

Designed for improved fine trash removal and enhanced single locking. This BAJAJ CONEAGLE Golden Eagle feeder has shown superb test results in all areas of its application. The Model 9000 is the result of an extensive research and development program and on-site testing.



A push-button control panel, mounted on the feeder, controls feeder load or ginning rate and may also be operated from the master console. This panel contains eight annuciator lights for indicating status of the ginning operation. An AC inverter drives the 3/4 hp feed motor for ease of control and operations. A dual set point meter controls capacity of inning through current load on the gin motor. The gin and feeder operations are synchronized to prevent over feeding or under feeding. Motion detectors on the feeder and lint cleaner automatically stop the ginning operation if the cotton flow is interrupted. The standard drive for the Model 9000 is a 15 hp, 1800 rpm motor*.



Flow of Cotton

As seed cotton enters the Model 9000, it is first exposed to four spiked cleaning cylinders. The cotton passes over the top of these cylinders and is then conveyed between them and the inclined grid section which allows for improved fine trash removal and single locking. These spiked cylinders are the same type as used in our 96″ BAJAJ CONEAGLE Impact Cleaner.



Once through the inclined grid section, cotton is carried to four 16 ½” channel saw cylinders, one of which functions as a reclaimer. The flow of cotton through the tested combinations of brushes, control bars and grid sections allows for excellent hull, stick and additional fine trash removal and further enhances the opening of seed cotton locks for improved ginning. Two doffing cylinders transfer the seed cotton from cleaning cylinders to the feeder apron.



Maintenance Considerations

Lockable, hinged fiberglass covers provide a clean design while allowing access to drives, bearings and adjustment points. The covers need only be opened, not completely removed, for repairing cylinders and other components. Segmented heads allow each cylinder to be removed independently without completely disassembling the machine.



Other features include 5 ½” glass windows in the heads to aid adjusting brushes, grids, control bars and doffers. Two full width rectangular windows on front of the feeder allow viewing the flow of seed cotton.

PDF


Download Detail File : Click Here
View Complete Details

Super III Stick Machine

Shown with 24” vacuum – Vacuum, ductwork, and supports are not included with the Super III



The Super III is unequalled for bulk removal of sticks, hulls and leaves from machine picked or stripped cotton. Cotton entering the machine is directed to two large extracting cylinders and a third saw cylinder cleans and reclaims excess cotton from the main cleaning cylinders.

The efficient extraction of foreign matter greatly reduces the wear and damage to other ginning equipment.



The Super III is the practical, performance proven machine for better cleaning at high capacity and producing quality sample on all types of cotton.



The Super III installed in the gining plant assures more effective and efficient operation of the machinery processes that follow. it is designed to operate at capacities equal to the overall installation requirements.



Profit – Making Features :

  • Super III sling-off action assures no restriction of cotton flow for high capacity.
  • Super III can be installed in existing gin outfit with minimum engineering and rearrangement.
  • Continental Eagle precision manufactured temperhardended channel saws on dynamically balanced cylinders.
  • Wire brushes set cotton on saw cylinders.
  • Bar grids designed for more effective stick removal-easily adjusted to saw.
  • High speed doffing cylinders remove cotton from 16″ saw cleaning cylinders.
  • Lower saw cylinder reclaims cotton-cleans as effectively as upper cylinders.
  • Two large doors on back of Super III provide easy access for maintenance.
  • Metal doffers for long life.
  • Minimum maintenance.
  • Built-in by-pass for cleanly picked cotton.

Technical Specification

MODEL 48” 60” 72” 96″ 120”
D.R. Gin Golden Jubilee 18 D.R. Gin 36 D.R. Gin 48 D.R. Gin Only for saw gin Only for saw gin
161 SAW GIN- - - 1 0
201 SAW GIN- - - 0 1
Width 48” (1220mm) 60” (1524mm) 72” (1828mm) 96″ (2438.40mm) 120” (3048mm)
Capacity 10-12 BPH (170) 20-22 BPH (170) 28-30 BPH (170 Kg) 20-24 BPH (227 Kg) 25-30 BPH (227 Kg)
Channel Saws diameter (Three) 16-1/2″ (419mm) 16-1/2″ (419mm) 16-1/2″ (419mm) 16-1/2″ (419mm) 16-1/2″ (419mm)
Weight 2025 Kg 2551 Kg 3060 Kg 4082.4 Kg 5443.2Kg
Electric Motor 12.5 HP 1440 RPM 15 HP 1440 RPM 17.5 HP 1440 RPM 20 HP 1440 RPM 25 HP 1440 RPM

PDF


Download Detail File : Click Here
View Complete Details

Model 9120 Extractor

  • Extractor/feeder Motor (not Included with Machine) 25 Hp, or from Saw Shaft
  • Feed Motor 3/4 HP
  • Gear Reducer 30:1 Ratio
  • Four Saw Cylinders 16″ ½” 00 (419.1mm), 119 1/2” long (3035mm)
  • Two Doffing Cylinders 11 5/8″ (295.3mm) 00, 119 1/2″ long (3035mm)
  • Two Feed Cylinders 6 Vanes 5 3/4″ (146mm) 0D, 119 ½” long (3035mm)
  • Four Spiked Cylinders 11″ (279mm) 00, 119 ½” Long (3035mm)
  • Motion Detector (ls-1) 3/16″ (4.76mm) Sensing Distance, Led, 9 Sec. Start Up Delay
  • Length Inside (3048 mm) 120 in.
  • End of Shafts (3711 Mm) 146 1/8 In.
  • Overall (with Cover) (4273 Mm) 168 1/4 In.
  • Height (2336 Mm) 92 In.
  • Width Front to Back (2425 Mm) 95 ½ In. Rear Doors Closed
  • Weight (approximate) (5443 Kg) 12, 000 Lb.

Designed for improved fine trash removal and enhanced single locking. This EagleMax Extractor/Feeder has shown superb test results in all areas of its application. The Model 9120 is the result of an extensive research and development program and on-site testing.



PDF


Download Detail File : Click Here
View Complete Details

Centrifugal Lint Cleaner

  • Discharge Vaccum 2 in. (51 mm) WGNEG Air
  • Velocity 12, 000 Ft./min. (3658 M/min)
  • Mote Opening Variable, Set 1 Inch (25.4 Mm) At Factory
  • Length Inside 96 in. (2438 mm)
  • Overall 120 in. (3048 mm)
  • Width 62-1/8 in. (1578 mm)
  • Height 45-1/2 in. (1156 mm)
  • Weight (approximate) 2500 lb. (1134 kg)

The Centrifugal Lint Cleaner is a flow-through (air-jet type) lint cleaner. Ginned lint is conveyed by air into the cleaner through a constricting duct at a relatively high velocity.



Air and cotton moving through the inlet duct make an abrupt change in direction as they pass across an adjustable mote opening. The heavier trash is ejected through the operating by inertial forces while lint is carried through the cleaner by the airstream.



The amount of trash removed is controlled by the size of the adjustable mote opening. This opening can be adjusted during operation by a handwheel on the exterior of the machine. An external graduated scale having numbers 0 through 10 provides an adjustment reference point. Ejection of trash can be observed through a window on each end or through the door on the front. In the event of a tag forming in the constricting duct, a lever is provided on top of the cleaner to quickly move the mote opening to the full open position.

PDF


Download Detail File : Click Here
View Complete Details

Bucket Elevator

  • Min. Order (MOQ) 1 Set
  • Type Bucket Elevators
  • Shape Customised
  • Certification ISO 9001:2008
  • Application Industrial
  • Color Tan
  • Feature Best Quality, Digital Operated, High Loadiing Capacity, Rust Proof Body, Smooth Function
  • Voltage 380V
  • Condition New
  • Automatic Grade Automatic
  • Power Customised
  • Driven Type Electric
  • Warranty 1year
  • Lift Height Customised
  • Loading Capacity Customised
  • Lift Weight Customised
  • Country of Origin India
  • Brand Name Bajaj
  • Structure Customised
  • After-Sales Service Provided Yes

Bajaj Bucket Elevators are ideally suited to elevate bulk materials from sluggish to free flowing vertically. These bucket elevators are manufactured for capacities up to 15000 Kg/hr. depending upon the material requirements. Bajaj Bucket Elevators consists of rectangular rigid mild steel housing with a tangential inlet in the bottom section and an inclined outlet in the top section. Bajaj Bucket Elevators are of centrifugal type with rigid seamless mild steel buckets mounted on open ended belts. These are anti static oil repellent in nature. The drive unit comprises of an electrical motor coupled to reduction gear box mounted on the maintenance platforms attached to the top section.

Additional Information:

Payment Terms : D/A

Delivery Time : 30 Days

Technical Specification

  Model I  – 5 TPH Model II – 10 TPH Model III – 15 TPH
Cotton Seed Quantity in Kg /hr. 5000 10000 15000
Power Consumption 3 HP 5 HP 7.5 HP
Bucket Size 8″ 10″ 16″
Type Belt with bucket Belt with bucket Belt with bucket
View Complete Details

Fully Automatic Ginning Plant

  • Min. Order (MOQ) 1 Set
  • Type Cotton Ginning Machine
  • Certification ISO 9001:2008
  • Application Cotton Cleaning
  • Weight 100-1000kg
  • Color Tan
  • Voltage 380V
  • Condition New
  • Automatic Grade Fully Automatic
  • Driven Type Electric
  • Warranty 1year
  • Country of Origin India

Bajaj Steel Provides Fully Automatic Ginning plants are most advanced in the industry where we provide Pre Cleaners, Post Cleaners, Conveying Systems, Automatic Feeding Systems, Overflow Handling, Feed Regulators and PLC’s to synchronize and control many of the processes.

Additional Information:

Payment Terms : D/A

View Complete Details

Vertical Flow Drier

The bajaj-cec vertical flow driertm dries better by doing the right thing at the right time. every ginner knows that cotton can’t be cleaned until it is dried and it cant be dried until it is loosened and fluffed so that hot air can penetrate to every fiber. this drier maximizes these processes.



Seed cotton enters the bajaj-cec vertical flow driertm matted, moist and trashy. as the seed cotton enters, it falls onto the first directional cylinder arranged to break up wads and create a loosened stream of seed cotton. the loosened seed cotton slides down baffles made of long thin fingers, with air spacing between each finger, to another cylinder which throws the cotton in another direction. this alternating action is repeated five more times. it is this action that further creates and maintains a stream of seed cotton, increasing the exposure of the heated air to every fiber, maximizing both effectiveness and efficiency.



There are no shelves, screens or grids to roll and twist the cotton before it is dried. the opening and fluffing by the directional cylinders causes the locks of cotton to literally spring open to increase the drying action of the drier.

  • The directional cylinders are powered by a 10 hp (7.46 kw) motor*.
  • The proven cotton drier that will make the difference.
  • Talk to a ginner that has one!
  • The bajaj-cec vertical flow drier was designed to reduce fan power and heater fuel consumption while increasing air flow and drying capability as well as preserving fiber quality
  • Pressure drop within the drier never exceeds 2″ of water, compared to 12″ for many tower driers. less fan energy is required to move the air through the machine
  • High efficiency means less heat and better fiber quality preservation. customers have reported processing more than 50 bales per hour with a single vertical flow drier with seed cotton moisture exceeding 18%.



Features :

  • No shelves, screens or grids to roll and twist cotton.
  • Directional cylinders break up wads and direct cotton to other cylinders along fingered baffles for even heat distribution.
  • Fluffed cotton allows for uniformed drying of every fiber.
  • Maximizes moisture removal with minimal heat applied.
  • Dramatically improves first stage cleaning machinery efficiency by loosening and fluffing seed cotton.

Technical Specification

MODEL 120″ 96″ 72” 60” 48”
Length 120” (3048mm) 96″ (2438.40mm) 72” (1828mm) 60” (1524mm) 48” (1220mm)
Width 50” (1270 mm) 50” (1270 mm) 50” (1270 mm) 50” (1270 mm) 50” (1270 mm)
Capacity raw cotton per Hrs 14 Ton per Hrs 12 Ton per Hrs 10 Ton per Hrs 6 Ton per Hrs 4 Ton per Hrs
Hot Air Generator- - 500000 kg/cal 200000 kg/cal 200000 kg/cal

PDF


Download Detail File : Click Here
View Complete Details

Industrial Cyclones

  • Min. Order (MOQ) 2 Set
  • Weight Customised
  • Hardness Customised
  • Tensile Strength Customised
  • Load Capacity Customised
  • Breaking Strength Customised
  • Elongation Customised
  • Tolerance Customised
  • Load Range Customised
  • Rope Radius Customised

We Bajaj Steel Industries Limited, Nagpur take this opportunity to introduce ourselves as a company that has achieved global proportions in Cotton Ginning and Pressing technology

Additional Information:

Payment Terms : D/A

Delivery Time : 30 Days

View Complete Details

201 Saw Ginning Machine

We Bajaj Steel Industries Limited, Nagpur take this opportunity to introduce ourselves as a company that has achieved global proportions in Cotton Ginning and Pressing technology
View Complete Details

Stone Catcher

  • Min. Order (MOQ) 1 Set
  • Size Customised
  • Type Dust Remover
  • Material STEEL
  • Shape Customised
  • Thickness Customised
  • Application Stone Removal
  • Color Tan
  • Feature Durable, Easy Cleaning, Eco Friendly, Good Quality
  • Pattern Plain
  • Packaging Type Customised
  • Country of Origin India

Features & Benefits :

  • Available in different sizes.
  • Separate rocks, green bolls and any other heavy objects in the cotton seed.
  • Efficient removal of stones, rocks, green bolls and other foreign particles without considerable pressure loss.
  • Air Tight trap door prevents any pressure loss.
  • Gravity removal of heavy foreign particles, stones, rocks etc.
  • Reduces trash percentage in cotton.
  • No transmission elements needed and hence the operation cost is minimum.
  • Ease of use
  • Maintenance free
  • Robust Construction
  • Protects fibre quality and strength
  • Made with superior technical know how

Additional Information:

Payment Terms : D/A

Delivery Time : 30 Days

View Complete Details

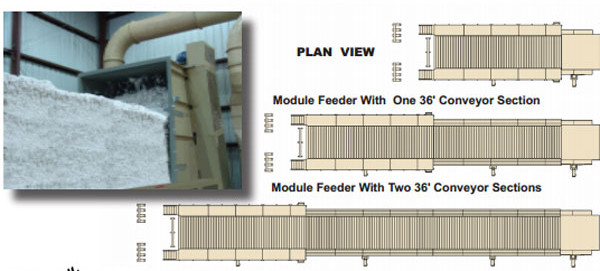

Seed Cotton Dispensing System

  • Min. Order (MOQ) 1 Set
  • Type Cotton Seed Cleaner
  • Certification ISO 9001:2008
  • Application Seed Cleaning
  • Weight Customised
  • Color Tan
  • Voltage 380V
  • Condition New
  • Automatic Grade Automatic
  • Power Customised
  • Production Capacity Customised
  • Warranty 1 Year
  • Drivin Type Electric
  • Country of Origin India
  • Brand Name Bajaj
  • Capacity Customised
  • After-Sales Service Provided Yes

Features :

  • Consistent and uniform opening and feeding
  • Higher productivity
  • Reduced manpower cost
  • Improves the quality of lint
  • Lesser trash content in raw cotton
  • Lesser contamination of seed cotton
  • Robust construction
  • Uniform and adequate feeding at all points
  • Optimizes ginning performance
  • Easy of use
  • Reduced manpower costs
  • Made with superior technical know how
  • Easily accommodated in existing systems

Additional Information:

Payment Terms : D/A

Delivery Time : 30 Days

Technical Specification

Model TYPE 1 TYPE 2 TYPE 3
Power Required 5 HP + 2HP 1191 mm 1061 mm
*Holding Capacity (Kg) 1500 50 to 95 Kgs./Hr 40 to 70 Kgs./Hr
*Feeding Capacity (Kg/hr) 16000 160 to 225 Kgs/Hr 125 to 175 Kgs/Hr
Width 1200 mm 5 H.P. 5 H.P.
Length 6000 mm 2187 mm 2057 mm
Height 2500 mm 1307 mm x 760 mm 1177 mm x 760 mm
Feeding Mechanical by Tractor or Otherwise Mechanical by Tractor or Otherwise Mechanical by Tractor or Otherwise
Variable Speed Provided Provided Provided

TECHNICAL SPECIFICATIONS FOR HORIZONTAL PRE CLEANER & STONE REMOVING ARRANGEMENT

Equipment Horizontal Pre Cleaner Stone Remover
Power Required 2HP 3HP
Width 1200 mm 900 mm
Feeding From Seed Cotton Dispenser From Seed Cotton Dispenser
Variable Speed Provided Provided

PDF


Download Detail File : Click Here
View Complete Details

Stone Remover Cum Hot Box

  • Min. Order (MOQ) 1 Set
  • Size Customised
  • Type STEEL
  • Material Natural Stone
  • Shape Customised
  • Color Tan
  • Feature Durable, Easy To Clean
  • Pattern Plain
  • Condition New
  • Finishing Polished
  • Height Customised
  • Country of Origin India
  • Capacity / hour (Avg) 10, 000 Kgs
  • Feeding System Belt Conveyor
  • Width 1015 mm
  • Length 1150 mm

Salient Features :

  • Virtually 100% stones are removed from seed cotton
  • Eliminates fire risk in ginning
  • Ease of use
  • Maintenance free
  • Robust Construction
  • Protects fibre quality and strength
  • Made with superior technical know how
  • Hot air application for drying of cotton in case of need
  • Enhances life of ginning parts.
  • Enhances ease of ginning, resulting in high productivity.
  • Reduces trash percentage in cotton.
  • Can be used for moisture regulation in the raw cotton before going for ginning.
  • No transmission elements needed and hence the operation cost is minimum.

Additional Information:

Payment Terms : D/A

Delivery Time : 30 Days

View Complete Details

Screw Conveyor

  • Min. Order (MOQ) 1 Set
  • Finishing Powder Coated
  • Width 10-20 Inch, 20-30 Inch, 30-40 Inch
  • Machine Weight Customised
  • Rated Power 1-3 KW, 3-5 KW, 5-7 KW, 7-9 KW, 9-12 KW
  • Packaging Type Wooden Box
  • Loading Capacity 5-10 Kg, 10-15 Kg
  • Usage Moving Goods
  • Specialities Vibration Free, Unbreakable, Scratch Proof, Long Life, Heat Resistant, Excellent Quality, Corrosion Proof
  • Dimension (LxWxH) Customised
  • Type Flexible Screw Conveyor
  • Brand Name Bajaj
  • Material MS
  • Shape Customised
  • Certification ISO 9001:2008
  • Color Tan
  • Voltage 380V
  • Condition New
  • Driven Type Motor
  • Phase Customised
  • Country of Origin India
  • Operating Mode Automatic
  • Corrosion Resistance Yes
  • Speed Adjustable Yes
  • Machine Material Mild Steel
  • Rated Current Customised
  • Frequency Customised
  • Motor Power Customised
  • Technique Customised
  • Accuracy Customised
  • After-Sales Service Provided Yes
  • Noise Level Customised
  • Operating Speed Customised
  • Roller Diameter Customised
  • Conveyor Height Customised
  • Back Length Customised
  • Trough Customised
  • Flight Thickness Customised

Features:

  • Quality tested
  • Precisely engineered
  • Easy to install
  • Robust Construction
  • Long life
  • Maintenance free
  • Uniform and adequate feeding at all points
  • Ease of use
  • Protects fiber quality
  • Made with superior technical know how



Applications:

  • Food processing
  • Pulp and paper
  • Stone, Glass, and Concrete
  • Environmental
  • Petroleum Refining
  • Wood Products
  • Chemicals
  • Rubber and Plastics
  • Primary Metals

Additional Information:

Payment Terms : D/A

Delivery Time : 30 Days

View Complete Details

Cotton Dispensing System

We Bajaj Steel Industries Limited, Nagpur take this opportunity to introduce ourselves as a company that has achieved global proportions in Cotton Ginning and Pressing technology
View Complete Details

Lint Cleaner

Features & Benefits :



  • Removes seeds coats, leafy matter after ginning.

  • Improves lint grade & appearance.

  • Reduces trash content & other contamination.

  • Eliminates micro-dust effectively.

  • Precise design preserves fiber properties.

  • Removes short fiber clusters from ginned lint.

  • Better quality lint yields higher returns.

  • Easy to maintain; Low maintenance cost.

  • Available in different models with different feeding systems for specific requirements.

  • Can be incorporated in pneumatic conveying system for online cleaning.

  • Considerable saving in labour cost.

Technical Specification

  Model I Model II Model III
No. of cleaning cylinders Six Three Four
Width 1200/1500/ 1800 mm 1200/1500/ 1800 mm 1200/1500/ 1800 mm
Type Inclined Inclined Inclined
Cleaning Capacity (Lint) 1200/1500/2000 Kg/Hour 1200/1500/2000 Kg/Hour 1200/1500/2000 Kg/Hour
Connected total power 7 HP 7 HP 7 HP
Bypass Arrangement Provided Provided Provided
Wheel-mounting Yes Yes Yes
Feeding system Mechanical/Pneumatic/Manual Mechanical/Pneumatic/Manual Mechanical/Pneumatic/Manual

PDF


Download Detail File : Click Here
View Complete Details

Battery Condenser

  • Capacity / Hour (avg) 5000 Kgs of Lint
  • Power (Max) 5 HP
  • Height 2100 mm
  • Width 2250 mm
  • Length 2180 mm
  • Weight (approx) 2000 Kg
  • Drum Diameter 40”
  • Optional Accessories I) VFD drive for 5HP motor, II) Panel for VFD

Features & Benefits :



  • Even formation of the lint batt for the press.

  • All rotating parts are provided with anti friction bearings for optimum efficiency.

  • Easy to maintain; Low maintenance cost.

  • High quality wooden rafters for doffing rollers adds to the life of roller.

  • High density Nylon gears used for motion transmission reduces maintenance and optimize smooth functioning.

  • Swinging arms provided to all 4 rollers reduce the thrust and allow better compression of all density lint.

  • Even formation of the lint batt for the press.

  • Optimizes pressing performance

  • Made with superior technical know how

  • Robust Construction

  • Protects fibre quality

PDF


Download Detail File : Click Here
View Complete Details

Raw Cotton Pre Cleaner

Features & Benefits :



  • Protects fiber quality

  • Cleans gently and efficiently

  • Optimizes ginning performance

  • Robust construction; longer life

  • Made with superior technical know-how

  • Reduces maintenance of ginning machines.

  • Removes yellow/ pre-matured bolls, trash, stones and others impurities from raw cotton, there by improving the quality of raw cotton prior to ginning.

  • Increases productivity of ginning machines

  • Reduces load on ginning machines

  • Auto feeding made easy and trouble-free

  • Auto feeder maintenance reduced to minimum

  • Better quality of lint yields higher returns

  • Considerable saving in labor cost

  • Available in different models with different feeding systems for specific requirements.

  • All models can also be wheel-mounted for easy mobility.

Technical Specification

  Model I Model II Model III
No. of cleaning cylinders Four Five Six
Width 1200/1500/1800 mm 1200/1500/1800 mm 1200/1500/1800 mm
Raw cotton cleaning capacity per hour 3500/4500/6000 Kgs. 3500/4500/6000 Kgs. 3500/4500/6000 Kgs.
Power required (max) 4/7.5 H.P. 7.5/10 H.P. 7.5/10 H.P.
Wheel-mounting (optional) Yes Yes Yes
Feeding System Manual/Pneumatic/Manual Manual/Pneumatic/Manual Manual/Pneumatic/Manual
View Complete Details

Raw Cotton Horizontal Pre Cleaner

  • No. of Cleaning Cylinders Eight
  • Width 1200/1500/1800 mm
  • Raw Cotton Cleaning Capacity per Hour 3000/6000/9000 Kgs.
  • Connected Total Power 7 H.P. / 7 H.P./ 9.5 H.P.
  • Operating Speed (at different Rollers) 185 – 300 rpm
  • Wheel-mounting (optional) Yes
  • Feeding System Mechanical/ Pneumatic/ Manual

Features & Benefits :



  • Protects fiber quality

  • Cleans gently and efficiently

  • Optimizes ginning performance

  • Robust construction; longer life

  • Made with superior technical know-how

  • Reduces maintenance of ginning machines.

  • Removes yellow/ pre-matured bolls, trash, stones and others impurities from raw cotton, there by improving the quality of raw cotton prior to ginning.

  • Increases productivity of ginning machines

  • Reduces load on ginning machines

  • Auto feeding made easy and trouble-free

  • Auto feeder maintenance reduced to minimum

  • Better quality of lint yields higher returns

  • Considerable saving in labour cost

  • Available in different models with different feeding systems for specific requirements.

  • All models can also be wheel-mounted for easy mobility.

  • Trash removal can be mechanical/ manual/ pneumatic.

PDF


Download Detail File : Click Here
View Complete Details

Air Separator

Salient Features :



  • Efficient and Gentle separation of material (Seed Cotton & Lint) from air.

  • Optimizes ginning per formance.

  • Robust construction; longer life.

  • Made with superior technical know how.

  • Available in different models with different feeding systems for specific requirements.

  • Removes dust, fine trash & short fibres to good extent.

  • Max suction area for extracting air from material and efficient material discharge at the bottom.

  • Robust Body

  • Simple Operations

  • Easy Maintenance

  • Interchangeability of Spares

  • Less Power Consumption

  • Higher Output

  • Higher Profits

Technical Specification

Types Raw Cotton Lint Cotton
Models 700X1200 700X1200 1000X1800 1000X2100 1000X2400 1000X1500 1000X1800 1000X2100 1000X2400 1000X2700
Power required (max) 3 HP 5 HP 5 HP 7.5 HP 7.5 HP 5 HP 5 HP 7.5 HP 7.5 HP 7.5 HP
Operating Speed 60 RPM 60 RPM 60 RPM 60 RPM 60 RPM 60 RPM 60 RPM 60 RPM 60 RPM 60 RPM
Capacity (Kg/hr) 3800 4500 6000 7500 10320 1500 2000 2500 3440 4200

Technical Specification 01

Types Press House
Models 1000X1200(J) 1000X1500(J) 1000X1800(J)
Power required (max) 5 HP 5 HP 5 HP
Operating Speed 60 RPM 60 RPM 60 RPM
Capacity (Kg/hr) 3000 3800 4500

PDF


Download Detail File : Click Here
View Complete Details

Horizontal Pre Cleaner

  • Type Pre Cleaner
  • Certification ISO 9001:2008
  • Application Cleaning
  • Weight Customised
  • Color Tan
  • Voltage 380V,
  • Condition New
  • Power Customised
  • Driven Type Electric
  • Warranty 1year
  • Country of Origin India
  • Automation Grade Automatic
We Bajaj Steel Industries Limited, Nagpur take this opportunity to introduce ourselves as a company that has achieved global proportions in Cotton Ginning and Pressing technology
View Complete Details

Cotton Boll Opener

  • Width 3 ½’
  • Length 12’
  • Cleaning Capacity / Hour(avg) 600 Kgs Raw Cotton
  • Connected Total Power 5 HP
  • Height from Top of Hopper 5 1/4’
  • Height from Top of Cover 4 1/4’
  • Weight (approx) 750 Kgs

Features & Benefits :



  • Movable

  • Easy to operate

  • Fully automatic

  • Robust construction

  • Maximizes profits



An additional profit machine :



  • Designed to open raw cotton bolls by air turbulence and clean lower grades of cotton by separating dust, leaves immature bolls etc.

  • Most efficient for cleaning zoda, leafy and other lower grades of raw cotton as well as collection from pre-cleaners.

  • Reduces manpower required for sorting, by allowing dust, leaves and immature bolls to fall below through grids with holes of different sizes for separate collection.

  • Opened and cleaned raw cotton delivered at the discharge-end

  • Recovers useful raw cotton from trash cotton collections.

  • No damage to cotton fibre in the process.



Robust Construction :



  • A large capacity fan is provided before inlet to create sufficient air pressure to aerate raw cotton by air turbulence.

  • Large diameter beaters are provided to separate dust, leaves and immature bolls etc. and push the clean raw cotton towards the discharge-end.

  • The grids are made of heavy- gauge steel sheets.

  • The round holes of different- size grids do not get clogged easily.

  • The top cover of the machine is of painted cr sheets to make the machine weather- resistant.

  • The main shaft runs on three heavy-duty ball bearing encased in dust- proof housing to give trouble free service for number of years, with lower power consumption.



Safe and Trouble free :



  • Guarding at the feed-end as well as at the discharge-end has been provided for safety purpose.

  • Totally enclosed by sheet metal with door to collect trash & pre-matured bolls separately.

  • Suitable base for fitting electric motor has been provided to eliminate slide rails.

  • The covers of the machine are tightened by fly-nuts to enable the operator to attend the machine without using spanner.

  • Driving arrangement is totally enclosed.



Optional Accessories



  • Wheel arrangement

  • Elelctric motor

  • Transmission pulley & belt

  • Starter

  • Switch

  • Heavy-duty, four core flexible cable

PDF


Download Detail File : Click Here
View Complete Details

Linter Cleaner

Working principle of Linter Cleaner
Linter is discharged from a cyclone to the top chamber of the LC-410D Linter Cleaner. This chamber consists of two x 3 Meter' long, 500 MM diameter cylindrical beaters operating side by side in 550MM dia. Half round screen sections. Linter enters at one end of one beater, is conveyed to the opposite end and transferred to the opposite beater section. From this point, the Linter is once again conveyed over the screen section for the length the top section. Cleaned Linter discharged from the top section is pneumatically conveyed to the bale press.

Any Linter, which passes through the perforated screen of the top section, along with trash, is discharged into the first of the two pepper sections. These sections are clothed with fine wire mesh for the removal of the very fine hull particles (hull pepper) generated in the saw delinting process. Linter then passes to the reclaim section for final cleaning.The reclaimed Linter is then discharged and may be conveyed to a motes beater or recycled to the Linter cleaner. In addition to the 6 Meters of hull pepper removal screens the, LC410D also incorporates Automatic Screen Cleaning which blows down the entire length of both hull pepper sections with high-pressure air. Manual blow-down and unnecessary shutdown are eliminated. This also provides for consistent length of effective cleaning throughout the daily operations. This blow down system is PLC controlled and can be programmed for both duration & frequency of the air blasts.
Salient features of our Dryer Lint Cleaner
Maximum cellulose yieldCapacity 15 TPD Linter28% greater cleaning surface area for first-pass cleaning than othersAdditional cleaning where needed most; three times the effective pepper section cleaning than the closest competitorReclaim section designed to accommodate any additional shale removal which may be required.Automatic screen cleaning; programmable to specific requirements

<b>Dimensions</b>

Length4050 mm
Height4400 mm
Width1350 mm

<b>Technical Specifications</b>

2 x 500 MM Beaters3 PH , 1000 RPM
Pepper section and reclaim section rolls3 HP, 1000 RPM
View Complete Details

Cotton Module Feeding System

The Bajaj Module Feeder controls the volume of seed cotton conveyed dispersed and fed into the gin and is limited only by the maximum seed cotton feeding capacity of the gin machinery.



The dual drive system allows modules to be quickly conveyed to the dispersing section of the feeder. The conveyor feeding the disperser has a variable speed drive to coordinate the module flow with the capacity of the gin plant. Additional 36’ conveyor sections may be added to increase module storage capacity.



The Company manufactures moving floor feeders, moving head feeders, dump feeders, belt feeders and roller feeders and has been proven the best for feeding all types of module seed cotton into the ginning system.



The new customer requested cost saving Bajaj Module Feeder design features the same proven components of our Standard Module Feeder with only one section of walkways and no module side walls.

PDF


Download Detail File : Click Here
View Complete Details
Tell Us What are you looking for? Will call you back

Contact Us

  • Lalit Kalantri (Bajaj Steel Industries Limited)
  • C-108, MIDC Industrial Area,, Hingna, Nagpur, Maharashtra - 440016
  • https://www.bajajsteel.in
  • Share us via
  • Call 08047018076
