Our Products

We offer the best product range of All Geared Universal Horizontal Milling Machines, RAM Turret Servo Control Precision Milling Machine, RAM Turret Precision Manual Axis Milling Machine, Vertical Machining Centre and AXIS AUTO MACHINES.

All Geared Universal Horizontal Milling Machines

Voltage 220V - 440V
Power 3-phase Power Supply
Subtype Horizontal
Geared All Geared
Speed Variable Speed Control

We offer All Geared Universal Horizontal Milling Machines designed for precision and efficiency. Operating at Voltage 220V - 440V with a 3-phase Power Supply, these machines ensure optimal performance. The Horizontal subtype and All Geared feature provide versatility for various milling tasks. With Variable Speed Control, users can adjust the speed to suit different materials. Ideal for manufacturers seeking reliable and high-quality milling solutions. Upgrade your machining capabilities with our advanced All Geared Universal Horizontal Milling Machines.

Model	M-1B	M-2B	M-3B	M-4B	M-5B	M-6B	M-7B
Working Surface	1200X300	1350X300	1450X350	1650X360	1900X400	2100X450	2300X500
Swivel	± 45°	± 45°	± 45°	± 45°	± 45°	± 30°	Fix
T-Slot Nos. / Size	3/17	3/17	3/17	3/17	5/17	5/20	5/20
T-Slot Centre	60	65	80	90	80	90	95
Dist. From Spindle max/min	350-0	410-0	475-0	500-50	550-50	650-50	650-50
X-Longitudinal Travel	550	700	800	900	1100	1200	1300
Y-Cross Travel	180	220	265	325	450	500	550
Z-Vertical Travel	300	410	475	550	600	650	700
Table Loading Capacity in (kgms)	200	300	500	800	1100	1200	2500
FEEDS
No. of Feeds	9	18	18	18	18	18	18
Range of Longitudinal Feed/min	18-260	18-400	18-400	18-400	13-305	13-305	13-305
Range of Cross Feed /min	18-260	18-400	18-400	18-400	13-305	13-305	13-305
Range of Vertical Feed /min	6-120	3.5-90	3.5-90	3.5-90	2.5-62	2.5-62	4-90
No. Of Rapid Feeds	1	2	2	2	2	2	2
Longitudinal Rapid Feeds / min	900	900,1500	900,1500	900,1500	735, 1065	735, 1065	500, 735
Cross Rapid Feeds/ min	900	900,1500	900,1500	900,1500	735, 1065	735, 1065	500, 735
Vertical Rapid Feeds/min	310	225,365	225,365	225,365	147, 210	147, 210	165, 250

View Complete Details

Ask Latest Price & Details

RAM Turret Precision Manual Axis Milling Machine

Type Milling Machine
Return On Investment Long And Trouble-free
Benefits Hard Workmanship
Head Movement Swivelling And Tilting

Hi Bhambar Ram Turret Milling Machine are specially designed as per the requirement of modern work trends, safety features includes & low cost maintenance to provide long and trouble free return on investment.These machines are an ideal asset for every tool room.The head of machine could be swivelled 45' on either side & tilts 35' towards up and down.The ram can be rotated through 360'.These are a few of the benefits of Hi Bhambar Milling Machines which is a result of hard workmanship from last 5 decades.

Description	RT 1M MANUAL	RT 2M MANUAL
Table Size	1100×300	1300×300
X-Longitutional Travel Manual	525	700
Y-Cross Travel Manual	250	300
Z-Vertical Travel Manual	330	410
Spindle to Table Distance	325	415
T-Slot No. -Width – Centre	3-17-70	3-17-70
All X Y Z Axis	Manual	Manual
No. Of Speeds & Range	8 & 60 to 2350	8 & 60 to 2350
Spindle Taper	R8/ISO 40	R8/ISO 40
Quill Travel (Manual)	127	127
Head Swivel	RxL 90 FxB 45	RxL 90 FxB 45
Ram Travel (Manual)	350	450
Ram Rotate	360	360
Spindle Motor	1.5 HP	2 HP
Feed Motor	1.5 HP	2 HP
Net Weight	1200	1600

View Complete Details

Ask Latest Price & Details

RAM Turret Servo Control Precision Milling Machine

Type Milling Machine
Benefits Hard Workmanship For 5 Decades
Design Modern Work Trends
Control Type Servo Control

Model	RT 1M Auto	RT 2M Auto	RT 3M Auto	RT 4M Auto	RT 5M Auto
Table Size	1100×300	1300×300	1400×330	1600×350	1800×400
X-Longitutional Travel Manual/Auto	525	650	800	900	1100
Y-Cross Travel Manual/Auto	200	235	275	325	500
Z-Vertical Travel Manual/Auto	350	410	500	550	600
Spindle to Table Distance	350	410	500	550	550
T-Slot No. -Width Centre	3-17-70	3-17-70	3-17-80	3-17-80	3-17-90
Table Load (Kg.)	350	550	800	1000	1300
No. Of Rapid / Feeds	1/9	2/18	2/18	2/18	2/18
X & Y Rapid Range & Feed Range	700 (13-200)	720, 1065 (13-300)	720, 1065 (13-300)	720, 1065 (13-300)	720, 1065 (13-300)
Z- Rapid Range & Feed Range	240 (2.5-62)	240,333 (5-100)	240, 333 (5-100)	240, 333 (5-100)	240, 333 (5-100)
No. Of Speeds & Range	8 & 60 to 2350	8 & 60 to 2350	8 & 60 to 2350	8 & 60 to 2350	8 & 60 to 2350
Spindle Taper	R8/ISO 40	R8/ISO 40	R8/ISO 40	R8/ISO 40	R8/ISO 40
Quill Travel (Manual)	127	127	127	127	127
Head Swivel	RxL 90 FxB 45	RxL 90 FxB 45	RxL 90 FxB 45	RxL 90 FxB 45	RxL 90 FxB 45
Ram Travel (Manual)	350	450	500	550	600
Ram Rotate	360	360	360	360	360
Spindle Motor	1.5 HP	2 HP	3 HP	3 HP	3 HP
Feed Motor	2 HP	2 HP	2 HP	2 HP	3 HP
Net Weight in Kg approx.	1500	1800	2800	3400	4000

View Complete Details

Ask Latest Price & Details

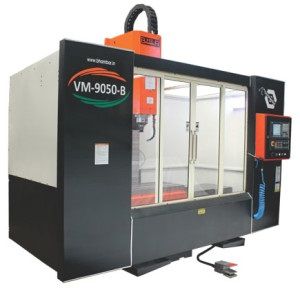

Vertical Machining Centre

Type Industrial Machinery
Voltage 220V - 480V
Power Source Electric
Spindle Speed 8000 - 24000 RPM

We are a leading manufacturer offering an industrial machinery solution with our Vertical Machining Centre. Operating at voltage ranges from 220V to 480V, this electric-powered machine delivers precision and efficiency. With spindle speeds ranging from 8000 to 24000 RPM, our Vertical Machining Centre is designed to meet the demands of various manufacturing processes. Enhance your production capabilities with our reliable and high-performance machinery.

SPECIFICATIONS	UNIT	VM 5030 B	VM 7040 B	VM 9050 B
Table Size	mm	750 x 350	800 x 400	900 x 450
‘T’ Slots/ Width/ Centre Distance	mm	3/20/80	3/20/100	3/20/130
‘T’ Slots Nut Size	mm	M16 Standard ‘T’ Nuts
Maximum Load On Table	Kgs	300	600	800
Distance from Floor to Table	mm	700	775	825
CAPACITY
X-Traverse (Longitudinal)	mm	500	700	900
Y- Traverse (Cross Traverse)	mm	300	400	500
Z-Traverse (Vertical Traverse)	mm	400	550	750
Distance from Spindle Face to Table Top (Min. Max).	mm	100-400	120-550	120-750
Spindle Centre to Column Face	mm	300	400	500
Guide Ways	Type	LM-Roller
