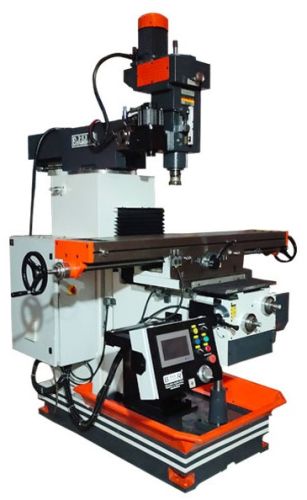

RAM Turret Servo Control Precision Milling Machine

Sold By : Bhambar Engineers

Product Specifications

BenefitsHard Workmanship For 5 Decades
DesignModern Work Trends
Control TypeServo Control
TypeMilling Machine
Supply TypeManufacturer

Preferred Buyer From : All over the world

Product Overview

Hi Bhambar Ram Turret Milling Machine are specially designed as per the requirement of modern work trends,safety features includes & low cost maintenance to provide long and trouble free return on investment.These machines are an ideal asset for every tool room.The head of machine could be swivelled 45' on either side & tilts 35' towards up and down.The ram can be rotated through 360'.These are a few of the benefits of Hi Bhambar Milling Machines which is a result of hard workmanship from last 5 decades.

Model	RT 1M Auto	RT 2M Auto	RT 3M Auto	RT 4M Auto	RT 5M Auto
Table Size	1100×300	1300×300	1400×330	1600×350	1800×400
X-Longitutional Travel Manual/Auto	525	650	800	900	1100
Y-Cross Travel Manual/Auto	200	235	275	325	500
Z-Vertical Travel Manual/Auto	350	410	500	550	600
Spindle to Table Distance	350	410	500	550	550
T-Slot No. -Width Centre	3-17-70	3-17-70	3-17-80	3-17-80	3-17-90
Table Load (Kg.)	350	550	800	1000	1300
No. Of Rapid / Feeds	1/9	2/18	2/18	2/18	2/18
X & Y Rapid Range & Feed Range	700 (13-200)	720, 1065 (13-300)	720, 1065 (13-300)	720, 1065 (13-300)	720, 1065 (13-300)
Z- Rapid Range & Feed Range	240 (2.5-62)	240,333 (5-100)	240, 333 (5-100)	240, 333 (5-100)	240, 333 (5-100)
No. Of Speeds & Range	8 & 60 to 2350	8 & 60 to 2350	8 & 60 to 2350	8 & 60 to 2350	8 & 60 to 2350
Spindle Taper	R8/ISO 40	R8/ISO 40	R8/ISO 40	R8/ISO 40	R8/ISO 40
Quill Travel (Manual)	127	127	127	127	127
Head Swivel	RxL 90 FxB 45	RxL 90 FxB 45	RxL 90 FxB 45	RxL 90 FxB 45	RxL 90 FxB 45
Ram Travel (Manual)	350	450	500	550	600
Ram Rotate	360	360	360	360	360
Spindle Motor	1.5 HP	2 HP	3 HP	3 HP	3 HP
Feed Motor	2 HP	2 HP	2 HP	2 HP	3 HP
Net Weight in Kg approx.	1500	1800	2800	3400	4000
