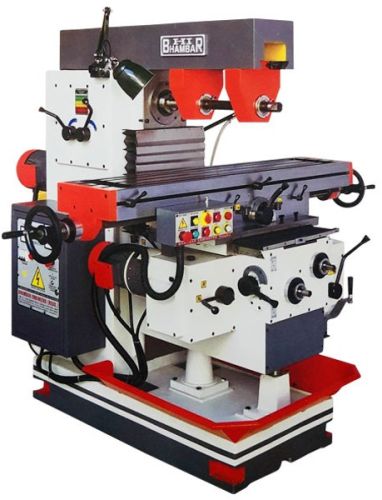

We offer All Geared Universal Horizontal Milling Machines designed for precision and efficiency. Operating at Voltage 220V - 440V with a 3-phase Power Supply, these machines ensure optimal performance. The Horizontal subtype and All Geared feature provide versatility for various milling tasks. With Variable Speed Control, users can adjust the speed to suit different materials. Ideal for manufacturers seeking reliable and high-quality milling solutions. Upgrade your machining capabilities with our advanced All Geared Universal Horizontal Milling Machines.
| Model | M-1B | M-2B | M-3B | M-4B | M-5B | M-6B | M-7B |
|---|---|---|---|---|---|---|---|
| Working Surface | 1200X300 | 1350X300 | 1450X350 | 1650X360 | 1900X400 | 2100X450 | 2300X500 |
| Swivel | ± 45° | ± 45° | ± 45° | ± 45° | ± 45° | ± 30° | Fix |
| T-Slot Nos. / Size | 3/17 | 3/17 | 3/17 | 3/17 | 5/17 | 5/20 | 5/20 |
| T-Slot Centre | 60 | 65 | 80 | 90 | 80 | 90 | 95 |
| Dist. From Spindle max/min | 350-0 | 410-0 | 475-0 | 500-50 | 550-50 | 650-50 | 650-50 |
| X-Longitudinal Travel | 550 | 700 | 800 | 900 | 1100 | 1200 | 1300 |
| Y-Cross Travel | 180 | 220 | 265 | 325 | 450 | 500 | 550 |
| Z-Vertical Travel | 300 | 410 | 475 | 550 | 600 | 650 | 700 |
| Table Loading Capacity in (kgms) | 200 | 300 | 500 | 800 | 1100 | 1200 | 2500 |
| FEEDS | |||||||
| No. of Feeds | 9 | 18 | 18 | 18 | 18 | 18 | 18 |
| Range of Longitudinal Feed/min | 18-260 | 18-400 | 18-400 | 18-400 | 13-305 | 13-305 | 13-305 |
| Range of Cross Feed /min | 18-260 | 18-400 | 18-400 | 18-400 | 13-305 | 13-305 | 13-305 |
| Range of Vertical Feed /min | 6-120 | 3.5-90 | 3.5-90 | 3.5-90 | 2.5-62 | 2.5-62 | 4-90 |
| No. Of Rapid Feeds | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Longitudinal Rapid Feeds / min | 900 | 900,1500 | 900,1500 | 900,1500 | 735, 1065 | 735, 1065 | 500, 735 |
| Cross Rapid Feeds/ min | 900 | 900,1500 | 900,1500 | 900,1500 | 735, 1065 | 735, 1065 | 500, 735 |
| Vertical Rapid Feeds/min | 310 | 225,365 | 225,365 | 225,365 | 147, 210 | 147, 210 | 165, 250 |
