We offer the best product range of Hydraulic Profile Pipe Bending Machine, Hydraulic Surface Grinder (BH-2040), Bandsaw Swing Type, Heavy Duty Lathe (YBX) and CW-M Series Extra Heavy Duty Lathe.
| MODEL | BFP-0 mm |
BFP-1 mm |
BFP-2 mm |
BFP-3 mm |
BFP-4 mm |
BFP-5 mm |
BFP-6 mm |
|---|---|---|---|---|---|---|---|
| Centre to back | 76 | 89 | 95 | 114 | 121 | 197 | 229 |
| Base to Guide | 114 | 127 | 146 | 171 | 184 | 127 | 152 |
| Diameter of Screw | 38 | 42 | 42 | 48 | 48 | 48 | 58 |
| Hole in Bed Without Ring | 44 | 51 | 64 | 76 | 89 | 102 | 114 |
| Hole in Bed with Ring | – | – | – | 38 | 44 | 51 | 57 |
| Stroke | 82 | 102 | 114 | 152 | 133 | 152 | 178 |
| Height of the Body | 406 | 502 | 546 | 610 | 720 | 850 | 990 |
| Size of the Bed, Left to Right | 98 | 120 | 139 | 171 | 210 | 255 | 310 |
| Size of Bed Front to Back | 146 | 165 | 190 | 228 | 265 | 312 | 345 |
| Hole in Ram (Dia) | 19 | 19 | 19 | 25.4 | 25.4 | 25.4 | 25.4 |
| Hole in Ram ( Deep) | 38 | 38 | 38 | 38 | 38 | 38 | 51 |
| Length of Screw | 305 | 419 | 419 | 469 | 570 | 660 | 780 |
| Diameter of Flywheel | – | 406 | 457 | 534 | 635 | 770 | 920 |
A special heavy duty fly press will be fabricated as per the customer's requirement of peculiar press work. Availability of higher centre distance for the operation Assurance of high working efficiency and accuracy over longer period of service
Special Features
| Cap. to cut Round (m.s.) Bar | 50/20 | 50/26 | 50/30 |
| Square upto (m.s.) | 18 | 25 | 28 |
| Length of blades (approx) | 15 | 22 | 26 |
| Nett weight (approx) | 62 | 75 |
Bhavya Machine Tools offers:1. Imported Sheet Metal2. Sheet Metal Machines3. Hydraulic Profile Pipe Bending India
Standard Equipment:
Thread rolling is a chipless cold forming process. A plain cylindrical blank, with a diameter part way between the major and minor diameters of the finished thread, is rotated and squeezed between cylindrical type hardened steel dies whose working surface are the reverse of the thread form to be produced. The threads of the die penetrate the surface of the black as it rolls between them, displacing material to form the roots of the threads, and forcing the displayed material readily outward to form the crests. Unlike other threading process, no material is wasted.
Most threads are rolled by the in-feed method in which the entire thread length is formed simultaneously without axial movement of the part. Threads that is too long to be produced by the in-feed method can, however, be rolled by a thru feed method on these type of machine.
| Model | TR-24B | TR-42D | TR-80A |
| Work Piece (in Feed) | 3-24 mm | 3-50 mm | 10-80 mm |
| Max. Pitch of Thread (Standard V Thread) | 3 mm | 5 mm | 10 mm |
| Max. Serrations Pitch | 1.0 mm | 1.6 mm | 3 mm |
| Max. Die. Width | 80 mm | 150 mm | 200 mm |
| Max. Through Feed Thread Length | 6 meter | 6 meter | 6 meter |
| Max. Rolling Force (infinitely adjustable) | 6 tons | 16/20 tons | 30 tons |
| Spindle Axis Swivel for through Feed | 50 | 50 | 120 |
| Roll Spindle | 40 mm | 4 mm | 69.85 mm |
| Max. Rolling Die | 120 mm | 180 mm | 220 mm |
| Roll Spindle Speed (RPM) | 60/90 | 20/40/60 | 16/22/34/73/110/150 |
| Main Motor (H.P.) | 3 | 05/07/05 | 15 |
| Hydraulic Power Pack Motor (H.P.) | 1 | 02/03/18 | 3 |
| Coolant Pump | 1/8 H.P. | 1/8 H.P. | 1/2 H.P. |
| Electrical Connection | 415 V. 50 Hz, 3 Phase | 415 V. 50 Hz, 3 Phase | 415 V. 50 Hz, 3 Phase |
| Appx. Weight | 1000 Kg. | 2200 Kg. | 3500 Kg. |
The spindle speaks the difference in machining when it comes to vertical machining center. Bhavya Machine Tools presents this equipment that is featured with vertically orienting spindle. This device is also known for providing excellent tolerance at the time of milling and suits best for working with die and mould works. DMTG vertical machining center is also known for its durable quality for repeatable operations and performance accurate finishing on work materials. This imported vertical machining center is also known for speed, flexibility and energy efficient aspects wherein the consumer is sure to obtain excellent return on investment. It can be applied over complex work materials like ceramics apart from metals.
Note :As Improvements are made time to time the specifications are subject to change without notice and are not binding on us. Pictures shown with optional accessories.
| Models | VDL-500 | VDL-600A | VPL-850 | VDL-1000 | VDL-1200* | VDL-1400A* |
|---|---|---|---|---|---|---|
| Table Clamping Area | 700 x 320mm | 800 x 420mm | 1050 x 500mm | 1120 x 560mm | 1220 x 620mm | 1450 x 620mm |
| Number/Width/CD of T-Slots | 3/14mm/110mm | 3/18mm/125mm | 3/18mm/100mm | 5/18mm/100mm | 5/18mm/l00mm | 5/18mm/l00mm |
| Max. Table Load | 150Kg. | 500Kg. | 500Kg. | 750Kg. | 1500Kg. | 1500Kg. |
| Distance from Spindle Center to Column Guideway Surface | 430mm | 511mm | 575mm | 629mm | 660mm | 660mm |
| Distance from Spindle Nose to Table Surface | 140-520mm | 150-670mm | 120-680mm | 135-735mm | 100-775mm | 100-775mm |
| Traverse & Guideway | ||||||
| X - Axis Longitudinal Travel | 450mm | 600mm | 820mm | 1020mm | 1200mm | 1400mm |
| Y- Axis Cross Travel | 350mm | 420mm | 500mm | 560mm | 600mn | 600mn |
| Z- Axis Vertical Travel | 380mm | 520mm | 560mm | 600mm | 675mm | 675mm |
| X - Axis Guideway | Linear Way | Linear Way | Linear Way | Linear Way | Linear Way | Linear Way |
| Y-Axis Guideway | Linear Way | Linear Way | Linear Way | Linear Way | 3 Rail - Linear Way | 3 Rail - Linear Way |
| Z-Axis Guideway | Linear Way | Linear Way | Box / Linear Way | Box Way | Box Way | Box Way |
| Feed & Rapid | ||||||
| Rapid Traverse - X/Y/Z Axis | 30/30/3Om/min. | 24/24/20m/min. | 24/24/20m/min. | 24/24/18m/min. | 24/24/18m/min. | 24/24/18m/min. |
| Feed rate | 1-10000mm/min. | 1-10000mm/min. | 1-10000mm/min. | 1-10000mm/min. | 1-10000mm/min. | 1-10000mm/min. |
| Servo Motor Torque - X/Y/Z Axis | 4/4/8Nm | 12/12/12Nm | 12/12/12Nm | 12/12/12Nm | 22/22/22Nm | 22/22/22Nm |
| Spindle | ||||||
| Spindle Motor Power | 3.7/5.5kw | 7.5/l1kw | 7.5/11kw | 7.5/11kw | 11/15kw | 11/15kw |
| Spindle Speed Range | 60-100OOrpm | 60-80OOrpm | 60-8000rpm | 60-8000rpm | 45-6000rpm | 45-6000rpm |
| Spindle Taper | BT-40 | BT-40 | BT-40 | BT-40 | BT-50 | BT-50 |
| Automatic Tool Changer | ||||||
| Capacity/Type of Tool Changer | 12/Drum | 16/Drum | 16/Drum | 20/Drum | 24/Swing Arm | 24/Swing Arm |
| 24/Swing Arm | 24/Swing Arm | 24/SwingArm | ||||
| Tool Adaptor | BT-40 | BT-40 | BT-40 | BT-40 | BT-50 | BT-50 |
| Max. Tool Diamter/ Length | Ø80/150mm Drum | Ø100/280mm Drum | Ø100/280mm Drum | Ø100/305mm Drum | Ø127/305mm Swing Arm | Ø127/305mm Swing Arm |
| Ø77/280mm Swing Arm | Ø77/280mm Swing Arm | Ø77/305mm Swing Arm | ||||
| Max. Tool Weight | 6Kg. | 7Kg. | 7Kg. | 7Kg. | 15Kg. | 15Kg. |
| Time of tool Change (T-T) | 6-8Sec. | 6-8Sec/3sec. | 6-8Sec/3sec. | 6-8Sec/3sec. | 3.5Sec. | 3.5Sec. |
| CNC System | ||||||
| CNC Controller | FANUC/SIEMENS | FANUC/SIEMENS | FANUC/SIEMENS | FANUC/SIEMENS | FANUC/SIEMENS | FANUC/SIEMENS |
| Others | ||||||
| Power Requirement | 15kVA | 25kVA | 25kVA | 25kVA | 35kVA | 35kVA |
| Air Pressure Requirement | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
| Power Supply | 415V/3Phase/50Hz | 415V/3Phase/50Hz | 415V/3Phase/50Hz | 415V/3Phase/50Hz | 415V/3Phase/50Hz | 415V/3Phase/50Hz |
| Dimension (L*W*H) | 2450x1590x2200mm | 2310x2040x2337mm | 2350x2580x2340mm | 2530x2820x2500mm | 2880x2405x2901mm | 3300x2405x2477mm |
| Machine Weight | 2000Kg. | 4800Kg. | 6000Kg. | 7000Kg. | 8000Kg. | 8500Kg. |
| Models | C320K |
|---|---|
| Maximum Swing Over Bed | Ø 320mm |
| Maximum Swing Over Solid | Ø 140mm |
| Maximum Machining Length with Hydraulic Chuck | 245mm |
| Maximum Machining Length with Collect (Optional) | 250mm |
| Collect OD/ID (Optional) | Ø 56/48mm |
| Spindle Taper Hole | Ø 52mm |
| Maximum Bar Diameter with Hydraulic Hollow Chunk | Ø 38mm |
| Maximum Bar Diameter with Hydraulic Solid Chunk | None |
| Spindle Head Type | A2-5 |
| Spindle Speed Range | 60-5000rpm |
| Spindle Shift Mode | Servo |
| Spindle Rated Torque | 24Nm |
| Main Moto Power | 3.7Kw |
| Spindle Moto Maximum Speed Range(30 Min) | 5.5Kw |
| Chunk Type | Hydraulic Solid (AUTOGRIP-Taiwan) |
| Chunk Size | Ø 160mm |
| Rapid Traverse Speed on X Axis | 18m/min |
| Rapid Traverse Speed on Z Axis | 18m/min |
| Servo Motor Torque on X Axis | 6Nm |
| Servo Motor Torque on Z Axis | 6Nm |
| X Axis Travel | 320mm |
| Z Axis Travel | 300mm |
| Guide Way Type | Linear Guide Way (PMI/HIWIN Taiwan) |
| Turret Type | Gang Type |
| Turning Tool / Boring Bar Size | 20 x 20mm / Ø20mm |
| Chips Conveyor (Optional) | Hinge Belt |
| Weight | 1500KG |
| Models | CKE61100M | CKE61125M | |||
|---|---|---|---|---|---|
| Capacity | |||||
| Max. Swing Over Bed | 1000mm | 1250mm | |||
| Max. Swing over Slide | 630mm | 880mm | |||
| Max. Length of Work | 1500/2000/3000/4000/5000/6000/8000mm | 1500/2000/3000/4000/5000/6000/8000mm | |||
| Width of Bed | 750mm | 750mm | |||
| Travel /Rapid | |||||
| X Travel | 520mm | 640mm | |||
| Z Travel | 1500 - 8000mm | 1500 - 8000mm | |||
| Rapid traverse (X-Axis) | 6m/min | 6m/min | |||
| Rapid traverse (Z-Axis) | 8m/min | 8m/min | |||
| Spindle | |||||
| Spindle Nose | A2-15 | A2-15 | |||
| Chuck size | 0800mm | 0800mm | |||
| Taper of Spindle bore | 1:20 | 1:20 | |||
| Spindle Bore | 130mm | 130mm | |||
| Spindle Speed - Frequency Motor (Servo Motor in 1-Series) | 3 - 315rpm | 3 - 315rpm | |||
| Steps of spindle speed | 3 - Step Actuator | 3 - Step Actuator | |||
| Motor Power | 22/26kW | 22/26kW | |||
| Tool Post | |||||
| Repeatability of tool post | 0.008mm | 0.008mm | |||
| Vertical 4-position Toolpost changing time | 4.0 Sec | 4.0 Sec | |||
| Horizontal 6-position Toolpost changing time | |||||
| Tail Stock | |||||
| Diameter of tailstock quill | 200mm | 200mm | |||
| Travel of tailstock quill | 300mm | 300mm | |||
| Taper of tailstock quill | MT-6 | MT-6 | |||
| Weight & Dimensions | |||||
| Net weight | 13.5/14/15/16/17/18/20Ton | 14.5/15/16/17/18/19/21Ton | |||
| Dimensions (Length x Width x Height) 600mm | |||||
| 750mm | |||||
| 1000mm | |||||
| 1500mm | 6320 x 2300 x 2200mm | 6320 x 2300 x 2200mm | |||
| 2000mm | 6820 x 2300 x 2200mm | 6820 x 2300 x 2200mm | |||
| 3000mm | 7820 x 2300 x 2200mm | 7820 x 2300 x 2200mm | |||
| MODEL | ZAY7020G | ZAY7032G | ZA7Y7040G | ZAY7045G |
|---|---|---|---|---|
| Drilling capacity | ø 20mm | ø32mm | ø40mm | ø45mm |
| Face milling capacity | ø63mm | ø80mm | ø80mm | ø80mm |
| End milling capacity | ø20mm | ø20mm | ø32mm | ø32mm |
| Distance from spindle nose to table | 439mm | 440mm | 440mm | 440mm |
| Min.distance from spindle axis to column | 197.5mm | 272.5mm | 272.5mm | 272.5mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 | M.T.4 | M.T.4 | M.T.4 |
| Step of spindle speed | 6 | 6 | 6 | 6 |
| Range of ( spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| Swivel angle of head stock horizontally | 360° | 360° | 360° | 360° |
| perpendicularly | ±90° | ±90° | ±90° | ±90° |
| Table size | 520x160mm | 800x240mm | 800 x 240mm | 800 x 240mm |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor power | 0.37KW | 0.75KW | 1.1 KW | 1.5KW |
| Net weight | 130kgs/190kgs | 315kgs/365kgs | 318kgs/368kgs | 318kgs/368kgs |
| Dimension | 680x750x1000mm | 770x880x1160mm | 770x880x1160mm | 770x880x1160mm |

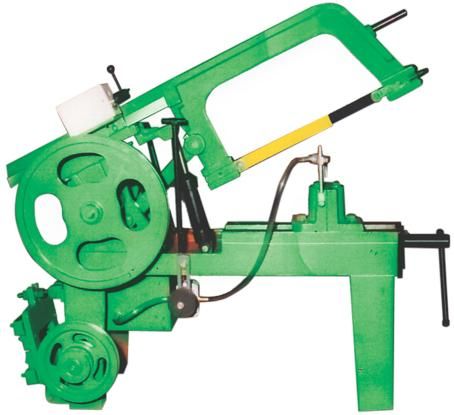

Bhavya Machine Tools offers semi-hydraulic hacksaw machines. This tool is used for cutting several materials including wood and metal. Our hydraulic controlled tools are highly dependable, efficient and long lasting. We supply the finest grade of hacksaw tools that are designed for smooth functioning. They are ruggedly constructed by experts for hustle free operations.
These heavy duty and high precision tools are reasonably priced. Our high speed machines are suitable for fast and bulk cutting. They are built using modern technology to deliver optimum output. We provide various models for this to meet the diverse needs of our customers. They are commonly used in a broad range of industries.
| Model | BSH-7 |
|---|---|
| Cutting Round | 165 |
| Capacity Square | 150 |
| No of stroke per min | 65 |
| Blade Size (mm) | 350 |
| Approx Weight Kg | 300 |
| Motor (1440 RPM) | 1 HP |
| MODEL | BS-712N | BS-712GR | BS-912B | BS-912GR | BS-1018B |
|---|---|---|---|---|---|
| Capacity Round @ 90° | Ø178mm | Ø178mm | Ø229mm | Ø229mm | Ø254mm |
| Capacity Rectangular @ 90 | 178 X 305mm | 178 X 210mm | 178 X 305mm | 178 X 305mm | 127 X 457mm |
| Capacity Round @ 45° | Ø127mm | Ø127mm | Ø150mm | Ø150mm | Ø150mm |
| Capacity Rectangular @ 45° | 120 X 125mm | 85 X 140mm | 127 X 150mm | 127 X 150mm | 150 X 190mm |
| Blade Size | 2362 x 19 x 0.9mm | 2362 x 19 x 0.9mm | 2655 x 27 x 0.9mm | 2655 x 27 x 0.9mm | 3280 x 27 x 0.9mm |
| Blade Speed | 22, 34, 49, 64m/min. | 29, 59, 87m/min. | 26, 50, 73, 95m/min. | 31, 65, 95m/min. | 26, 50, 73, 95m/min. |
| Drive | V-Belt | Gear | V-Belt | Gear | V-Belt |
| Job Clamping Type | Manual | Manual | Manual | Manual | Manual |
| Main Motor Power | 1.5HP | 1.5HP | 1.5HP | 1.5HP | 2.0HP |
| Power Supply | 415V - 50Hz - 3Phase | 415V - 50Hz - 3Phase | 415V - 50Hz - 3Phase | 415V - 50Hz - 3Phase | 415V - 50Hz - 3Phase |
| Packing Dimension | 1250 x 510 x 1150mm | 1320 x 770 x 1150mm | 1554 x 590 x 1150mm | 1600 x 600 x 1150mm | 1830 x 830 x 1150mm |
| Net/Gross Weight | 145/178Kgs. | 175/197Kgs. | 230/260Kgs. | 220/260Kgs. | 310/385Kgs. |
Bhavya Machine Tools supplies horizontal bandsaw machine. A tool is used to cut a variety of materials, specifically in irregular or curved shapes. We provide top quality, sturdy and compact bandsaw machine. Our tools ensure maximum safety and prevent accidents.
The key features include higher cutting speed and better accuracy in our bandsaw tool. These tools are highly suitable for cutting long bars into different shapes. They are engineered for smooth and vibration-free operations. Our economical and low noise equipments provide maximum output and minimum wastage. We offer numerous models of this instruments that match client requirements. Our equipments are widely used in automobile, electronic, electrical, wood working and many other industries.
We present top standard bandsaw equipment destined to provide excellent safety and accident proof features. Our bandsaws are fast in performance and can be applied for high speed machining requirements. As far as accuracy is concerned, we offer precise cutting options over different shapes and stays very effective to take up complicated machining options. We offer customized devices in accordance with the industrial preference and industries including automobile, electronic, electrical and wood working machines can find excellent usability with less wastage of materials.
This is considered prominent tool and considering the necessity we offer five different models. All these models differ in terms of sawing blade speed, blade sixe and light duty and heavy duty operation compatibility. Apart from the specifications, we choose higher grade tested materials for equipment construction which supports for excellent and long lasting performance. Our tool functionalty also favors for less maintenance and reliability of production performance. Our customized designing stay very supportive for engineering as well as heavy engineering industries.
BMB-1 :
This model works with 0.5, 1440 H.P drive motor and 25, 30 and 35 meter blade speed per minute. The round and square measures about 175mm and 150x150 and blade size is 2540x20x0.9. The overall equipments weights approximately about 300kgs.
BMB-1HS :
This model contains round and square measurement similar to that of BMB-1. It is equipped with 1, 1440 H.P drive motor and blade speed is 20, 35, 55 and 75 meter per minute. Blade size is 3000x27x0.9 and approximate weight of this equipment is 350kgs.
BMB-10HS :
This model comes with 250mm or round ground column and 200x200 of square column. It works with 1.5, 1440 H.P drive motor and it can create 20, 35. 55 and 75 meters of blade speed per minute. The blade size is 3860x27x0.9 which is slightly bigger than other two models and the overall equipment weighs about 750kgs. It is suitable for machining slightly moderate work materials.
BMB-2HS :
It is designed with 300 of round shaped ground column and 250x250 mm of square column. It works with 2, 1000 H.P drive motor and the blade speed per minute is 20, 35, 55 and 75 meters which is similar in four models. The blade size is 4100x21x0.9mm and the equipment weighs about 800kgs approximately.
BMB-3HS :
It is equipped with 4420x34x1.1 mm of blade size and the blade speed is similar to that of models BMB-1HS, BMB-10HS and BMB-2HS. The round column is 350mm and the square column is 300x300 and this model is supposed to the biggest in size and working capacity while comparing with overall five models of bandsaws. It works with 2, 1000 H.P drive motor. The overall equipment structure weighs about 900 kgs. Apart from that all models from Bhavya Machine Tools are provided with coolant pumps of 0.15, 440 H.P coolant pumps.
| Model | BMB-1 | BMB-1HS | BMB-10HS | BMB-2HS | BMB-3HS | BMB-4HS |
|---|---|---|---|---|---|---|
| CAPACITY | 175 | 200 | 250 | 300 | 350 | 400 |
| Round (mm) | 175 | 200 | 250 | 300 | 350 | 400 |
| Square (mm) | 150 X 150 | 150 X 150 | 200 X 200 | 250 X 250 | 300 X 300 | 350 X 350 |
| DRIVE | ||||||
| Drive Motor (H.P., RPM) | 0.5 / 1440 | 1 / 1440 | 1.5 / 1440 | 2 / 1000 | 2 / 1000 | 3 / 1000 |
| Coolant Pump (H.P., Valts) | 0.15 / 440 | 0.15 / 440 | 0.15 / 440 | 0.15 / 440 | 0.15 / 440 | 0.15 / 440 |
| Blade Speed (Mtr/Min) | 25 / 30 / 40 | 20 / 35 / 55 / 75 | 35 / 55 / 75 | 35 / 55 / 75 | 35 / 55 / 75 | 35 / 55 / 75 |
| OTHER | ||||||
| Bandsaw Blade (mm) | 2515 x 20 x 0.9 | 3000 x 27 x 0.9 | 3300 x 27 x 0.9 | 3860 x 27 x 0.9 | 4100 x 27 x 0.9 | 4420 x 34 x 1.1 |
| Guide Pulley Dia (mm) | 340 | 410 | 425 | 496 | 496 | 550 |
| Floor Space LxWxH (mm) | 1500 x 570 x 870 | 1630 x 580 x 895 | 2000 x 600 x 900 | 2400 x 830 x 1050 | 2550 x 830 x 1050 | 2650 x 830 x 1200 |
| Net Weight (kg.) | 272 | 322 | 400 | 761 | 821 | 900 |
| Model | BDH280P | BDH350P | BDH400P |
|---|---|---|---|
| Cutting Capacity Round | 280mm | 350mm | 400mm |
| Cutting Capacity Square | 280 x 280mm | 350 x 350mm | 400 x 400mm |
| Blade Size | 3505 x 27 x 0.9mm | 4115 x 34 x 1.1mm | 5000 x 41 x 1.3mm |
| Blade Speed | 27, 45, 69m/min. | 27, 45, 69m/min. | 27,45, 69m/min. |
| Clamping Type | Hydraulic | Hydraulic | Hydraulic |
| Material Feeding | Automatic (0-500mm) | Automatic (0-500mm) | Automatic (0-500mm) |
| Main Motor Power | 3.0kW | 3.0kW | 4.0kW |
| Hydraulic Motor Power | 0.75kW | 0.75kW | 0.75kW |
| Coolant Motor | 0.04kW | 0.04kW | 0.125kW |
| Power Supply | 415V-50Hz-3Phase | 415V-50Hz-3Phase | 415V-50Hz-3Phase |
| Overall Dimension | 1860 x 2400 x 1400mm | 2000 x 2500 x 1500mm | 2500 x 2500 x 1600mm |
The working table executes only longitudinal movements, This ensures full contact and support from the machine bed, even in the table limit position. V and flat guide ways are laminated with Turcite'B'to guarantee smooth table movement regardless of the load on the table.
The column carries out only cross feed movements, this guarantees uniform contact between the column slide and machine bed in any column position. The column slide is guided by box type Turcite 'B' laminated ways, hand scraped to obtain smooth stick slip free movements.
Vertical slide ways and the grinding wheel, creating a perfectly perpendicular movement of the spindle in relation to the working table, The housing construction is also designed for better rigidity.
The cartridge type spindle is supported by class 7 super(CP4) precision angular contact ball bearings, preloaded and select-fitted into spindle cartridge. This will guarantee a maximum run out of 0.002mm for stable and accurate grinding, All the spindles are assembled at Prayosha skilled and experienced technicians in temperature-controlled clean room. The result is a spindle that will provide years of trouble-free service with minimum temperature changes, noise or vibration.
| Model | BH-2040 | BH 2060 | BH-2448 | BH-2460 |
|---|---|---|---|---|
| Max. Table Size | 500 x 1000 | 500 x 1500 | 600 x 1200 | 600 x 1500 |
| Max. Longitudinal Travel | 1075 | 1575 | 1275 | 1575 |
| Max. Cross Traver | 550 | 550 | 650 | 650 |
| Max. Spindle Center Height above Table | 750 | 750 | 750 | 750 |
| SPEED AND FEEDS | ||||
| Max. Table Speed | 18 | 18 | 18 | 18 |
| Power Cross Traverse | 1000 | 1000 | 1000 | 1000 |
| Auto Cross Feed at each Table reversal (infinitely variable) | 0.5 to 10 | 0.5 to 10 | 0.5 to 10 | 0.5 to 10 |
| Least Count of vertical feed head wheel | 0.002 | 0.002 | 0.002 | 0.002 |
| GRINDING HEAD | ||||
| Size of Grinding wheel | 400 x 50 x 127 | 400 x 50 x 127 | 450 x 50 x 127 | 450 x 50 x 127 |
| Power of spindle motor | 5 | 5 | 7.5 | 7.5 |
| Speed of grinding spindle | 1400 | 1400 | 1400 | 1400 |
| HYDRAULIC SYSTEM | ||||
| Working Pressure (Kg/Cm2) | 20 | 20 | 20 | 20 |
| Motor | 5 | 5 | 5 | 7.5 |
| Tank capacity (Ltrs) | 150 | 150 | 150 | 150 |

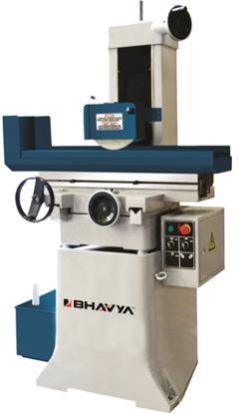

Bhavya Machine Tools presents M series imported surface grinding machine, a versatile equipment that is preferred for face grinding requirement on work materials. It can be applied for both conventional range of machining as well as profile type metal work. It has been designed with excellent technical features that make it provide drudging operation with reduced negative result and getting overheated during times of continuous production. As far as surface finish is concerned, this device can provide highest material removal rate on different ranges of work materials. In addition to the technical features, it is cost effective when compared to traditional range of equipments. Our imported surface grinding machine M series is well known for their smooth finish, longer performance, durability, precision and quality. It can be applied for obtaining excellent finish over worm piece which have a flat surface. The abrasive wheel equipped with this equipment is a compatible feature for pulverizing over both metallic as well non-metallic and the wheel and spindle head are adjustable over height. In addition, this apparatus is also known for corrosion resistance capacity, uninterrupted performance, precise surfacing and durability. Pricing is one more reason of attraction as Bhavya Machine Tools offers this apparatus at industries most competitive range of price.
Imported Surface Grinding Machine M Series Features
Note : As Improvements are made time to time the specifications are subject to change without notice and are not binding on us. Pictures shown with optional accessories.
| Model | M7125 A+ | M3060A + | M7140A-1 |
|---|---|---|---|
| Grinding Capacity: LXWXH | 500 x 250 x 330mm | 600 x 300 x 300mm | 800 x 400 x 405mm |
| Longitudinal table travel | 520mm | 620mm | 820mm |
| Cross table travel | 275mm | 325mm | 440mm |
| Max. Distance from the spindle centre to the worktable surface | 410mm | 400mm | 580mm |
| Safety load of bench (in max) | 100 Kg | 150 Kg | 400 Kg |
| Table size | 500 x 250mm | 600 x 300mm | 800 x 400mm |
| T-slot | 12 X 1 mm x no. | 14 X 1mm x no. | 18 x 3 mm x no. |
| Bench speed | 3-23 m/min | 3-23 m/min | 0-26 m/min |
| Cross auto feed | 0.02mm / div | 0.02mm /div | 0.5-20mm / div |
| Cross rapid feed | - | 0.6-10mm | - |
| Cross handwheel | - | - | 0.02mm/div |
| Grinding Wheel size( DXWXd) | 200 x 16 x 32mm | 200 x 16 x 32mm | 350 x 32 x 127mm |
| Spindle Speed | 2850 r/min | 2850 r/min | 1450 r/min |
| Max. Movement of Vertical mechanism | 410mm | 400mm | - |
| Vertical fine adjustment revolution | 0.15mm | 0.15mm | 0.04mm |
| Vertical per fine adjustment graduation | 0.002mm | 0.002mm | 0.001mm |
| Spindle motor | 1.1 Kw | 1.5 Kw | 5.5 |
| Overall dimensions: (LXWXH) | 1550 x 1180 x 1840 mm | 1870 x 1200 x 1840 mm | 2260 x 1790 x 1 |
| MODEL | Table Length | Top Roll | Bottom Roll | HP |
|---|---|---|---|---|
| BBR-1 | 1250 x 3 | 100 | 90 | 2 |
| BBR-2 | 1250×6 | 125 | 105 | 3 |
| BBR-3 | 1250x 10 | 150 | 125 | 5 |
| BBR-4 | 1250x 12 | 175 | 140 | 7.5 |
| BBR-5 | 1250x 16 | 190 | 150 | 7.5 |
| BBR-6 | 1250×20 | 200 | 160 | 10 |
| BBR-7 | 1250×25 | 240 | 200 | 15 |
| BBR-8 | 1500×3 | 115 | 100 | 3 |
| BBR-9 | 1500×6 | 140 | 115 | 5 |
| BBR-10 | 1500x 10 | 160 | 135 | 7.5 |
| BBR-11 | 1500x 12 | 180 | 150 | 7.5 |
| BBR-12 | 1500x 16 | 200 | 160 | 10 |
| BBR-13 | 1500×20 | 215 | 170 | 12.5 |
| BBR-14 | 1500×26 | 250 | 215 | 20 |
| BBR-15 | 2000×6 | 160 | 135 | 5 |
| BBR-16 | 2000x 10 | 185 | 150 | 7.5 |
| BBR-17 | 2000x 12 | 205 | 160 | 10 |
| BBR-18 | 2000x 16 | 215 | 175 | 12.5 |
| BBR-19 | 2000×20 | 230 | 190 | 15 |
| BBR-20 | 2000 x 25 | 275 | 230 | 20 |
| BBR-21 | 2500 x 6 | 175 | 150 | 7.5 |
| BBR-22 | 2500x 10 | 200 | 170 | 10 |
| BBR-23 | 2500x 12 | 230 | 180 | 15 |
| BBR-24 | 2500x 16 | 240 | 200 | 20 |
| BBR-25 | 2500 x 20 | 260 | 215 | 20 |
| BBR-26 | 2500×25 | 300 | 260 | 30 |
| BBR-27 | 3000x 10 | 240 | 200 | 15 |
| BBR-28 | 3000x 12 | 260 | 220 | 20 |
| BBR-29 | 3000x 16 | 275 | 225 | 20 |
| BBR-30 | 3000 x 20 | 290 | 250 | 25 |
| BBR-31 | 3000×25 | 340 | 290 | 40 |
| MODEL | HNM-6 |
|---|---|
| Maximum Cutting Thickness | 6.5mm |
| Maximum Cutting Length | 250mm |
| Cutting Angle | 90° |
| Number of Strokes | 24/min. |
| Working Table | 810 x 750mm |
| Motor Power | 4 kW |
| Oil Tank Capacity | 35 Liter |
| Max. Working Pressure | 12 Mpa |
| Packing Dimension | 1010 x 850 x 1400mm |
| Net Weight | 630Kgs. |
| Models | CW62100M | CW62125M | CW62140M | CW62160M |
|---|---|---|---|---|
| Main Specification | ||||
| Max. Swing Over Bed | 1000mm | 1250mm | 1400mm | 1600mm |
| Max. Swing Over Carriage | 630mm | 880mm | 1030mm | 1230mm |
| Max Swing in Gap | 1400mm | 1650mm | 1800mm | 2000mm |
| Admit Between Center | 1500/2000/3000/4000/5000/6000/8000mm | |||
| Width of Bed | 755mm | 755mm | 755mm | 755mm |
| Head Stock | ||||
| Spindle nose | A-15 | A-15 | A-15 | A-15 |
| Spindle bore | 130mm | 130mm | 130mm | 130mm |
| Taper of Spindle bore | 140mm (1:20) | 140mm (1:20) | 140mm (1:20) | 140mm (1:20) |
| No, of Spindle Speed | 21 speeds | 21 speeds | 21 speeds | 21 speeds |
| Range of Spindle Speeds | 3.15 -315 rpm | 3.15 -315 rpm | 3.15 -315 rpm | 3.15 -315 rpm |
| Thread & Feed | ||||
| Range of inch thread | ||||
| Range of metric thread | 1-120mm | 1-120mm | 1-120mm | 1-120mm |
| Range of module Thread | 0.5-60 MOD | 0.5-60 MOD | 0.5-60 MOD | 0.5-60 MOD |
| Range of Di metrical pitch thread | 1/2-56 DP | 1/2-56 DP | 1/2-56 DP | 1/2-56 DP |
| Longitudinal feed | 0.1-12 mm/rev | 0.1-12 mm/rev | 0.1-12mm/rev | 0.1-12m m/rev |
| Cross feed | 0.05-6mm/rev | 0.05-6mm/rev | 0.05-6mm/rev | 0.05-6mm/rev |
| Rapid Traverse - Longitudinal | 3.8m/min. | 3.8m/min. | 3.8m/min. | 3.8m/min. |
| Rapid Traverse - Cross | 1.5m/min. | 1.5m/mi n. | 1.5m/min. | 1.5m/min. |
| Rapid Traverse - Tool Slide | 0.9m/min. | 0.9m/min. | 0.9m/min. | 0.9m/min. |
| Max. Travel of Cross Slide | 580mm | 670mm | 725mm | 825mm |
| Max. Travel of Top Slide | 300mm | 300mm | 300mm | 300mm |
| Tool Shank Size | 45x45mm | 45x45mm | 45x45mm | 45x45mm |
| Tailstock | ||||
| Taper of tailstock quill | 80mm / 1:20 | 80mm / 1:20 | 80mm / 1:20 | 80mm / 1:20 |
| Travel of tailstock quill | 300mm | 300mm | 300mm | 300mm |
| diameter of tailstock quill | 160mm | 160mm | 160mm | 160mm |
| Motor | ||||
| Power of Main Motor | 30 HP | 30 HP | 30 HP | 30 HP |
| Power of Rapid Traverse Motor | 1.5HP | 1.5HP | 1.5HP | 1.5HP |
| Power of Coolant Motor | 0.125HP | 0.125HP | 0.125HP | 0.125HP |
| Weight & Dimensions | ||||
| Net weight: 1500mm | 8500Kg. | 9200Kg. | 9500Kg. | 10000Kg. |
| 2000mm | 9000Kg. | 9700Kg. | 10000Kg. | 10500Kg. |
| 3000mm | 10000Kg. | 10700Kg. | 11000Kg. | 11500Kg. |
| 4000mm | 11000Kg. | 11700Kg. | 12000Kg. | 12500Kg. |
| 5000mm | 12000Kg. | 12700Kg. | 13000Kg. | 13500Kg. |
| 6000mm | 13000Kg. | 13700Kg. | 14000Kg. | 14500Kg. |
| 8000mm | 15000Kg. | 15700Kg. | 16000Kg. | 16500 Kg. |
| Dimensions (Lx WxH): 1500mm | 4450x1855x1780mm | 4450x1955x1910mm | 4450x2010x1980mm | 4450x2110x2080mm |
| 2000mm | 4950x1855x1780mm | 4950x1955x1910mm | 4950x2010x1980mm | 4950x2110x2080mm |
| 3000mm | 5950x1855x1780mm | 5950x1955x1910mm | 5950x2010x1980mm | 5950x2110x2080mm |
| 4000mm | 6950x1855x1780mm | 6950x1955x1910mm | 6950x2010x1980mm | 6950x2110x2080mm |
| 5000mm | 7950x1855x1780mm | 7950x1955x1910mm | 7950x2010x1980mm | 7950x2110x2080mm |
| 6000mm | 8950x1855x1780mm | 8950x1955x1910mm | 8950x2010x1980mm | 8950x2110x2080mm |
| Models | CW61160H | CW61180H | CW61200H |
|---|---|---|---|
| Main Specification | |||
| Max. Swing Over Bed | 1600mm | 1800mm | 2000mm |
| Max. Swing Diameter Over Support | 1230mm | 1290mm | 1630mm |
| Max. Turning Length | 2800/3800/4800/5800/800mm | 2800/3800/4800/5800/800mm | 2800/3800/4800/5800/800mm |
| Max. Weight of Work Piece | 8000Kg. | 8000Kg. | 8000Kg. |
| Admit Between Center | 3000/4000/5000/6000/8000mm | 3000/4000/5000/6000/8000mm | 3000/4000/5000/6000/8000mm |
| Width of Bed | 970mm | 970mm | 970mm |
| Head Stock | |||
| Spindle nose | A2-15 | A2-15 | A2-15 |
| Spindle bore | 130mm | 130mm | 130mm |
| Taper of Spindle bore | Metric 140 | Metric 140 | Metric 140 |
| No, of Spindle Speed | 21/12 - Speeds | 21/12-Speeds | 21/12-Speeds |
| Range of Spindle Speeds | 2.5-250rpm/3.8-312rpm | 2.5-250rpm/3.8-312 rpm | 2.5-250rpm/3.8-312rpm |
| Threads Feed | |||
| Range of inch thread | 1/4-28TPI | 1/4-28TPI | 1/4-28TPI |
| Range of metric thread | l-120mm | l-120mm | l-120mm |
| Range of module Thread | 0.50-60MOD | 0.50-60MOD | 050-60MOD |
| Range of Di metrical pitch thread | 1/2-56DP | 1/2-56DP | 1/2-56DP |
| Feed Box Range - Vertical | 0.10-12.0mm | 0.10-12.0mm | 0.10-12.0mm |
| Feed Box Range - Horizontal | 0.05-6.0mm | 0.05-6.0mm | 0.05-6.0mm |
| Feed Box Range - Upper Blade Holder | 0.025-3.0mm | 0.025-3.0mm | 0.025-3.0mm |
| Range of Infeed | 0.032-6.0mm/rev. | 0.032-6.0mm/rev. | 0.032-6.0mm/rev. |
| Range of Feed On | 0.016-3.0mm/rev. | 0.016-3.0mm/rev. | 0.016-3.0mm/rev. |
| Rapid Traverse - Longitudinal | 3.8m/min. | 3.8m/min. | 3.8m/min. |
| Rapid Traverse - Cross | 1.8m/min. | 1.8m/min. | 1.8m/min. |
| Rapid Traverse - Tool Slide | 0.9m/min. | 0.9m/min. | 0.9m/min. |
| Max. Travel of Cross Slide | 850mm | 950mm | 1050mm |
| Max. Travel of Top Slide | 300mm | 300mm | 300mm |
| Tool Shank Size | 45x45mm | 45x45mm | 45x45mm |
| Tailstock | |||
| Taper of tailstock quill | Metric 80 | Metric 80 | Metric 80 |
| Travel of tailstock quill | 300mm | 300 mm | 300mm |
| diameter of tailstock quill | 180mm | 180 mm | 180mm |
| Motor | |||
| Power of Main Motor | 30kW | 30kW | 30kW |
| Power of Rapid Traverse Motor | 1.5HP | 1.5HP | 13HP |
| Power of Coo la nt Motor | 0.125HP | 0.125 HP | 0.125HP |
| Weight & Dimensions | |||
| Net weight: 3000mm | 13300Kg. | 13800Kg. | 14300Kg. |
| 4000mm | 14700Kg. | 15200Kg. | 15700Kg. |
| 5000mm | 16100Kg. | 16600Kg. | 17100Kg. |
| 6000mm | 17500Kg. | 18000Kg. | 18500Kg. |
| 8000mm | 20300Kg. | 20800 Kg. | 21300Kg. |
| Dimensions (L x W x H ): 3000mm | 5950x2140x2250mm | 5950x2240x2350mm | 5950x2340x2450mm |
| 4000mm | 6950x2140x2250mm | 6950x2240x2350mm | 6950x2340x2450mm |
| 5000mm | 7950x2140x2250mm | 7950x2240x2350mm | 7950x2340x2450mm |
| 6000mm | 8950x2140x2250mm | 8950x2240x2350mm | 8950x2340x2450mm |
| 8000mm | 10950x2140x2250mm | 10950x2240x2350mm | 10950x2340x2450mm |
There are 5 models of extra heavy duty lathe for the same. These imported all geared lathe machines contain dog chucks which are more often known as a lathe carrier. This carrier is used for turning between lathes and centres. Power of Rapid Traverse Motor is 2 HP.
| Models | CW61125H | CW61140H | CW61160H | CW61180H | CW61200H |
|---|---|---|---|---|---|
| Main Specification | |||||
| Max. Swing Over Bed | 1240mm | 1440mm | 1640mm | 1840mm | 2040 mm |
| Max. Swing Over Carriage | 900 mm | 1050mm | 1250mm | 1450mm | 1650mm |
| Max. Turning Length | 1000-12000mm | 1000-12000mm | 1000-12000mm | 1000-12000mm | 1000-12000mm |
| Max. Weight of Work Piece | 15000Kg. | 15000 Kg. | 15000Kg. | 15000 Kg. | 15000Kg. |
| Width of Bed | 1100mm | 1100mm | 1100mm | 1100mm | 1100mm |
| Head Stock | |||||
| Spindle nose | A2-15 | A2-15 | A2-15 | A2-15 | A2-15 |
| Spindle bore | 130mm | 130mm | 130mm | 130mm | 130mm |
| Taper ofSpindle bore | Metric 140 | Metric 140 | Metric 140 | Metric 140 | Metric 140 |
| No, of Spindle Speed | 21/12-Speeds | 21/12-Speeds | 21/12-Speeds | 21/12-Speeds | 21/12-Speeds |
| Range ofSpindle Speeds | 3.15-315rpm/3.5-290rpm | 3.15-315rpm/3.5-290rpm | 3.15-315rpm/3.5-290rpm | 3.15-315rpm/3.5-290rpm | 3.15-315rpm/3.5-290rpm |
| Thread & Feed | |||||
| Range of inch thread | 3/8-28TPI | 3/8-28TPI | 3/8-28TPI | 3/8-28TPI | 3/8-28TPI |
| Range of metric thread | l-120mm | 1-120 mm | 1-120 mm | 1-120 mm | 1-120 mm |
| Range of module Thread | 0.50-60 MOD | 0.50-60MOD | 0.50-60MOD | 0.50-60MOD | 0.50-60MOD |
| Range of Di metrical pitch thread | 1-56DP | 1-56DP | 1-56DP | 1-56DP | 1-56DP |
| Longitudinal Feed | 0.10-12.0mm/rev. | 0.10-12.0mm/rev. | 0.10-12.0mm/rev. | 0.10-12.0mm/rev. | 0.10-12.0mm/rev. |
| Cross Feed | 0.05-6.0mm/rev. | 0.05-6.0mm/rev. | 0.05-6.0mm/rev. | 0.05-6.0mm/rev. | 0.05-6.0mm/rev. |
| Rapid Traverse - Longitudinal | 3.8m/min. | ||||
| Rapid Traverse - Cross | 1.8m/min. | ||||
| Rapid Traverse - Tool Slide | 0.9m/min. | ||||
| Max. Travel of Cross Slide | 850mm | 850mm | 850mm | 950mm | 1050mm |
| Max. Travel of Top Slide | 300mm | 300mm | 300mm | 300mm | 300mm |
| Tool Shank Size | 45x45mm | 45x45mm | 45x45mm | 45x45mm | 45x45mm |
| Tail stock | |||||
| Taper of tailstock quill | Metric 80 | Metric 80 | Metric 80 | Metric 80 | Metric 80 |
| Travel of tailstock quill | 300mm | 300mm | 300mm | 300mm | 300mm |
| diameter of tailstock quill | 260mm | 260mm | 260mm | 260mm | 260mm |
| Motor | |||||
| Power of Main Motor | 30 kW | 30 kW | 30 kW | 30 kW | 30 kW |
| Power of Rapid Traverse Motor | 2HP | 2HP | 2 HP | 2 HP | 2 HP |
| Power of Coolant Motor | 0.125HP | 0.125HP | 0.125HP | 0.125HP | 0.125HP |
| Admit Between Centers | |||
|---|---|---|---|
| ET Series | 750 mm | 1000 mm | 1500 mm |
| Models | 4310 | 5610 | 6610 |
|---|---|---|---|
| Type of Bed | Gap Bed | Gap Bed | Gap Bed |
| Width of Bed | 560mm | 655mm | 760mm |
| Height of Center | 430mm | 560mm | 660mm |
| Swing Over Bed | 840mm | 1100mm | 1300mm |
| Swing Over Saddle | 600mm | 860mm | 1060mm |
| Swing Over Cross Slide | 510mm | 770mm | 980mm |
| Swing In Gap | 1250mm | 1510mm | 1710mm |
| Length of Gap in Front of face Plate | 365mm | 365mm | 365mm |
| No. Of Spindle Speed | 8 | 8 | 8 |
| Spindle Speed Range | 20 to 275 RPM | 20 to 275 RPM | 16 to 195 RPM |
| Taper in Spindle Sleeve | MT-5 | MT-5 | MT-5 |
| Spindle Hollow | 104 mm | 104 mm | 104 mm |
| Spindle Nose Detail | Bayonet Size 11 | Bayonet Size 11 | Bayonet Size 15 |
| No. Of British Threads | 28 | 28 | |
| Range Of British Threads | 1.5 to 22 TPI | 1.5 to 22 TPI | 1.5 to 22 TPI |
| No. Of Metric Threads | 22 | 22 | 22 |
| Range Of Metric Threads | 0.75 to 16 mm | 0.75 to 16 mm | 0.75 to 16 mm |
| No. Of Feeds | 28 | 28 | 28 |
| Range Of Longitudinal Feeds | 0.2 to 3.0 mm / rev | 0.2 to 3.0 mm / rev | 0.2 to 3.0 mm / rev |
| Range Of Transverse Feeds | 0.033 to 0.50 | 0.033 to 0.50 | 0.033 to 0.50 |
| Lead Screw | 50.8 mm X 2 TPI | 50.8 mm X 2 TPI | 50.8 mm X 2 TPI |
| Tail Stock Spindle Diameter | 95 mm | 105 mm | 115 mm |
| Taper In Tail Stock Spindle | MT-5 | MT-6 | MT-6 |
| Cross Slide Travel | 430 mm | 560 mm | 660 mm |
| Compound Slide Travel | 230 mm | 230 mm | 300 mm |
| Tail Stock Sleeve Travel | 220 mm | 310 mm | 410 mm |
| Tool Shank Size | 38 x 38 mm | 38 x 38 mm | 38 x 38 mm |
| Tool Post Square | 200 x 200 | 200 x 200 | 200 x 200 |
| 4310 | 5610 | 6610 |
|---|---|---|
| Bed length ABC | Bed length ABC | Bed length ABC |
| 3750 2000 | 3950 2000 | 4270 2000 |
| 4750 3000 | 4950 3000 | 5270 3000 |
| 5750 4000 | 5950 4000 | 6270 4000 |
| 6750 5000 | 6950 5000 | 7270 5000 |
| 7750 6000 | 7950 6000 | 8270 6000 |
| Models | MD 212 | MD 212H |
|---|---|---|
| Height Of Centre (mm) | 212 | 250 |
| Width of Bed (mm) | 280 | 280 |
| Max Swing over bed (mm) | 410 | 490 |
| Max Swing over Slide (mm) | 240 | 320 |
| Spindle Bore (mm) | 52 mm | 80 mm |
| Spindle Nose | 6 TPI | 6 TPI |
| Spindle Speed 6(R.P.M) | 40 to 550 | 40 to 550 |
| Cross Slide Travel (mm) | 240 mm | 240 |
| Lead Screw TPI | 4 TPI | 4 TPI |
| Tail Stock Sleeve | MT-4 | MT-4 |
| Power Required (H.P.) | 2 | 2 |
| Models | YBX | YBX-1 | YBX-2 | YBX-3 |
|---|---|---|---|---|
| Height Of Centre (mm) | 240 | 300 | 300 | 375 |
| Width of bed (mm) | 325 | 325 | 375 | 375 |
| Max. Swing over bed (mm) | 480 | 600 | 600 | 750 |
| Max. Swing over Slide (mm) | 280 | 400 | 400 | 550 |
| Max. Swing in gap | 780 | 900 | 900 | 1050 |
| Spindle Bore | 52 | 80 | 80 | 80 |
| Spindle Nose | 6TPI | 6TPI | 6TPI | 6TPI |
| Spindle Speed 8 (R.P.M.) | 30 to 600 | |||
| Cross Slide Travel | 270 | 335 | 335 | 380 |
| Top Slide Travel | 150 | 150 | 150 | 150 |
| Lead screw TPI | 4TPI | 4TPI | 4TPI | 4TPI |
| Tail Stock Sleeve | MT-4 | MT-4 | MT-4 | MT-4 |
| Power Required(H.P) | 3 | 3 | 3 | 5 |
| Size | YBX | YBX-1 | YBX-2 | YBX-3 |
|---|---|---|---|---|
| 5.5' | 560 | 560 | 560 | 560 |
| 7' | 1000 | 1000 | 1000 | 1000 |
| 9' | 1600 | 1600 | 1600 | 1600 |
| 10' | 1900 | 1900 | 1900 | 1900 |
| 12' | 2500 | 2500 | 2500 | 2500 |
| 14' | 3100 | 3100 | 3100 | 3100 |
| 16' | 3700 | 3700 | 3700 | 3700 |
| 18' | 4300 | 4300 | 4300 | 4300 |
| 20' | - | - | - | 4900 |
| 22' | - | - | - | 5500 |
| 24' | - | - | - | 6100 |
Bhavya Machine Tools provides different types of roll turning lathe machine. They are designed to create objects that have symmetry about an axis of rotation. These equipments are used for accurately machining comparatively hard materials. This instruments incorporate the latest technology to ensure improved performance.
We offer flawlessly designed devices with tight tolerances. Our tools are compact and offer better value for money. Thesemultipurpose lathe machinesfeature simplicity, robustness and longer working life. We supply many models in various technical specifications. They are the ideal solution for a wide range of applications. They are used in power plants, steel rolling mills, tool rooms, ship building, repairing shops, paper mills, workshops, textile, oil, mining industries etc. This device is one of the best outcomes of precision engineering designs of Bhavya Machine Tools.
| Models | RL45 | RL50 | RL55 | RL60 | RL65 | RL70 | RL75 | RL85 | RL95 | RL115 |
|---|---|---|---|---|---|---|---|---|---|---|
| Bed Length FL | 12’ | 14’ | 16' | 18' | 20' | 22' | 24' | 30' | 36' | 40' |
| Admit between Centre | 2400 | 3000 | 3450 | 3750 | 4350 | 4950 | 5550 | 7350 | 8850 | 10050 |
| Height Of Centre (mm) | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 850 | 950 | 1150 |
| Width Of Bed (mm) | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 900 | 1000 | 1200 |
| Over Bad | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1700 | 1900 | 2300 |
| In Gap | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2300 | 2500 | 2650 |
| Bore (mm) | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" |
| Speed - 8 (R.P.M.) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Lead Screw Dia | 2" | 2" | 2'' | 2 1/2'' | 2 3/4'' | 2 3/4'' | 3'' | 3'' | 3 1/2 '' | 4 1/2 '' |
| Power Required (H.P.) | 5 | 5 | 5 | 5 | 7 1/2 | 10 | 15 | 20 | 25 | 25 |
| Models | LD 165 | LD 175 |
|---|---|---|
| Height Of Centre (mm) | 165 | 175 |
| Width of Bed (mm) | 238 | 238 |
| Max Swing over bed (mm) | 330 | 350 |
| Max Swing over Slide (mm) | 180 | 200 |
| Spindle Bore (mm) | 40 | 40 |
| Spindle Nose | 8 TPI | 8 TPI |
| Spindle Speed 8 (R.P.M) | 30-825 | 30-825 |
| Cross Slide Travel (mm) | 225 | 225 |
| Lead Screw TPI | 4 TPI | 4 TPI |
| Tail Stock Sleeve | MT-3 | MT-3 |
| Power Required (H.P.) | 1 | 1 |
