Microscope

We offer a complete product range of Olympus Opto Inverted Tissue Culture Microscope, Magnus Student Microscopes, Olympus Opto Stereoscopic Microscope, Magnus Laboratory And Clinical Microscopes and Olympus Microscope

Olympus Opto Inverted Tissue Culture Microscope

Olympus Opto Inverted Tissue Culture Microscope model Invi

For brightfield and phase contrast applications (30 inclined, interpupillary 48mm75mm) having 6v30w halogen light illuminator, quintuple revolving nosepiece, coaxial coarse (stroke : 37.7mm per rotation) & fine (stroke : 0.2mm per rotation) adjustment, plain stage (160x250mm) with glass insert, auxiliary stage 70x180mm, Condenser LWD 72mm, Long working distance Plan Infinity Brightfield Objectives 4x/0.1 (W.D 18mm) & 40x/0.6 (W.D 2.6mm - Cover Glass 1.2mm) And Phase Contrast Objectives 10x/0.25 (W.D 10mm) & 20x/0.4 (W.D 5.1mm) with phase annulus plate (10x-20x, 40x) & High eyepoint, extra wide field eyepiece EW10x (F.N.22) standard set complete. Features :Long Working Distance Plan Infinity OpticsPre-Centered Phase AnnulusTrinocular Port In Standard UnitExcellent Field Flatness.
View Complete Details

Magnus Student Microscopes

  • Eyepieces Huygenian 10x and 15x.
  • Body Monocular die-cast body, inclinable upto a horizontal position (90°).
  • Magnification 100X ~ 600X.
  • Stage Plain square stage of 100 X 100 mm, with two clips, mechanical stage (optional).
  • Nosepiece Triple hole nosepiece with positive click stops for precise and smooth alignment of objectives.
  • Focusing By coarse & fine focusing knobs.
  • Objectives Hard anti-reflection coated, colour coded Parfocal Achromatic 10x and 40x.
  • Condenser Built-in Substage Condenser with iris diaphragm.
  • Illumination Plano-concave mirror in adjustable fork mount.
  • Finish Grey or black durable acid resistant epoxycoated finish.
Olympus Opto Laboratory / Medical Microscope model MAGNUS HB


Body Monocular die-cast body, inclinable upto a horizontal position (90).
Magnification 100X 1000X. Optional 40X - 1000X.
Stage Built-in graduated mechanical stage 120 X 125 mm with convenient adjustment for manipulation of slide.
Nosepiece Quadruple nosepiece with positive dick stops for precise and smooth alignment of objectives.
Focusing By coarse & fine focusing knobs.
Eyepieces Widefield Eyepiece (NWF 10X).
Objectives Hard anti-reflection coated, colour coded Parfocal Achromatic 10x, 40x and 100x (spring loaded, oil immersion).
Condenser Sub-stage Abbe condenser of 1.25 N.A. focusable with rack and pinion; fitted with an iris diaphragm and filter holder (for blue filter) to facilitate optimum adjustment of light.
Illumination Plano-concave mirror in adjustable fork mount.
Optional Objective achromat 4X, Eyepieces Widefield 15X, Huygenian 5X, 10X, 15X.
Finish Grey or black durable acid resistant epoxycoated finish.
Olympus Opto Laboratory / Medical Microscope model MAGNUS GB


Body Monocular die-cast body, inclinable upto a horizontal position (90). With draw tube
Magnification 100X 1000X. Optional 40X - 1000X.
Stage Built-in graduated mechanical stage 120 X 125 mm with convenient adjustment for manipulation of slide.
Nosepiece Quadruple nosepiece with positive dick stops for precise and smooth alignment of objectives.
Focusing By coarse & fine focusing knobs.
Eyepieces Widefield Eyepiece (NWF 10X).
Objectives Hard anti-reflection coated, colour coded Parfocal Achromatic 10x, 40x and 100x (spring loaded, oil immersion).
Condenser Sub-stage Abbe condenser of 1.25 N.A. focusable with rack and pinion; fitted with an iris diaphragm and filter holder (for blue filter) to facilitate optimum adjustment of light.
Illumination Plano-concave mirror in adjustable fork mount.
Optional Objective achromat 4X, Eyepieces Widefield 15X, Huygenian 5X, 10X, 15X.
Finish Grey or black durable acid resistant epoxycoated finish.
View Complete Details

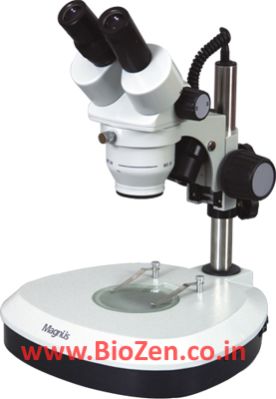

Olympus Opto Stereoscopic Microscope

Model MS: Standard set. Complete with paired Wide field Eyepiece 10x (FN.23) and turret mounted 2x & 4x (or 1x & 3x) in-built objectives. Without light.
Model MS-TIL: With built-in light source. Standard set. Complete with paired Wide field Eyepiece 10x (FN.23) and turret mounted 2x & 4x (Or 1x & 3x) in-built objectives. Light stand ( Incident: 6V 15W Lamp and Transmitted: 5W Fluorescence Lamp). Complete set in thermocol pack.
It has large visual field & high diopter. Magnification range 6.5x 45x with 10x eyepiece. 45 degree inclined having Zoom Ratio 1:7, Objective Zoom Range (0.65 4.5x). Paired Widefield Eyepieces SWF 10x/22mm, working distance 100mm, With in-built Light Stand (Incident : 6V 15W Lamp and Transmitted : 5W Fluorescence Lamp).

View Complete Details

Magnus Laboratory And Clinical Microscopes

Olympus Opto Binocular Microscope model MAGNUS MLX-B

Standard set. With built-in 6V, 20W halogen illuminator, quadruple ball bearing nosepiece. Coaxial coarse & fine focusing controls. Co-axial low drive mechanical stage, substage Abbe condenser (NA 1.25) with iris diaphragm with rack and pinion. High resolution long barrel achromatic objectives 4X, 10X, 40X & 100X (spring, oil imm). Paired Widefield eyepiece WF10X. With a Binocular observation head.
Olympus Opto Monocular Microscope model MAGNUS MLX-M


Standard set. With built-in 6V, 20W halogen illuminator, quadruple ball bearing nosepiece. Coaxial coarse & fine focusing controls. Co-axial low drive mechanical stage, substage Abbe condenser (NA 1.25) with iris diaphragm with rack and pinion. High resolution long barrel achromatic objectives 4X, 10X, 40X & 100X (spring, oil imm). Paired Widefield eyepiece WF10X. With a monocular observation head.
Olympus Opto Binocular Microscope model MAGNUS MLX-i


Standard set. High resolution long barrel infinity corrected PLAN achromatic objectives 4X, 10X, 40X & 100X (spring, oil imm). With a siedentopf binocular observation head. With built-in 6V, 20W halogen illuminator, quadruple ball bearing nosepiece. Coaxial coarse & fine focusing controls. Co-axial low drive mechanical stage, substage Abbe condenser (NA 1.25) with iris diaphragm with rack and pinion. Paired Widefield eyepiece WF10X.
Olympus Opto Binocular Microscope model MAGNUS Theia


Theia- a combination of cutting edge Japanese technology and contemporary European design microscope.The PLAN infinity corrected optics of the Theia-i produce extremely flat, clear and sharp images. The Theia-i optics are multi-layer coated to greatly enhance the light transmission and image contrast. Further, the FN 20 eyepieces provide a wider visualization of the specimen under view.The high quality mechanics and the excellent optics of the Theia-i ensure that its ready to meet the daily rigors and demanding applications of its users. The Theia-i has been developed keeping long term use and durability in mind.

View Complete Details

Olympus Microscope

Focusing by coaxial coarse and fine roller guide (Comfortable position of focusing knobs). Tension adjustment. Quadruple revolving nosepiece. Large stage 120 x 132 mm. With mechanical stage right hand drive. Abbe condenser 1.25, with iris diaphragm, Blue filter. Anti-Fungus Achromatic objectives: iNE 4x, iNE 10x, iNE 40x (spring), iNE 100x (spring, oil Imm.). Paired Eyepiece Wide field iCWHK 10x. In thermocole pack.

Standard set complete with Seidentopf Binocular head, in-built 6V 20W halogen light illuminator, with
Anti-Fungus Plan Achromatic Objectives 4x, 10x, 40x (spring) & 100x (oil, spring), paired eyepieces wide field 10x (F.N.20) in thermocole packing, manufactured under license from Olympus Corporation, Japan.
Features : UIS2 Plan Infinity Optics providing image flatness, Seidentopf observation head for individual choice of adjustment, Anti-fungus treatment for component durability, High eyepoint design eyepiece (F.N.20), Interchangeability of Objectives, the abbe condenser & the light relay system fitted with high performance aspheric lenses for bright & uniform illumination, Window in arm & the Ergonomic design for user convenience, Illumination system through SMPS circuit for constant voltage output, Rackless stage for durability and ease of use, Mechanical stage focus-lock prevents mishaps, Component security - student proof.

View Complete Details
