Elpumps Switzerland GmbH

Lucerne, Switzerland

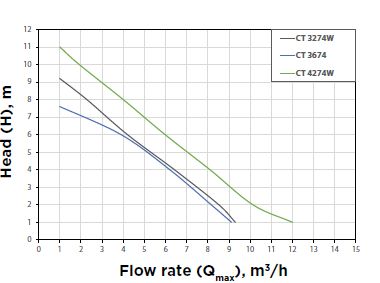

Elpumps submersible pumps for clean and slightly dirty water are renowned for their high efficiency, low long-term costs and high operating reliability, making them ideal for a wide variety of applications. The Elpumps CT series offers high resistance to suspended solids, thermal overload protection and easy maintenance. The pumps can even be fully submerged up to 5 meters for efficient water removal, pumping clean water at low pressure with a flow rate of up to 15, 000 liters/hour thanks to their powerful 600W / 800W motors.

Structure:

The pump motor casing and shaft are composed of INOX stainless steel, and the impeller and other structural elements are made of high-grade, corrosion-proof NORYL PPO polymer. The shaft is jointly sealed with a spring-loaded seal ring (gasket) and a modern slide-ring axial seal.

Features and Benefits:

• Powerful 600W / 800W motor
• Flow rate of up to 15, 000 liters/hour
• Maximum immersion depth of 5 meters
• Maximum suction head of up to 12 meters
• Durable, non-corrosive, rust-proof materials
• The pre-filter screens solid pieces of up to 5 mm
• Drawing water from even 5 mm off the bottom
• Integrated float switch, auto start/stop function
• Fitted with 10-meter H05 RN-F 3G 0.75 mm2
• cable
• Thermal overload protection
• 2-year guarantee

Application

• Automatic pumping of clean water from wells, tanks or reservoirs

• Flood irrigation in greenhouses, horticulture and small-scale agriculture

• Water supply for livestock farming

• Emergency draining of slightly dirty water from flooded areas or rooms

• Lowering groundwater

• Rainwater harvesting

• Emptying of pools, ponds, sumps, flooded

• cellars, flat roofs and boat bilges.

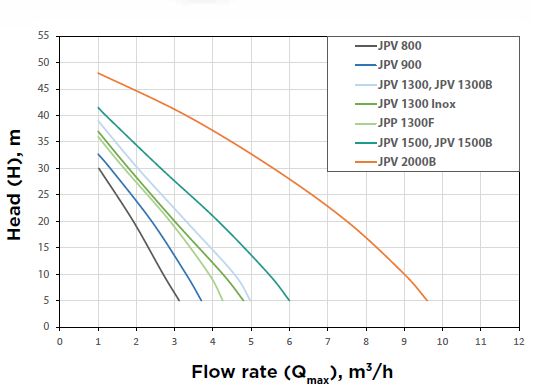

Elpumps JPV/JPP series garden jet pumps can be used to deliver clean water at high pressure, allowing for convenient and safe irrigation with sprinklers, nozzles and a range of other domestic or gardening applications. Elpumps garden jet pumps are made of durable, corrosionproof materials and are available with an INOX stainless steel casing, INOX steel impeller and integrated waterfilter, guaranteeing energy-efficient and quiet operation with high performance and improved reliability. The jet pumps may not be used with saltwater, or aggressive or easily combustible substances, or liquids for human consumption besides water.

Application:

• Automatic pumping of clean water from wells, tanks or reservoirs
• Delivering clean water to operate high-pressure garden irrigation systems
• Creating pressure in water supply systems for small buildings
• Irrigation in greenhouses, horticulture and small-scale agriculture
• Water supply for livestock farming

Structure:The internal structural elements within the jet pumps are composed of high-grade, corrosion-proof and cavitationresistant NORYL PPO polymer or INOX stainless steel, and the pump casing is made of NORYL PPO polymer, cast iron or INOX steel. The shaft is sealed with a modern carbon-ceramic axial seal.

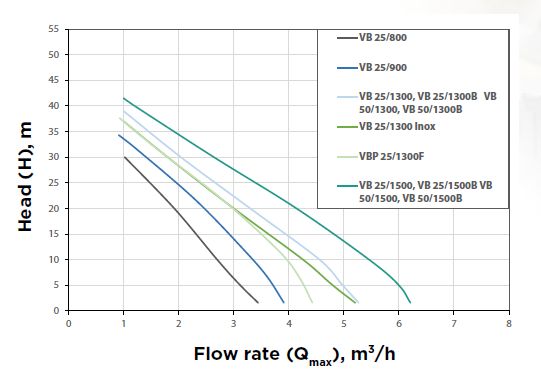

The Elpumps VB/VBP series domestic waterworks offers a complete water supply system with a compact design, delivering clean water from reservoirs or wells to be used in homes or irrigation systems and much more besides. The domestic waterworks are equipped with jet pumps made of durable, corrosion-proof materials, and are available with an INOX stainless steel casing, INOX steel impeller and integrated water filter, guaranteeing energyefficient and quiet operation with high performance and improved reliability. The robust 800W–1500W motors can deliver up to 6, 300 liters of water per hour and generate a continuous water supply with constant pressure. The stainless steel pressure tanks have a capacity of 25 or 50 liters and come with an integrated gauge to read the pressure easily. The domestic waterworks may not be used with saltwater, or aggressive or easily combustible substances, or liquids for human consumption besides water.

Application:Automatic pumping of clean water from wells, tanks or reservoirsDelivering clean water to operate garden irrigation systems under permanent pressureAutomatic water supply to houses and gardens requiring constant pressure

Features and Benefits:

• Powerful 800W–1500W motor
• Integrated pressure gauge
• 25L or 50L pressure tank capacity
• Available with INOX stainless steel pressure tank
• Automatic operation with integrated pressure switch
• Water drain screw for easy draining of residual water
• Durable, non-corrosive, rust-proof materials
• Fitted with 1.5-meter H07 RN-F 3G 1 mm2 cable
• Thermal overload protection
• 2-year guarantee

Strucutre: The internal structural elements in the jet pumps within the waterworks are composed of high-grade, corrosion-proof and cavitation resistant NORYL PPO polymer or INOX stainless steel, and the pump casing is made of NORYL PPO polymer, cast iron or INOX steel. The shaft is sealed with a modern carbon-ceramic axial seal. The high-quality flexible bag in the pressure tank is made of BUTYL rubber.
