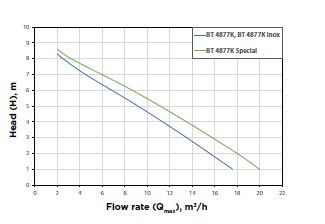

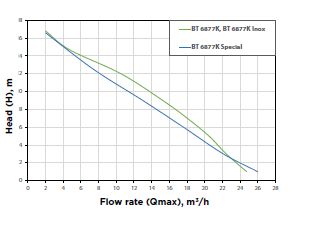

Elpumps submersible cutter pumps for sewage are engineered for maximum reliability and efficiency. The Elpumps BT series is specifically designed for a range of dewatering, drainage and wastewater applications, where solids have to be cut into small particles to enable the liquid to move smoothly and minimize the clogging that may occur with regular pumps. Elpumps cutter pumps can handle waste solids of up to 30 mm and feature automatic shutdown when the water level drops, as well as thermal overload protection. For additional protection, Elpumps cutter pumps are equipped with a residual-current device that instantly breaks the electric circuit when the impeller becomes clogged to prevent serious damage to the motor

Structure: The Elpumps submersible cutter pump casing and shaft are composed of INOX stainless steel, with excellent resistance to aggressive sewage waters. The engine cover is made of corrosion-proof plastic or INOX steel, and the hydraulic case and impeller are made of cast iron. The shaft is sealed with a modern ceramic-silicon axial seal. The durable materials ensure reliable and efficient operation and the long life of the pump.

Application:Pumping of sewage with small solid particles or organic waste, where grinding is necessaryReliable pumping of sewage with dirt particles up to 30 mm in size Draining of slightly dirty water from construction sites Automatic draining of dirty water from cesspools, wells, tanks or reservoirS

Features and Benefits

• Powerful 900W / 1600W motor
• Flow rate of up to 28, 000 liters/hour
• Maximum immersion depth of 5 meters
• Maximum suction head of up to 18 meters
• Durable, non-corrosive, rust-proof materials
• Able to pass solids of up to 30 mm in diameter
• Integrated float switch, auto start/stop function
• Fitted with 10-meter H07 RN-F 3G 1 mm2 cable
• Thermal overload protection
• 2-year guarantee

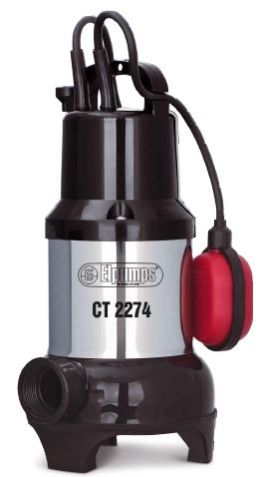

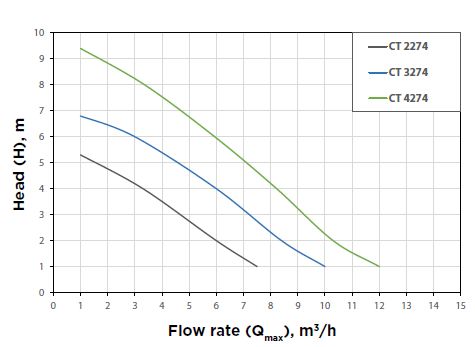

Elpumps submersible pumps for clean, dirty and sewage water are renowned for their high efficiency, low long-term costs and high operating reliability, making them ideal for a wide variety of applications. Elpumps CT series water pumps for sewage offer high resistance to suspended solids, thermal overload protection and easy maintenance. The pumps can be fully submerged up to 5 meters for efficient water removal, pumping clean water at low pressure with a flow rate of up to 15, 000 liters/hour thanks to the powerful 450W / 600W / 800W motors

Application:

• Reliable pumping of sewage with dirt particles up to 30 mm in size
• Draining of slightly dirty water from construction sites
• Automatic draining of dirty water and sewage from cesspools, wells, tanks or reservoirs
• Flood irrigation in greenhouses, horticulture and smallscale agriculture
• Water supply for livestock farming
• Emergency draining of flooded areas or rooms
• Lowering groundwater
• Rainwater harvesting
• Emptying of pools, ponds, sumps and flooded cellars

Structure:The pump motor casing and shaft are composed of INOX stainless steel, and the impeller and other structural elements are made of high-grade, corrosion-proof NORYL PPO polymer. The shaft is jointly sealed with a spring-loaded seal ring (gasket) and a modern slide-ring axial seal.

Features and Benefits

• Powerful 450W / 600W / 800W motor
• Flow rate of up to 15, 000 liters/hour
• Maximum immersion depth of 5 meters
• Maximum suction head of up to 10 meters
• Durable, non-corrosive, rust-proof materials
• Able to pass solids of up to 30 mm in diameter
• Integrated float switch, auto start/stop function
• Fitted with 10-meter H05 RN-F 3G 0.75 mm2 cable
• Thermal overload protection
• 2-year guarantee

Elpumps free-flow (Vortex) submersible pumps provide a free flow-through passage of solids and liquids, minimizing the risk of jamming and low performance. Tough, durable, corrosion-proof materials make these pumps ideal for a wide range of dirty water pumping applications. Each pump is fitted with a low-consumption electric motor with overload protection and a float switch for automatic water level control. Stylish design, improved technology and innovative materials are the main features behind the new Elpumps NEPTUN free-flow (Vortex) pumps, engineered for easy use and extreme reliability. As the Vortex system allows dirty water drainage without fear of the impeller clogging, Elpumps NEPTUN water pumps can be used for domestic and industrial applications where the water, such as groundwater, sewage water or other types of surface water, contains suspended solids of up to 30 mm.

Structure:The pump motor casing and shaft are composed of INOX stainless steel, the hydraulic case is constructed of cast iron or INOX steel, and the impeller is made of high-grade, corrosion-proof NORYL PPO polymer, gray cast iron or INOX steel. The shaft is jointly sealed with a spring-loaded seal ring (gasket) and a modern slide-ring axial seal.

Application:

• Reliable pumping of sewage with dirt particles up to 35 mm in size
• Draining of slightly dirty water from construction sites
• Automatic draining of dirty water from cesspools, wells, tanks or reservoirs
• Flood irrigation in greenhouses, horticulture and smallscale agriculture
• Water supply for livestock farming
• Emergency draining of flooded areas or rooms
• Lowering groundwater
• Rainwater harvesting
• Emptying of pools, ponds, sumps and flooded cellars

Features and Benefits:

• Powerful 800W / 1200W / 1600W motor
• Flow rate of up to 32, 000 liters/hour
• Maximum immersion depth of 5 meters
• Maximum suction head of up to 12 meters
• Durable, non-corrosive, rust-proof materials
• Able to pass solids of up to 35 mm in diameter
• Integrated float switch, auto start/stop function
• Fitted with 10-meter H07 RN-F 3G 0.75/1 mm2 cable
• Thermal overload protection
• Light weight and compact size (8 kg)
• 2-year guarantee
