Chemietron Clean Tech Private Limited

Satellite, Ahmedabad, Gujarat

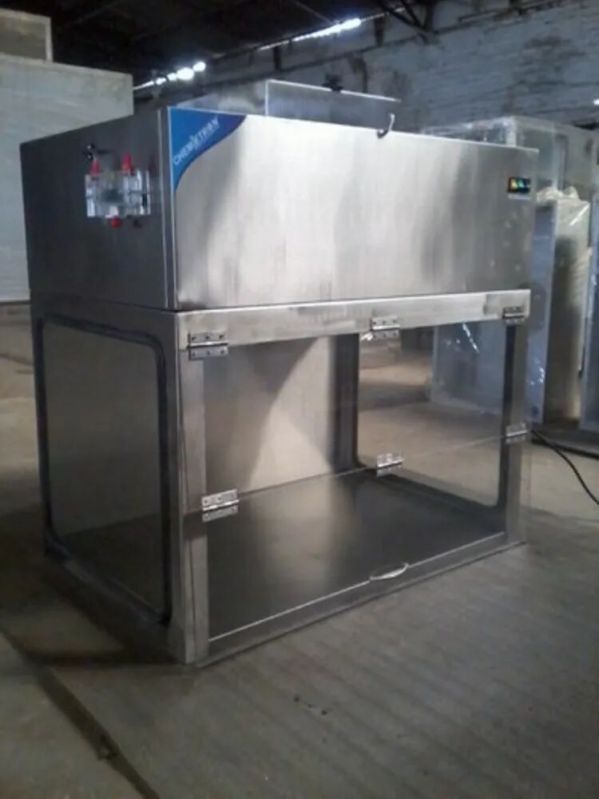

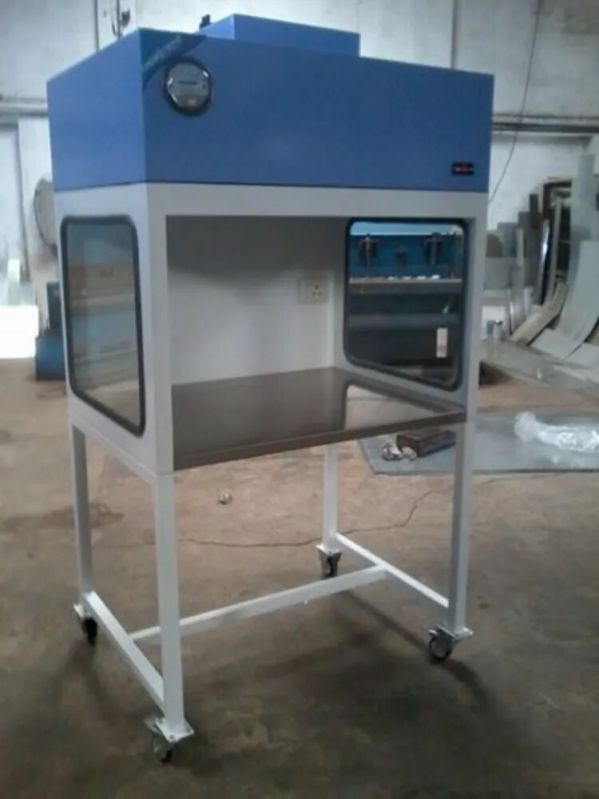

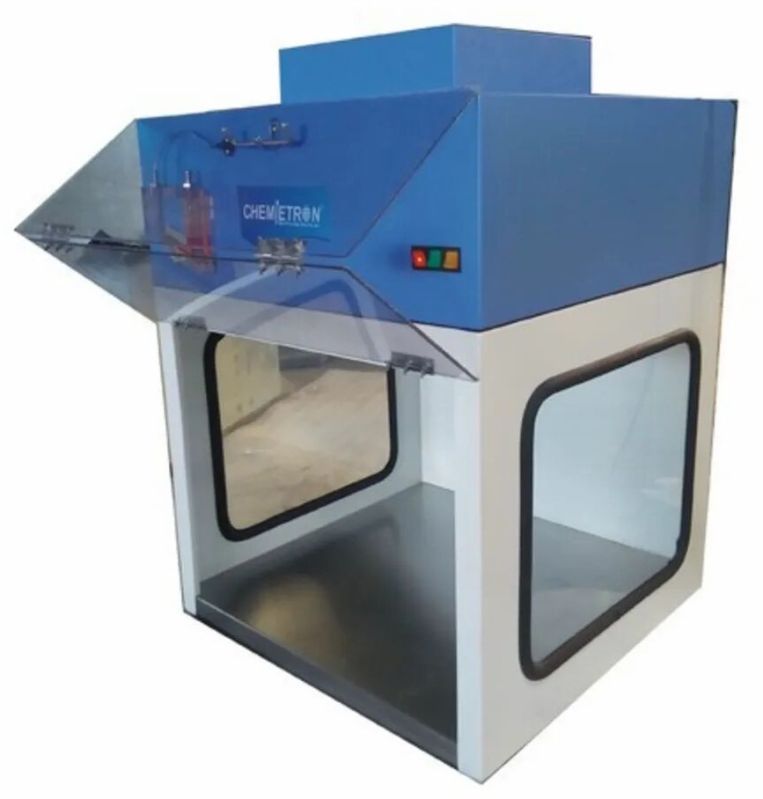

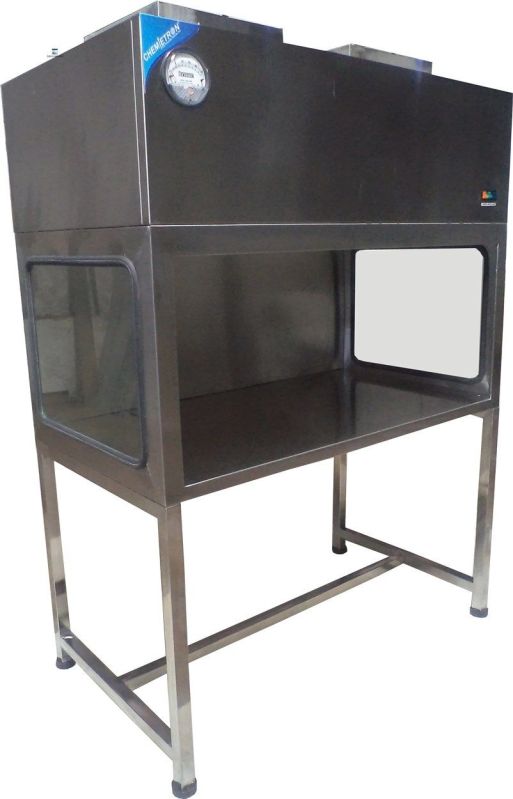

The Laminar Air Flow Work Station is designed to provide a sterile environment for various laboratory applications. Featuring robust stainless steel legs, this workstation ensures stability and durability while facilitating easy cleaning and maintenance. Its advanced air filtration system effectively minimizes contamination, making it ideal for sensitive procedures in research and clinical settings. The ergonomic design enhances user comfort, promoting efficiency and precision in handling delicate materials.

A Unique combination of the most aerodynamicLaminar Airflow Benchdesign with the highest product protection, operator comfort, versatility and reliability. Delivered with a strong table top made of stainless steel or melamine as a standard choice.

Technical Specifications:

• Air cleanliness: ISO Class 5 / Class 100 / M 3.5 AREA
• Air Velocities: 0.45 0.05 mps (90 20 FPM)
• Air Flow: Horizontal / Vertical
• Noise Level: Less than 67 dB
• Vibration Level: Minimum
• Power Supply: 230 V AC, 1-, 50 Hz
• MOC: GI Powder Coated / SS-304 / SS-316
• Side panel with Glass / Polycarbonate / Acrylic
• Two Stage filtration: EU7 - Intermediate Filter (95% down to 3 micron) & EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
• Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
• Fluorescent Lights with Milky White Diffuser
• Differential Pressure Gauges: 01 No. (HEPA Filter)
• ON / OFF Switches (BL / FL / UV)
• Auxiliary Powder Socket: 5/15 Amp for external equipment
• DOP Port: DQ, IQ, OQ, PQ Documentation

Other details:

• Front Door (Counter weighted / Hinged / Flexible PVC Sheet)
• Hour Meter for UV
• Air / Gas cock
• Velocity display with High / Low Alarms
• Filter chocking alarms
• FLP Electrical Goods for Explosion

A Unique combination of the most aerodynamic Laminar Airflow Bench design with the highest product protection, operator comfort, versatility and reliability. Delivered with a strong table top made of stainless steel or melamine as a standard choice.

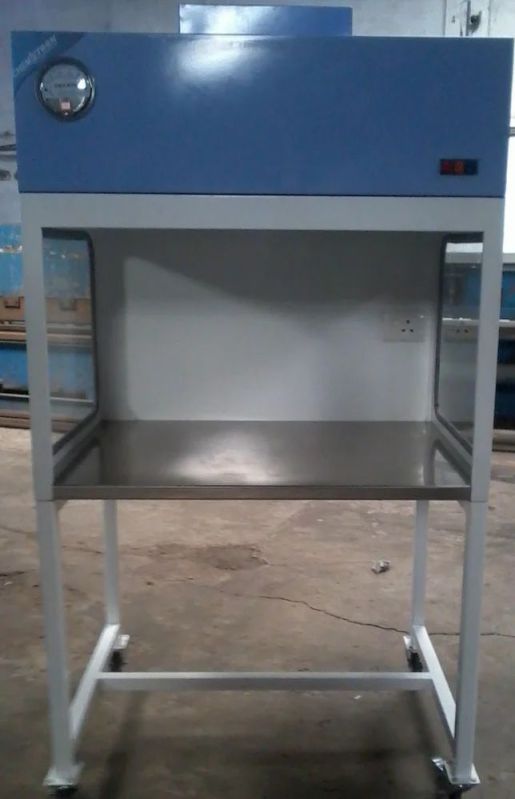

The LAF Work Station is a versatile and ergonomic workspace designed to enhance productivity and comfort. Featuring a sleek design, it incorporates ample storage solutions and adjustable components to accommodate various work styles. Crafted from high-quality materials, this workstation ensures durability while providing a professional aesthetic suitable for any office environment. Its innovative layout promotes organization and efficiency, making it an ideal choice for both individual and collaborative tasks.

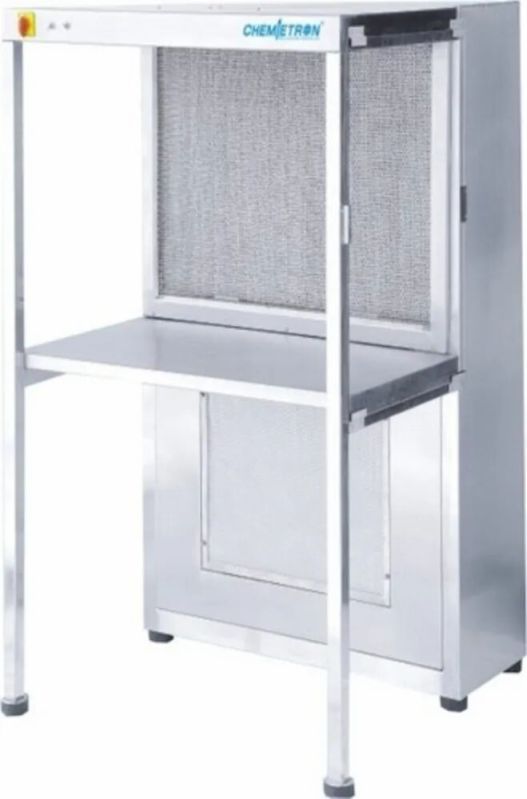

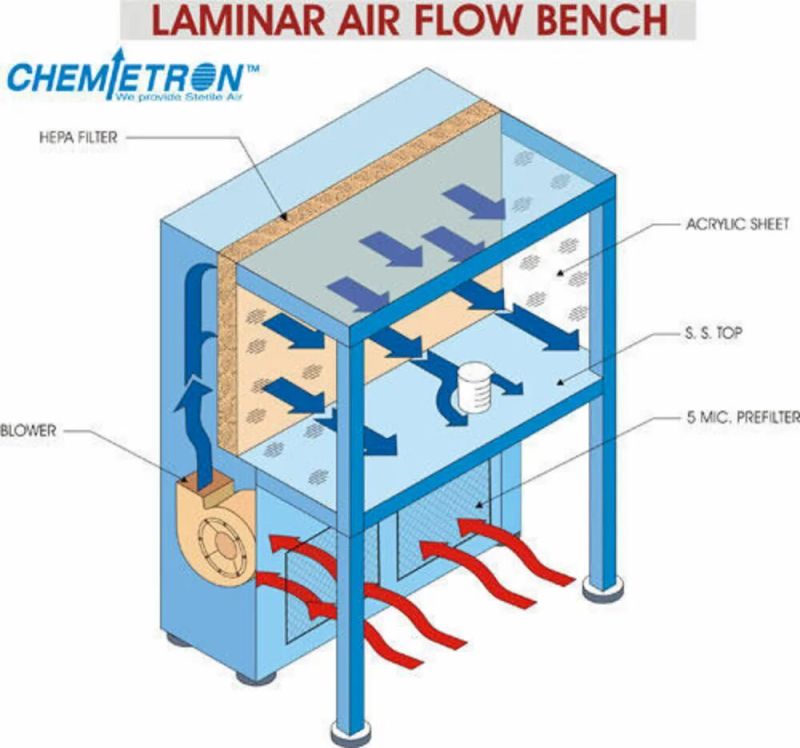

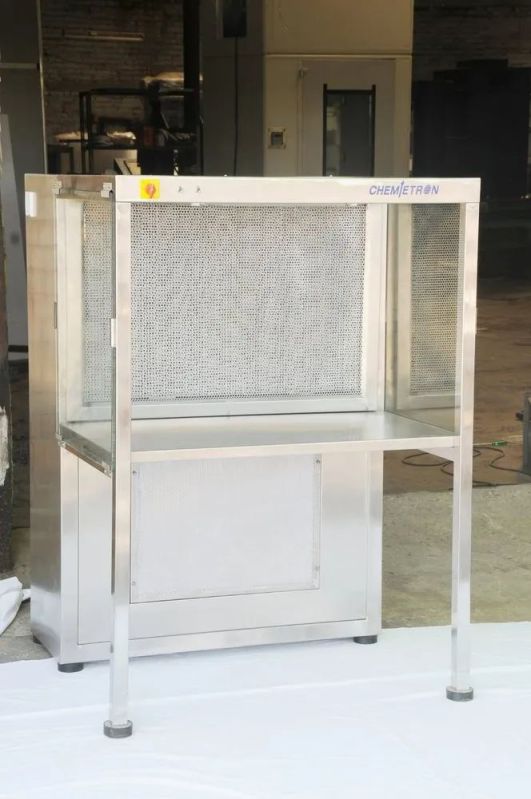

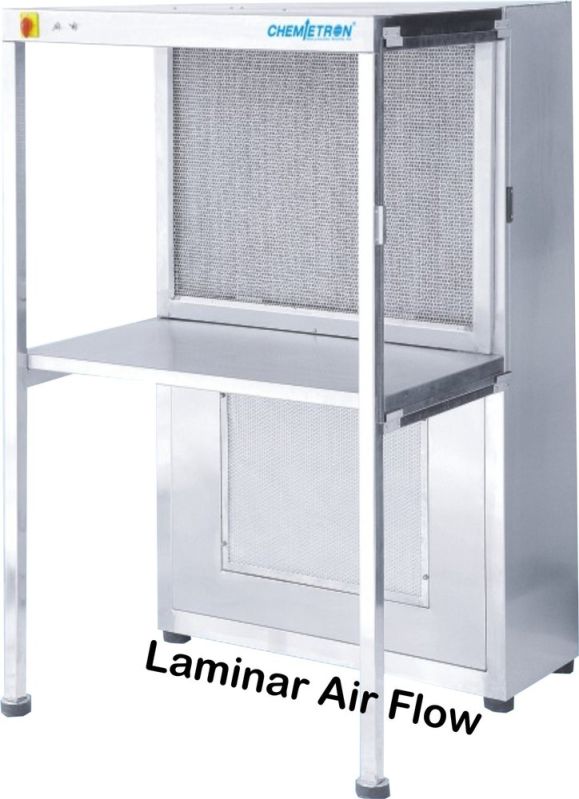

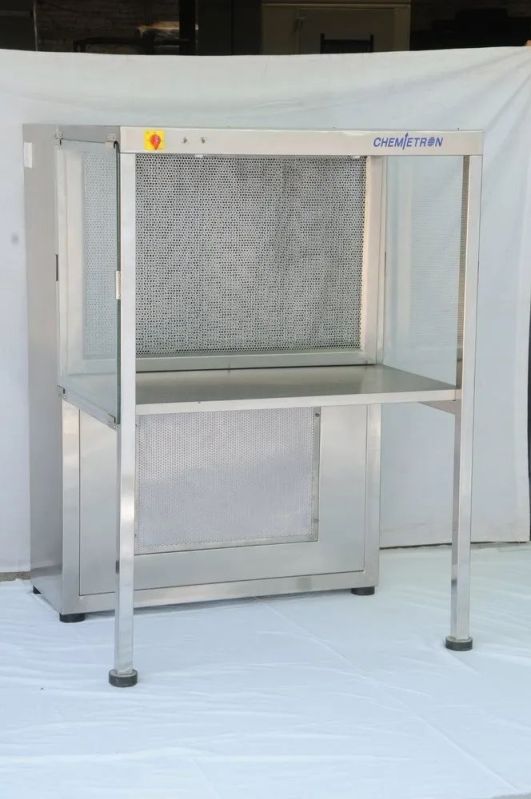

We are offering an excellent quality of Laminar Air Flow Bench (Vertical / Horizontal). A Unique combination of the most aerodynamic design with the highest product protection, operator comfort, versatility and reliability.Delivered with a strong table top made of stainless steel or melamine as a standard choice.
Technical Specifications
* Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
* Air Velocities : 0.45 0.05 mps (90 20 FPM)
* Air Flow : Horizontal / Vertical
* Noise Level : Less than 67 dB
*Vibration Level : Minimum
* POWER SUPPLY : 230V AC, 1-, 50HZ
* MOC : GI Powder Coated / SS-304 / SS-316
* Side panel with Glass / Polycarbonate / Acrylic
* Two Stage filtration
* EU7 - Intermediate Filter (95% down to 3 micron)
* EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
* Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
* Fluorescent Lights with Milky White Diffuser
* Differential Pressure Gauges : 01 No. (HEPA Filter)
* ON/OFF Switches (BL / FL / UV)
* Auxiliary Powder Socket : 5/15 Amp for external equipment
* DOP Port
* DQ, IQ, OQ, PQ Documentation

Additional Information:

• Production Capacity: Our manufacturing area is widely spread, we have large production capacity to meet your requirement
• Delivery Time: As Per Requirement
• Packaging Details: As Per Requirement

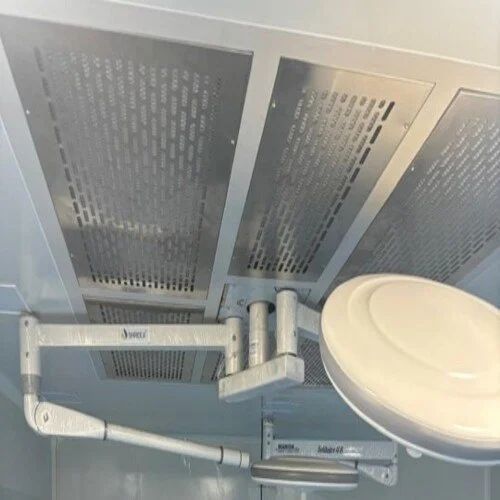

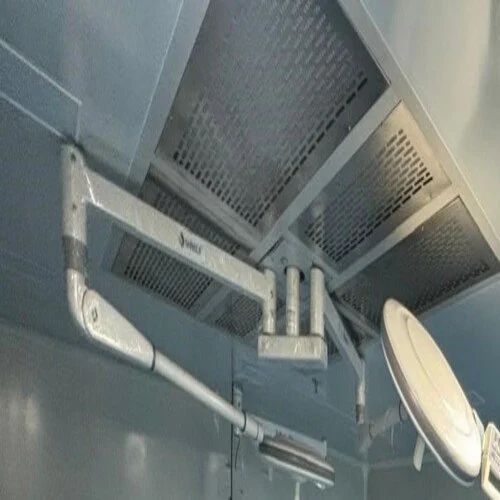

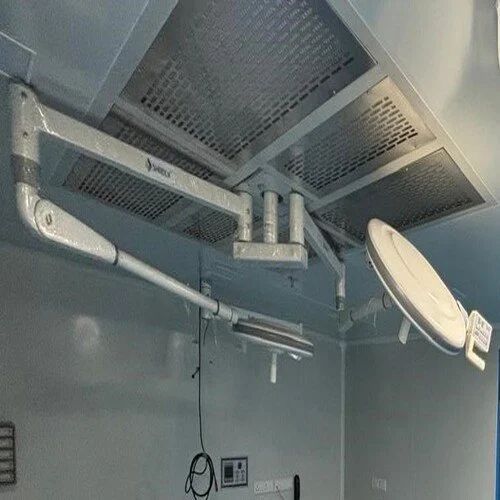

The OT Laminar Air Flow System is designed to provide a sterile environment for surgical and medical procedures. Utilizing advanced filtration technology, it ensures a continuous flow of clean, filtered air, minimizing the risk of airborne contaminants. The system is engineered for optimal performance, featuring adjustable airflow patterns and user-friendly controls, making it suitable for various operating room configurations. Its robust construction and low maintenance requirements enhance reliability and longevity, making it an essential component in modern healthcare facilities.

Flow Direction - Reverse
Material of Construction - GI Powder Coated/ SS 304
HEPA Filter – Mini pleated HEPA Filter down to 0.3mic. Particulate at anefficiency of 99.997% (EU14) duly tested on
DOP tested
Pre-Filters - Pre-Filter down to 5mic. Particulate at an efficiency of 75 to 80% (EU6) enclosed in aluminum frame with epoxy sealing (Washable Type)
Pressure Measurement - 1 No. Meghnehalic Pressure Gauge to check the pressure drop across the HEPA filter.
Electrical - On/Off SwitchFluorescent LightU V Light
Power supply - 230 V, 50Hz, Single Phase
Documents - DQ, IQ, OQ (OUR FACTORY TESTED)
