Pass Box

Leading Manufacturer, Supplier & Retailer of Dynamic Pass Box and Pharmaceutical Pass Box.

Dynamic Pass Box

Dynamic Pass Box
₹ 30,000 / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Material Main Body - SS-304, Door - SS-304
  • Brand Name Chemietron
  • Country of Origin 415+/- 5 V
  • Size 2 X 2 X 2
  • Door Type Swing Type Double Door With View Panel
  • Velocity 15 +/- 5 M/s
  • Air Cleanliness ISO Class 5 / Class 100 / M 3.5 AREA
  • Air Velocities 0.45 +/- 0.05 Mps (90 +/- 20 FPM)
  • Air Flow Horizontal / Vertical
  • Noise Level Less Than 65 DB
  • Vibration Level Minimum
  • Power Supply 230 V AC, 1-Ø, 50 Hz
  • MOC GI Powder Coated / SS-304 / SS-316 / Combination
  • Internal Coving For Easy Cleaning
  • Filtration EU7 - Intermediate Filter (95% Down To 3 Micron), EU14 - HEPA Filter (99.999% Down To 0.3 Micron)
  • Motor-Blower Statically & Dynamically Balanced With Isolator
  • Lights Fluorescent Lights, UV Light
  • Differential Pressure Gauges 01 No. (HEPA Filter)
  • DOP Port DQ, IQ, OQ, PQ Documentation
  • Bottom With Heavy Roller Base For Drum / Material Transfer
  • Flush Level With Ground Level
  • Flange For One Side Flush Mount In Clean Room Partition / Wall
  • FLP Electrical Goods For Explosion Area
  • Model CDPB-24/24, CDPB-30/30, CDPB-36/36
  • Working Area 610 X 610 X 610, 760 X 760 X 760, 915 X 915 X 915
  • Overall Dimension 740 X 660 X 1275, 910 X 810 X 1425, 1065 X 980 X 1580

Our world class range ofDynamic Pass Boxare designed in conformation to the international standards and are used for transferring the material from and into the classified clean room without contaminating the air of clean room. In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.

Technical Specifications:

  • Air cleanliness: ISO Class 5 / Class 100 / M 3.5 AREA
  • Air Velocities: 0.45 0.05 mps (90 20 FPM)
  • Air Flow: Horizontal / Vertical
  • Noise Level: Less than 65 dB
  • Vibration Level: Minimum
  • Power Supply: 230 V AC, 1-, 50 Hz
  • MOC: GI Powder Coated / SS-304 / SS-316 / Combination
  • Door: Swing Type Double Door (Double skinned) with View Panel With SS Hinges & D Handle
  • Internal Coving for easy cleaning
  • Two Stage filtration: EU7 - Intermediate Filter (95% down to 3 micron) & EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
  • Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
  • Fluorescent Lights (interlocked with Door)
  • UV Light (interlocked with Door)
  • Differential Pressure Gauges: 01 No. (HEPA Filter)
  • In close condition of both door: UV Light will be on,
  • In open any one door: UV will off and FL will on
  • DOP Port: DQ, IQ, OQ, PQ Documentation

Other details:

  • Bottom with heavy Roller base for drum / material transfer
  • Flush level with ground level
  • Flange for one side flush mount in clean room partition / wall
  • FLP Electrical Goods for Explosion area

Specifications:

Model Working Areaw x d x h Over All DimensionW X D X H
CDPB-24/24 610 x 610 x 610 740 x 660 x 1275
CDPB-30/30 760 x 760 x 760 910 x 810 x 1425
CDPB-36/36 915 x 915 x 915 1065 x 980 x 1580
View Complete Details
Ask Latest Price & Details

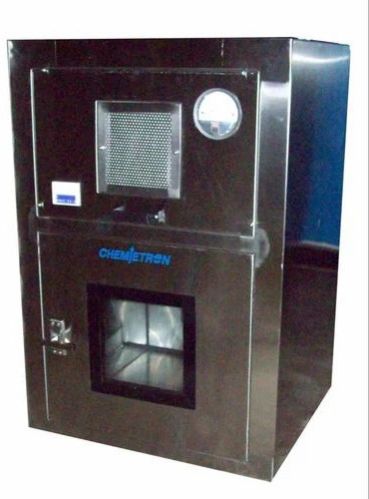

Pharmaceutical Pass Box

Pharmaceutical Pass Box
₹ 30,000 / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Number Of Flower Pass Box
  • Material Commercial Board
  • Application Pharmaceutical
  • Feature Laminated External & Internal Surfaces, Electrically Interlocked Type Doors, Hinged Door With Glass Viewing Window, U.V. & Fluorescent Light And HEPA Filter, Standard Size Of 24
  • Packaging Box

Keeping pace with cutting edge technology, we offer superior qualityPass Box(Static & Dynamic), which are widely used for transferring the material from and into the clean room, without contaminating the air of clean room & without having to open room door. These pass boxes can be installed on the wall between the clean room and other room. We offer these pass boxes in different standard and customized sizes at market leading prices.

Features:

  • Made of commercial board
  • Laminated external & internal surfaces
  • Electrically interlocked type doors
  • Hinged door with glass viewing window
  • U.V. & fluorescent light and HEPA filter
  • Standard size of 24 "(W) x 24 " (H) x 24 " (D)
View Complete Details
Ask Latest Price & Details
