Vickers Hardness Tester

Vickers hardness tester

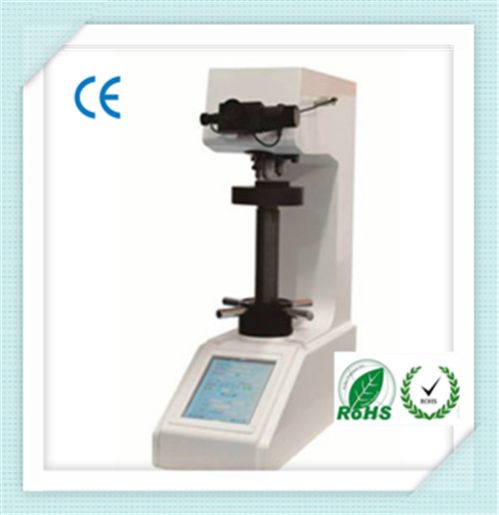

Micro Vickers Hardness Testers

Min. Order (MOQ) 1 Set(s)
Brand Name JUNG

We are offering Technical Specifications: Model HV-1M Test force 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) Data output LCD screen display Max Height of Specimen 80mm Distance of Indenter to outer wall 95mm X-Y Testing table Dimension: 100*100mm Max mobile: 25*25mm Conversion Scale HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T Hardness measuring range 82900HV Turret Automatic method of testing force applied Automatic(Loading, Dwell, Unloading) Test microscope magnification 400X(Measuring), 100X(observation) Duration time 060s Power supply AC220V+5%, 50-60Hz Overall Dimension 405*290*480mm Net weight About25Kg Standard Accessories: Item Quantity Item Quantity Weight shaft 1 Weight 6 Cross clamping testing table 1 Flat clamping testing table 1 Filament clamping testing table 1 Thin Specimen Testing Table 1 Screw driver 2 Level adjustment screw components 4 Level bubble 1 Objective 10X 1 Micro Vickers hardness block (High, Low) Each 1 Fuse(2A) 2 Power cable 1 Product Certificate Manual 1

Additional Information:

Payment Terms : T/T

Delivery Time : 30days

View Complete Details

Ask Latest Price & Details

Digital Automatic Turret Vickers Hardness Tester

Min. Order (MOQ) 1 Set(s)
Brand Name JUNG
Country of Origin china

Digital Automatic Turret Vickers hardness tester Technical Specifications: Model HV-250DX Test force (Kgf) 10, 20, 30, 50, 60, 100, 120, 150, 200, 250;(KgF) Hardness measuring range 8HV2900HV Min measuring unit 0.125m method of testing force applied Automatic loading, unloading testing force Test microscope magnification 25X, 50X, 100X(100X :option) Duration time 099S Data output U disk Max Height of Specimen 170MM Distance of Indenter to outer wall 200mm Power AC220V+5%, 50-60Hz Dimension L*W*H(720*190*650)mm Weight 40Kg

Additional Information:

Payment Terms : T/T

View Complete Details

Ask Latest Price & Details

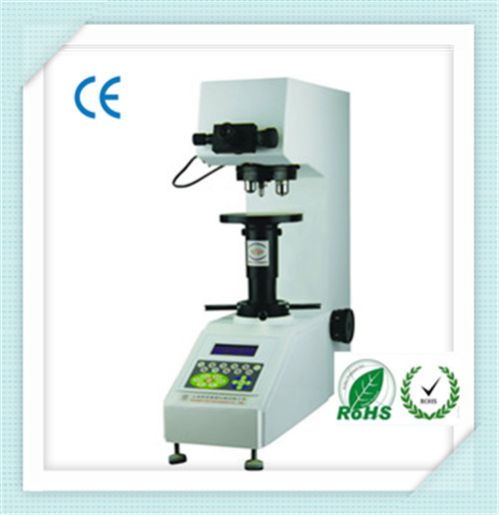

Automatic Turret Vickers Hardness Tester

Min. Order (MOQ) 1 Set(s)
Brand Name JUNG
Country of Origin china

Technical Specifications: Model HV-50M Min measuring unit 0.125m (option:0.0625um) Test force 1.0Kgf(9.8N), 5.0Kgf(49.0N), 10Kgf(98.0N), 20Kgf(196N), 30Kgf(294N), 50Kgf(490N) Max Height of Specimen 180mm Distance of Indenter to outer wall 160mm Hardness measuring range 45900HV method of testing force applied Automatic loading, unloading testing force Test microscope magnification 200X(Measuring), 100X(observation) Duration time 099s Power supply AC220V+5%, 50-60Hz Overall Dimension 520*190*650mm Net weight About40Kg

Additional Information:

Payment Terms : T/T

View Complete Details

Ask Latest Price & Details
