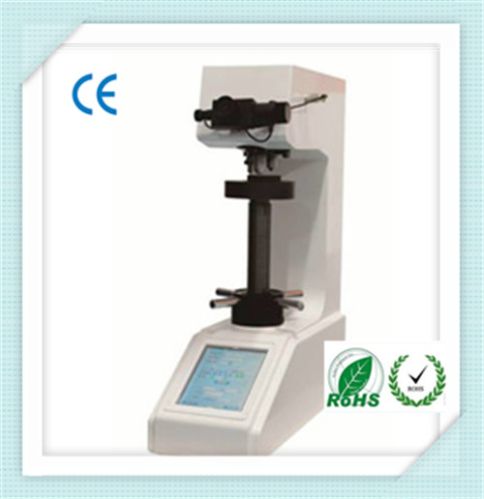

Micro Vickers Hardness Testers, Brand Name : JUNG

MOQ1 Set(s)
Brand NameJUNG
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering Technical Specifications: Model HV-1M Test force 10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N) Data output LCD....

View More Details

Send Enquiry

Company Information

JUNG(Shanghai) Instruments Co., Ltd

shanghai

View Number

Member Since 12 Years
Nature of Business Exporter
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are offering Technical Specifications:
Model
HV-1M
Test force
10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N)
Data output
LCD screen display
Max Height of Specimen
80mm
Distance of Indenter to outer wall
95mm
X-Y Testing table
Dimension: 100*100mm Max mobile: 25*25mm
Conversion Scale
HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Hardness measuring range
8~2900HV
Turret
Automatic
method of testing force applied
Automatic(Loading, Dwell, Unloading)
Test microscope magnification
400X(Measuring),100X(observation)
Duration time
0~60s
Power supply
AC220V+5%,50-60Hz
Overall Dimension
405*290*480mm
Net weight
About25Kg
Standard Accessories:
Item
Quantity
Item
Quantity
Weight shaft
1
Weight
6
Cross clamping testing table
1
Flat clamping testing table
1
Filament clamping testing table
1
Thin Specimen Testing Table
1
Screw driver
2
Level adjustment screw components
4
Level bubble
1
Objective 10X
1
Micro Vickers hardness block (High, Low)
Each 1
Fuse(2A)
2
Power cable
1
Product Certificate
Manual
1
