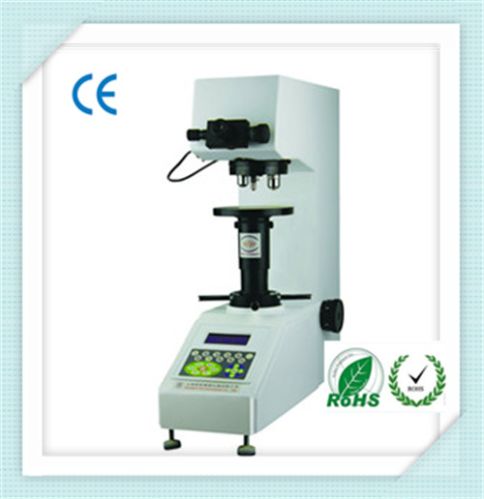

Automatic Turret Vickers Hardness Tester, Brand Name : JUNG

Technical Specifications: Model HV-50M Min measuring unit 0.125µm (option:0.0625um) Test force 1.0Kgf(9.8N),5.0Kgf(49.0N),10Kgf(98.0N),20Kgf(196N),30Kgf(294N),50Kgf(490N) Max Height of Specimen 180mm Distance of Indenter to outer wall 160mm Hardness measuring range 4~5900HV method of testing force applied Automatic loading, unloading testing force Test microscope magnification 200X(Measuring),100X(observation) Duration time 0~99s Power supply AC220V+5%,50-60Hz Overall Dimension 520*190*650mm Net
