China Ivy Valve Manufacturing Company

Wenzhou, China

We are offering cast steel globe valve.Brief description: used to cut or connect the pipe media under nominal pressure class, working temperature -29 to 800 degrees in industries including oil, chemistry, pharmaceutical, fertilizer, and power industry. Body materials are carbon steel, alloy steel, stainless steel basic design standards: basic design: bs 1873, ansi b16.34face to face: ansi b16.10flanges: up to 24-inch ansi b16.5 from 26-inch mss sp44 ansi b16.47butt-weld ends: ansi b16.25testing: api 598 body materials: carbon, alloy and stainless steel, wcb, lcb, wc1, wc6, wc9, c5, c12, cf3, cf3m, cf8, cf8m and monelpressure: ansi class 150 to 2, 500 (pn1.6 to 42mpa)connection: flanged and butt-weldedcast steel globe valves 150lb-1500lbsize: 2 to 36 inches (50 to 900mm) features: outside screw & yokebolted bonnetscrew seat ring up to 6-inchwelded seat ring from 8-inchavailable with gear operatorspecial features according to customers requirements

We are offering forged steel y-pattern globe valve.Description: y-pattern globe valves are available in three bonnet designs. 1) bolted bonnet, with male-female joint, spiral wound gasket, made in f304lgraphite. Ring joint gaskets are also available on request. 2) welded bonnet, with a threaded and seal welded joint. On request a full penetration strength welded joint is available. 3) pressure seal bonnet, with a threaded and pressure seal bonnet joint. standard:1) design and manufacture standards: api602 2) face to face: ansi b16.10 3) connection dimensions: ansi b16.5 4) test and inspection standards: api 598 specifications pressure: 150lb-1500lb temperature of medium: depends on body material medium: gas, liquid, steam, etc size: 12 inch -2 inchmaterial: forged steel, a105, a182 f316, a182 f304 etc

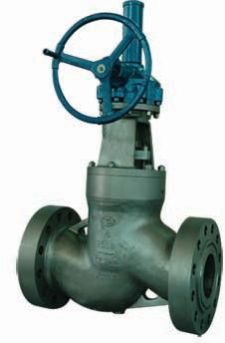

We are offering high pressure seal globe valve.Description: high pressure sealed globe valve is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc. standard: design and manufacture: ansi b16.34, bs1873 face to face (end to end): ansi b16.10 flanged connection: ansi b16.5 butt welded end: ansi b16.25 test and inspection: api598. specifications pressure: 600lb-2500lb temperature of medium: depends on body material medium: gas, water, oil size: 12 inch -8 inch material: wcb, lcb, wc6, wc9, c12, c5, cf8, cf3, cf3m, cf8m features: 1. rational structure , reliable sealing , excellent performance and nice molding 2. regardless of operating temperature changes, the bonnet joint remains leak proof. This is insured by stainless steel inlay in the body gasket area. The sealing pressure is directly proportional to the internal pressure. Advanced pressure seal design and pure graphite gasket rings to ensure high tightness and to comply with the health, safety and environment requirements.
