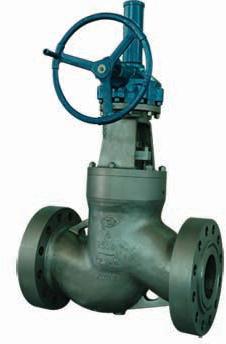

Contact SupplierWe are offering high pressure seal globe valve.
Description:
high pressure sealed globe valve is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc.
standard:
design and manufacture: ansi b16.34, bs1873
face to face (end to end): ansi b16.10
flanged connection: ansi b16.5
butt welded end: ansi b16.25
test and inspection: api598.
specifications
pressure: 600lb-2500lb
temperature of medium: depends on body material
medium: gas, water, oil
size: 12 inch -8 inch
material: wcb, lcb, wc6, wc9, c12, c5, cf8, cf3, cf3m, cf8m
features:
1. rational structure ,reliable sealing ,excellent performance and nice molding
2. regardless of operating –temperature changes, the bonnet joint remains leak proof. This is insured by stainless steel inlay in the body gasket area. The sealing pressure is directly proportional to the internal pressure.
Advanced pressure seal design and pure graphite gasket rings to ensure high tightness and to comply with the health, safety and environment requirements.
