Based in China we are an esteemed manufacturer, exporter and supplier of Single Screw Pump. This Single Screw Pump comprises of a stator with two-start female thread and a rotor with single-start screw. This Screw Pump is primarily used for pumping neutral or corrosive liquids, uncontaminated or abrasive liquids, liquids containing gases or which tends to froth, and liquids of high or low viscosity, including liquids containing fibrous and solid material. Designed to suit the requirements of all types of industries, these Screw Pumps are the most preferred type of Screw Pumps. They have vast range of applications in food industry, textile mills, paper-making, chemical industry, ship building, building industry and nuclear industry.

Product Features :

• The essential part consists of combination of a stator with two-start female thread and a rotor with single-start screw. When the driving-shaft cases the rotor in planetary motion by the universal coupling, between the stator and the rotor, being in mesh continually, formed may spaces. As these spaces unchanged in volume are axial moving, the medium handled is transmitted to the outlet port from the inlet port. The liquid transmitted to get not confused or disruptive, thus it is the most suitable for lifting mediums containing solid matter abrasive particles and viscous liquids.
• It is used for pumping neutral or corrosive liquids, uncontaminated or abrasive liquids, liquids containing gases or which tends to froth, and liquids of high or low viscosity, including liquids containing fibrous and solid material.

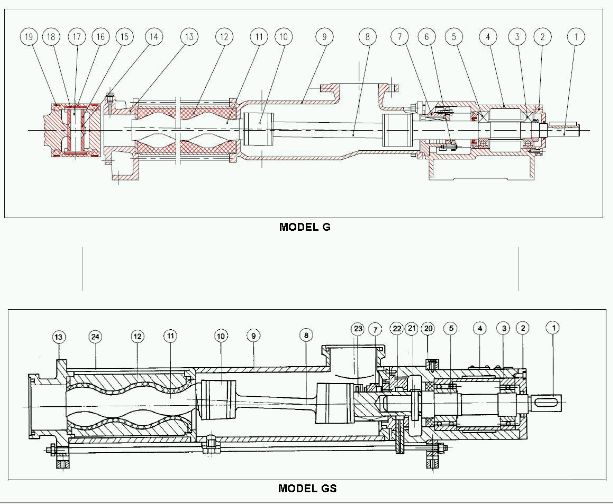

• G type is the main range of our eccentric pump, it is used widely in various fields.

Design :

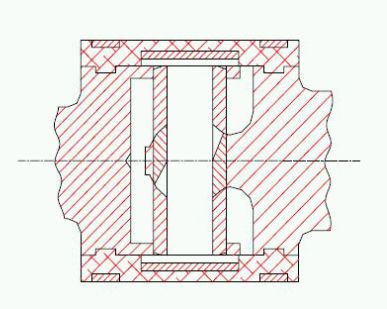

• The coupling rod terminates at both ends in pintype universal joints. The pin and bushing are made of special
• metal, the durability of the joint is improved greatly. Simple construction, easy and puick to dismantle.(Fig.1)
• Stator provided at both ends with external collars vulcanized joint, which provide a safe seal to the suction and discharge section. It protects the stator casing against corrosion.
• Between the suction casing and bearing housing is situated an interchangeable housing for a stuffing box or mechanical seal (pumps can be converted retrospectively to different type of seal).

Applications :

• Food industry - To transfer spirit or wine, waste residue and addition in brewery.
• Textile mill - To transfer synthetic field liquid viscose liquid.
• Paper-making - To transfer black pulp.
• Petro-industry - In handling various oil, grease products.
• Chemical industry - To transfer suspended liquid, emulsion liquid, acid liquid, soda liquid and salt liquid.
• Ship building - To transfer residue oil, to be the butterworth pump, sewage pump and sea water pump ect.
• Build industry - To transfer the mortar and plaster.
• Nuclear industry - To transfer the radioactive liquid.
• Metallurgical and mine - To transfer oxide and waste water, liquid explosive and drain off water from mine.
• Power plant - To transfer the pulp of coal and liquid
