Constant Acceleration Tester

Leading Manufacturer, Supplier & Retailer of Centrifugal Constant Acceleration Tester (Arm Type), KRD30-10 Box Type Centrifugal Constant Acceleration Test Machine, Centrifugal Constant Acceleration Tester (Box Type), KRD32 Non-standard Centrifugal Constant Acceleration Tester and KRD32-1 Dual-environment constant acceleration tester.

Centrifugal Constant Acceleration Tester (Arm Type)

Centrifugal Constant Acceleration Tester (Arm Type)
₹ 9.05 Lakh - ₹ 90.50 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 1 Set(s)
  • Number Of Flower Testing Instruments
  • Application Testing Use
  • Total Carbohydrate 1year
  • Brand Name CME
  • Certification IEC68-2-7
  • Weight 2500-12000
  • Voltage 380V
  • Usage testing
  • Name Centrifugal Constant Acceleration Tester
krd31 series constant acceleration tester are used to test articles under extreme acceleration conditions based on standard like mil-std-810f, mil-std-202 and iec68-2-7. It is most suitable for testing electronic components or devices. under high g effect on microcircuits, to check adaptability and reliability of wiring and the internal structures. it may expose mechanical and structural defects that are not found with vibration and shock tests.

Additional Information:

Payment Terms : T/T

Packaging Details : box

Delivery Time : 90 days

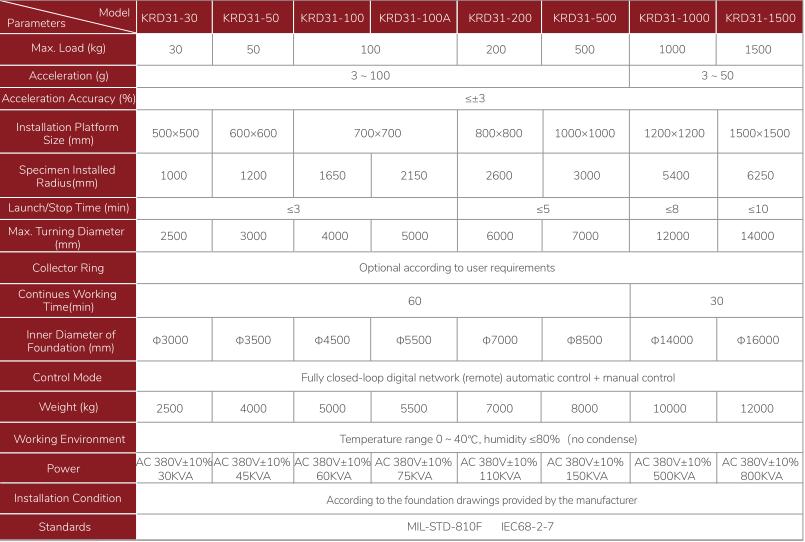

Technical Specifications

           Model

Parameters

KRD

31－30

KRD

31－50

KRD

31－100

KRD

31－100A

KRD

31－200

KRD

31－500

KRD

31－1000

KRD

31－1500

Max. Load

(kg)

30

50

100

200

500

1000

1500

Installation Platform Size (mm)

 500×500

 600×600

 700×700

 800×800

1000×1000

1200×1200

1500×1500

Acceleration

(g)

0.5～100

0.5～50

Acceleration Accuracy (%)

≤±3

Specimen Installed Radius

(mm)

1000

1200

1650

2150

2600

3000

5400

6250

Max Turning Diameter (mm)

2500

3000

4000

5000

6000

7000

12000

14000

Launch/Stop Time

(Min)

≤3

≤5

≤8

≤10

Continues Working Time(min)

60

30

Inner Diameter of

Foundation (mm)

Φ3000

Φ3500

Φ4500

Φ5500

Φ7000

Φ8500

Φ14000

Φ16000

Collector Ring

Optional according to user requirements

Weight

(kg)

2500

4000

5000

5500

7000

8000

10000

12000

Power Supply

AC 380V±10％ 30KVA

AC 380V±10％ 45KVA

AC 380V±10％ 60KVA

AC380V±10％ 75KVA

AC380V±10％ 110KVA

AC380V±10％ 150KVA

AC380V±10％ 500KVA

AC380V±10％ 800KVA

Control Mode

Fully closed-loop digital network (remote) automatic control + manual control

Remarks

Collector ring and control accuracy can be configured in accordance with relevant standards or user requirements.

Working

Environment

Temperature range 0～40℃, humidity ≤80%（no condense)

Standards

   MIL-STD-810F       IEC68-2-7

Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
KRD30-10 Box Type Centrifugal Constant Acceleration Test Machine

KRD30-10 Box Type Centrifugal Constant Acceleration Test Machine
₹ 9.05 Lakh - ₹ 90.50 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 1 SET
  • Number Of Flower Testing Instruments
  • Certification IEC68-2-7
  • Application Testing Use
  • Availability 1000-1500kg
  • Country of Origin 380V
  • Total Carbohydrate 1year
  • Brand Name CME
  • Standard MIL-STD-810F
krd30 series centrifugal constant acceleration test machine is used to evaluate when components, equipment and other electrical and electronic products are subjected to constant acceleration environment (except gravity), whether the structure adaptability and performance are good, and obtain the units electrical parameters. advanced control system: full-automatic computer remote real-time control interface. the operator only needs to input simple values to start the equipment and complete the acceleration test accurately. user-friendly display interface: the control interface can display the test curve, tolerance and test time in real time. powerful multi-acceleration continuous test system: it can realize multi-level acceleration continuous test according to the different requirements of the test sample. reliable protection measures: open circuit, over-limit and over-speed protection can be realized. multiple control methods: in the case of automatic control failure or no need of automatic control, the device can still use manual control to complete the test. convenient and quick result output system: after the test, the test report is automatically generated and printed out.

Additional Information:

Payment Terms : T/T

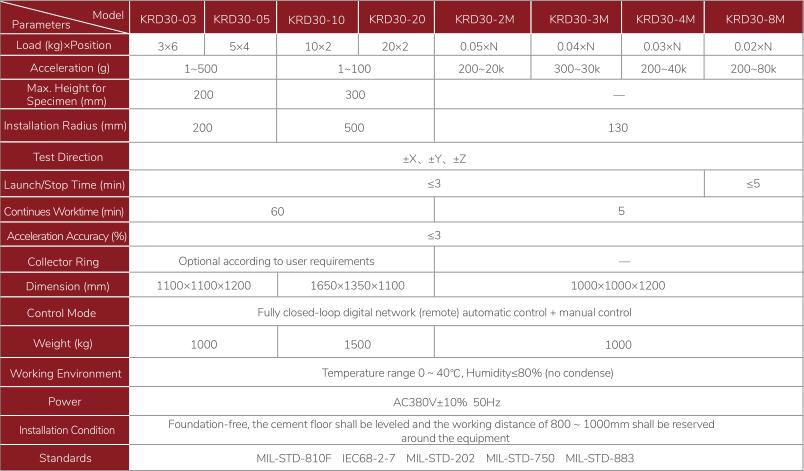

Technical Specifications

            Model

Parameters

KRD30－3

KRD30－5

KRD30－10

KRD30－20

KRD30－2M

KRD30－3M

KRD30－4M

KRD30－8M

Load (kg) * Position

3×6

5×4

10×2

20×2

0.05×N

0.04×N

0.03×N

0.02×N

Acceleration (g)

1～500

1～100

200～20k

200～30k

200～40k

200～80k

Max. Height for

Specimen (mm)

200

300

/

Installation Radius (mm)

200

500

130

Test Direction

±X, ±Y ±Z

Launch/Stop Time (Min)

≤3

≤5

Continues Worktime

(Min)

60

5

Acceleration Accuracy (%)

≤3

Overall Dimension (mm)

1100×1100×1200

1650×1350×1100

1000×1000×1200

Collector Ring

Optional according to user requirements

/

Weight (kg)

1000

1500

1000

Power Supply

AC380V±10%
, 50/60Hz

Control Mode

Fully closed-loop digital network (remote) automatic control + manual control

Remarks

The current collector and the control precision can be in accordance the related standards or customer requirements

Working

Environment

Temperature Range 0～40℃, Humidity≤80% (no condense)

Standards

MIL-STD-810F    IEC68-2-7   MIL-STD-202   MIL-STD-750  MIL-STD-883


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Centrifugal Constant Acceleration Tester (Box Type)

Centrifugal Constant Acceleration Tester (Box Type)
₹ 9.05 Lakh - ₹ 90.50 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 1 Set(s)
  • Number Of Flower Testing Instruments
  • Certification IEC68-2-7
  • Application Testing Use
  • Country of Origin 380V
  • Total Carbohydrate 1year
  • Brand Name CME
  • Usage testing
  • Name Centrifugal Constant Acceleration Tester
  • Standard MIL-STD-810F
KRD30 series centrifugal constant acceleration test machine is used to evaluate when components, equipment and other electrical and electronic products are subjected to constant acceleration environment (except gravity), whether the structure adaptability and performance are good, and obtain the units electrical parameters. 1. advanced control system: full-automatic computer remote real-time control interface. the operator only needs to input simple values to start the equipment and complete the acceleration test accurately. 2. user-friendly display interface: the control interface can display the test curve, tolerance and test time in real time. 3. powerful multi-acceleration continuous test system: it can realize multi-level acceleration continuous test according to the different requirements of the test sample. 4. reliable protection measures: open circuit, over-limit and over-speed protection can be realized. 5. multiple control methods: in the case of automatic control failure or no need of automatic control, the device can still use manual control to complete the test. 6. convenient and quick result output system: after the test, the test report is automatically generated and printed out.Technical Specifications ModelParameters KRD303 KRD305 KRD3010 KRD3020 KRD302M KRD303M KRD304M KRD308M Load (kg) * Position 36 54 102 202 0.05N 0.04N 0.03N 0.02N Acceleration (g) 1500 1100 20020k 20030k 20040k 20080k Max. Height forSpecimen (mm) 200 300 / Installation Radius (mm) 200 500 130 Test Direction X, Y Z Launch/Stop Time (Min) 3 5 Continues Worktime(Min) 60 5 Acceleration Accuracy (%) 3 Overall Dimension (mm) 110011001200 165013501100 100010001200 Collector Ring Optional according to user requirements / Weight (kg) 1000 1500 1000 Power Supply AC380V10%, 50/60Hz Control Mode Fully closed-loop digital network (remote) automatic control + manual control Remarks The current collector and the control precision can be in accordance the related standards or customer requirements WorkingEnvironment Temperature Range 040, Humidity80% (no condense) Standards MIL-STD-810F IEC68-2-7 MIL-STD-202 MIL-STD-750 MIL-STD-883

Additional Information:

Payment Terms : T/T

Packaging Details : box

Delivery Time : 90 days

View Complete Details
Ask Latest Price & Details
KRD32 Non-standard Centrifugal Constant Acceleration Tester

KRD32 Non-standard Centrifugal Constant Acceleration Tester
₹ 9.05 Lakh - ₹ 90.50 Lakh / Set Get Latest Price
  • Min. Order (MOQ) 1 Set
  • Number Of Flower Constant Acceleration Tester
  • Automation Grade Automatic
  • Phase Three Phase
  • Material Stainless Steel
  • Brand Name CME
  • Country of Origin 380V
  • Operating Mode Automatic
  • Total Carbohydrate 1 Year
  • Condition New
  • Specialities Easy To Operate
  • Country of Origin China
  • Power Supply AC 380V ±10％ 50Hz
  • Working Environment Temperature range 0～40℃, humidity ≤80%（no condense)
KRD32 series non-standard centrifugal constant acceleration testing machine is test equipment for military products to simulate dynamic centrifugal motion, dual-environmental force centrifugal motion and central high-speed rotating motion, so as to assess the anti-load performance of electronic components, small components and other electrical and electronic products and detect the anti-load performance specifications. It is mainly used for routine dynamic structural integrity and adaptability tests of components, small parts and small complete machine on aircraft. The acceleration rising rate is large. Computer centralized control and measurement. Fully digital network closed-loop remote control, high control accuracy Complete safety protection functions

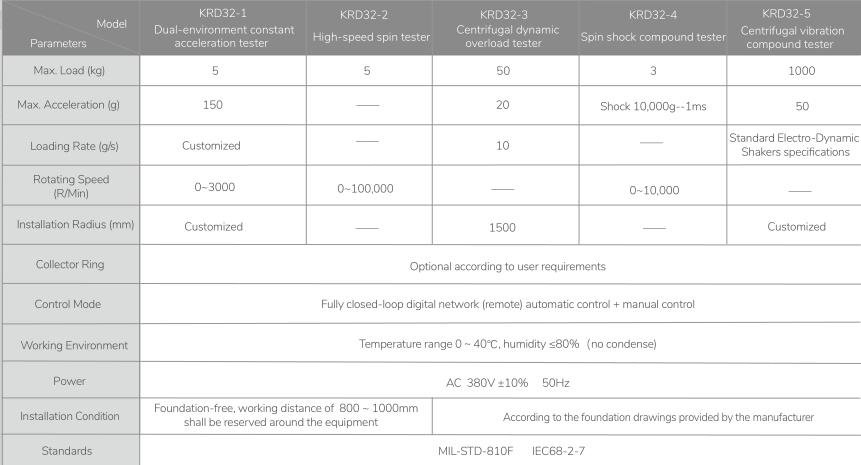

Technical Specifications

        Model

Parameters

KRD32－1

KRD32－2

KRD32－3

KRD32－4

KRD32－5

Dual-environment constant acceleration tester

High-speed spin tester

Centrifugal dynamic overload tester

Spin shock compound tester

Centrifugal vibration compound tester

Max. Load (kg)

5

5

50

3

1000

Max Acceleration (g)

150

/

20

Shock 10000g--1ms

50g

Loading Rate (g/s)

Customized

/

10

/

Standard Electro-Dynamic Shakers specifications

Installation Radius (mm)

Customized

/

1500

/

Customized

Max. Rotating Speed

(R/Min)

0-3000

0-100000

/

0-10000

/

Collector Ring

Optional according to user requirements

Control Method

Fully closed-loop digital network (remote) automatic control + manual control

Power Supply

AC 380V ± 10％  50Hz

Working

Environment

Temperature range 0～40℃, humidity ≤80%（no condense)

Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
KRD32-1 Dual-environment Constant Acceleration Tester

KRD32-1 Dual-environment Constant Acceleration Tester
₹ 9.05 Lakh - ₹ 90.50 Lakh / SET Get Latest Price
  • Min. Order (MOQ) 1 SET
  • Number Of Flower Constant Acceleration Tester
  • Brand Name CME
  • Country of Origin 380V
  • Condition New
  • Total Carbohydrate 1 Year
  • Operating Mode Automatic
KRD32-1 dual-environment constant acceleration testeris test equipment for military products to simulate dual-environmental force centrifugal motion so as to assess the anti-load performance of electronic components, small components and other electrical and electronic products and detect the anti-load performance specifications. It is mainly used for routine dynamic structural integrity and adaptability tests of components, small parts and small complete machine on aircraft. The acceleration rising rate is large Computer centralized control and measurement Fully digital network closed-loop remote control, high control accuracy Complete safety protection functions.

Technical Specifications

        Model

Parameters

KRD32－1

KRD32－2

KRD32－3

KRD32－4

KRD32－5

Dual-environment constant acceleration tester

High-speed spin tester

Centrifugal dynamic overload tester

Spin shock compound tester

Centrifugal vibration compound tester

Max. Load (kg)

5

5

50

3

1000

Max Acceleration (g)

150

/

20

Shock 10000g--1ms

50g

Loading Rate (g/s)

Customized

/

10

/

Standard Electro-Dynamic Shakers specifications

Installation Radius (mm)

Customized

/

1500

/

Customized

Max. Rotating Speed

(R/Min)

0-3000

0-100000

/

0-10000

/

Collector Ring

Optional according to user requirements

Control Method

Fully closed-loop digital network (remote) automatic control + manual control

Power Supply

AC 380V ± 10％  50Hz

Working

Environment

Temperature range 0～40℃, humidity ≤80%（no condense)

Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
