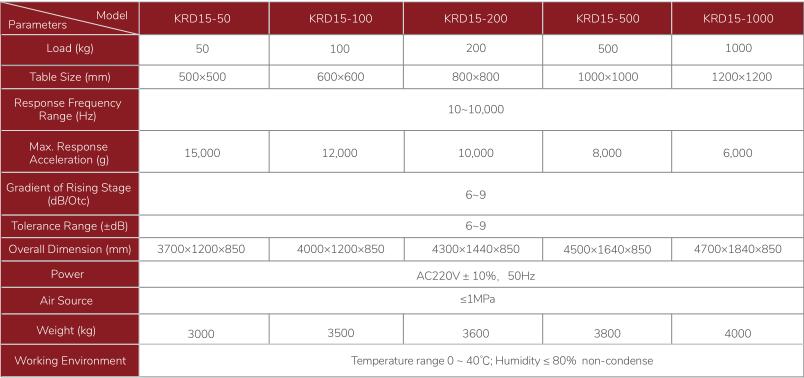

KRD15 series is the state-of-the-art shock response spectrum tester that adopts compressed gas energy to provide impact energy, push the shock hammer to impact the resonance plate, and generate high energy shock. Comparing to traditional pendulum shock response spectrum tester, this machine has the advantages of high energy, stable performance, high reliability, good repeatability, easy adjustment, safety and environmental protection. It is mainly applied in the industries of aerospace, aviation and ships. 1. The system uses pneumatic energy storage to drive the impact hammer, with large driving force, fast response speed and reliable structure; 2. Adjust the driving shock energy by adjusting the air pressure, which is convenient to operate and high in efficiency. 3. Special designed base for the response spectrum, which can raise the installation position of the response board, convenient for the user to install the test piece and adjust the gasket. In addition, the rigidity of the installation position of the response board is greatly enhanced, which makes it better fixed to the ground foundation and withstands larger Impact load. 4. A two-level safety cut-out is designed to fully protect the safety of operators. 5. The operating software has the functions of shock response spectrum tester control, shock data collection, and response spectrum analysis.

krd14 series pendulum shock response spectrum tester is used to measure and determine the shock resistance of electrical and electronic products or packaging, and to evaluate the reliability and structural integrity of the test product in a shock environment. the shock response spectrum is the total result of a series of single-degree-of-freedom linear systems with different natural frequencies subjected to the same shock excitation response. when a product is subjected to an impact, the maximum value of its impact response means that the product has a maximum stress. therefore, the shock response spectrum tester can better simulate the shock wave and shock energy suffered in the real environment. 1. 1200mm table size withstand 1000kg load. 2. windows-based stable control system, full-automatic remote-control interface. 3. the control & measurement system has built-in srs specifications and tolerances, which is convenient for users to adjust and apply. it automatically completes the test and generates reports. 4. adjust the driving shock energy by adjusting the air pressure, which is convenient to operate and high in efficiency. 5. the equipment takes up a small area and is easy to install. Technical Specifications ModelParameters KRD1420 KRD1450 KRD14100 KRD14200 KRD14500 KRD141000 Load (kg) 20 50 100 200 500 1000 Table Size(mm) 300300 500500 600600 800800 10001000 12001200 Response FrequencyRange (Hz) 1010000 Max. ResponseAcceleration (g) 100000 60000 50000 30000 20000 10000 Gradient of Rising Stage (dB/Otc) 69 Tolerance Range(dB) 69 Overall Dimension(mm) 13008501500 140010001500 150011001600 170012001700 190013001800 220015002000 Power AC220V 10%50Hz Weight (kg) 2000 2500 3000 3500 4000 5000 Working Environment Temperature range 0 40; Humidity 80%, non-condense
