Min. Order (MOQ)
100 Piece(s)
-
Application
Hight Voltage
-
Country of Origin
30KV
-
Operating Temperature
-25°C~+85°C
-
Package Type
Through Hole
-
Capacitance
5000 PF
-
Static Capacitance
5000PF
-
Color: Dark Blue
Material: Y5T
-
Insulation Resistance:≥100000MΩ
Dissipation: ≤1%
-
Operating Temperature: -25°C~+85°C
Temperature Characteristics: +22% -33%
-
Diameter=40mm
Thickness=13mm
-
Pitch (F)=20+/- 1 mm
Frequency: 1KHZ

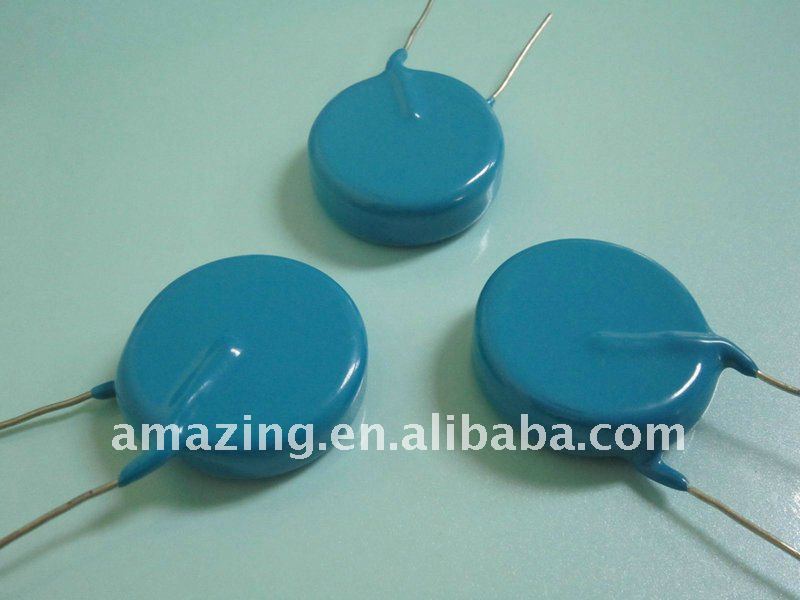

Model: CT81-30KV-D40-F20-502M Color: Dark Blue Material: Y5T Static Capacitance: 5000PF Capacitance Tolerance: +/-20% Capacitance Range: 40006000 PF Rated Voltage: 30KVDC Withstand Voltage:45KV Dissipation: 1% Insulation Resistance:100000M Operating Temperature: -25C+85C Temperature Characteristics: +22% -33% Size: Diameter=40mm, Thickness=13mm, Pitch (F)=20+/- 1 mm Diameter of Lead Wire=1.2+/- 0.05 mm Length of Encapsulated Lead Wire (MAX) =4.5 +/-1 mm, Length of Lead Wire=25+/- 2 mm Testing Condition: 1) Frequency: 1KHZ 2)Temperature: 22C 3) Humidity: 70% Application: X-ray machine, CT machine/Computer X-ray tomography cameras, Non-destructive Testing equipment, NDT machine, Flaw Detection equipment, high voltage generator, voltage-multiplying circuit, ash fall equipment, Noise reduction equipment, cut-off machine, Electric welding machine, etc. Alias: ceramic capacitor, ceramic disc capacitor, disc ceramic capacitor, high voltage capacitor, high voltage ceramic capacitor, high voltage ceramic disc capacitor, FBT capacitor, X ray machine capacitor, capacitor for detection equipment Full series of ceramic disc capacitors Rated Voltage: 2KV, 3KV, 6KV, 10KV, 15KV, 20KV, 30KV, 40KV Nominal Capacitance: 10PF10000PF
Additional Information:
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, ,
Packaging Details : 100pcs/bag, packing can be on customer's requirement.
Delivery Time : 20days
