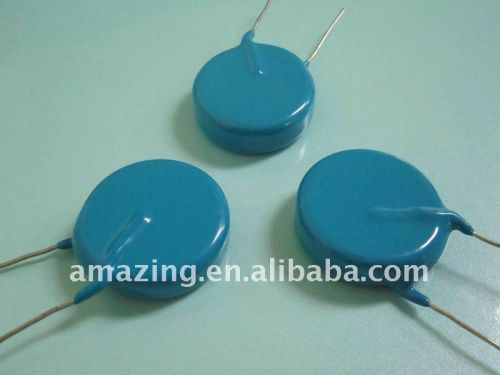

Ceramic Disc Capacitor For X-ray Machine 30KV 5000PF

Model: CT81-30KV-D40-F20-502M
Color: Dark Blue
Material: Y5T
Static Capacitance: 5000PF
Capacitance Tolerance: +/-20%
Capacitance Range: 4000~6000 PF
Rated Voltage: 30KVDC
Withstand Voltage:≥45KV
Dissipation: ≤1%
Insulation Resistance:≥100000MΩ
Operating Temperature: -25°C~+85°C
Temperature Characteristics: +22% -33%
Size:
Diameter=40mm,
Thickness=13mm,
Pitch (F)=20+/- 1 mm
Diameter of Lead Wire=1.2+/- 0.05 mm
Length of Encapsulated Lead Wire (MAX) =4.5 +/-1 mm,
Length of Lead Wire=25+/- 2 mm
Testing Condition:
1) Frequency: 1KHZ
2)Temperature: 22°C
3) Humidity: 70%
Application: X-ray machine,CT machine/Computer X-ray tomography cameras,Non-destructive Testing equipment,NDT machine,Flaw Detection equipment,high voltage generator,voltage-multiplying circuit,ash fall equipment,Noise reduction equipment,cut-off machine,Electric welding machine,etc.
Alias: ceramic capacitor, ceramic disc capacitor, disc ceramic capacitor, high voltage capacitor, high voltage ceramic capacitor, high voltage ceramic disc capacitor, FBT capacitor, X ray machine capacitor, capacitor for detection equipment
Full series of ceramic disc capacitors
Rated Voltage: 2KV, 3KV, 6KV, 10KV, 15KV, 20KV, 30KV, 40KV
Nominal Capacitance: 10PF~10000PF
