Dongguan Tongsheng Machinery Co., Ltd.

Dongguan, Guangdong, China

• MOQ 1 Set(s)

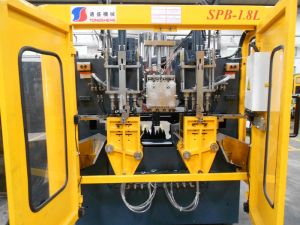

We are offering Super Professional Hollow Blow Molding Machine, Blowing Machine etc. Fast and Stable Movement 1.8 Litter Single to Six Dieheads are selectable Single or Double Stations Mutiple Layer HIGH GRADE EQUIPMENT: 1. Molding System A. Use plastic molding analysis system from Euro-America, worked in the State-of-the-art design and accurate analog-analyzing, adopt Germany advanced technology, to use center material-feeding method, double circle design, so that internal stress is dealt in a better state. Never accumulate material and able to adjust the thickness and weight of the products. B. The mould device is made of specially-treated steel from Japan; it is processed by Japan-made CNC machine before surface-polishing and hardening process. High-precision assembly can greatly extend the moulds service life. 2. Extrusion System Use a set of system of injection design and analog data analysis, which carries out real-time supervision and monitoring in accordance with plastic material type at different process sections (Feeding, Plasticization and Blending), it adjusts the screw parameter design, temperature and speed. Use Japan special steel and advanced CNC equipments. 3. Hydraulic system Adopted VICKERS or YUKEN oil pump and valves, it is quite steady when it working, special in the high speed movement, because we use twin proportion values, the whole machine move smooth and swift, no strike, low noise, key motive force is steady. Life-span is several times than traditional extension, and it is simple, easy to safeguard. 4. Circuit Control system Use Japan 6" Fuji touch screen, America AB or SIEMNS temperature panel and PLC, Emerson parts, the touch screen including 2 language such as Chinese, English 5. Pneumatic system Use German FESTO or Japan-made SMC products

• MOQ 1 Set(s)

We are offering 20 liter 30 liter chemical container leak detector, plastic bottle leak testing machine etc. 1> different machine can be linked with. 2> one to six stations selectable. 3> air pressure working principle 4> precision, stable and easy operation specification for ph-01 model ph-1 stations ps 1 driving motor w 180 detecting speed 0.25l bot.hr 1800 0.5l bot.hr 1350 1l bot.hr 1200 5l bot.hr 900 10l bot.hr 500 20l bot.hr 400 30l bot.hr 350 conveyor size m 1.55*0.85 air pressure mpacm2 4 total power consumption w 200 average power consumption w 120 net weight kg 100 gross weight kg 130 product size m l*w*h 1.6*1.0*1.8 packing size cbm 2.88

• MOQ 1 Set(s)

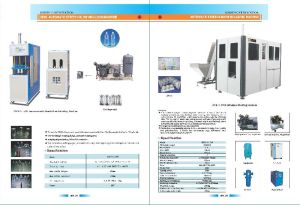

We are offering 2 stations plastic blow moulding machine, pet bottle machine etc. Brief introduction: double station and single satation, from single mould head to six mould head, single layer to six layers, mutli layer with transparent line. It can match in-mold labeling, auto-deflashing device, crusher recycle system. The daliy output(24 hours) can reach approximately from 12, 000 to 86, 000; it can produce from 0.1-2.5l plastic hollow products.

• MOQ 1 Set(s)

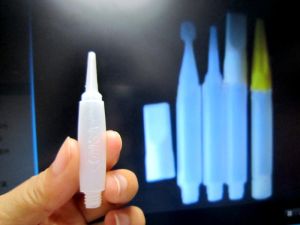

We are offering 1g 2g super glue tube extrusion machine. super glue bottle extrusion machine 1g, 2g super glue 60000pcs per day(24 hours) 4 dieheads and double station

• MOQ 1 Set(s)

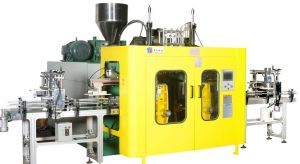

We are offering spb-5l1jd blowing machine, blow molding machine etc. man-machine interface, easy to operate. Maximum volume:5 ltr. Station:double screw diameter:80mm transparent line selectable 1>double station and single satation 2>single mould head to six mould head 3>single layer to six layers, mutli layer with transparent line. 4>it can match in-mold labeling, auto-deflashing device, crusher recycle system. 5>the daliy output(24 hours) can reach approximately from 5, 000 to 86, 000; 6>it can produce from 0.2-5l plastic hollow products. blow molding machine model spb-5l2jd double head screw diameter mm 80 screw ld ratio ld 28:1 injection driving power kw 30 hydraulic pressure power kw 1115 screw rotate speed r.p.m 10-85 screw heating zone parts 8 heating power kw 9.6 extruding capacity hdpepp kgh 105 petgpvcpc kgh 65 mold mouth duter dia mm 120 mold center distance mm 180 mold open-close stroke mm 180-480550 length range of mould mm 150-430 width range of mould mm 200-410 thickness of mould mm 180-230 one dry circle time timeh 900*2 clamping force ton 7 oil tank volume l 180 air pressure kgcm2 6-8 air volume m3min 0.8 cooling water pressure mpa 0.3-0.5 cooling water consumption lmin 60 min.max. Diameter of product mm 50-180 weight of product g 40-250 volume of product l 2.0 total power consumption kw 54.6 average power consumption kw 30 net weight of machine ton 6.3 gross with of machine ton 6.8 machine dimension (l*w*h) m3 3.7*2.3*2.7 package dimension m3 34

• MOQ 1 Set(s)

We are offering plastic bottle leak testing machine. 1> different machine can be linked with. 2> one to six stations selectable. 3> air pressure working principle 4> precision, stable and easy operation specification for ph-02 model ph-2 stations ps 2 driving motor w 180 detecting speed 0.25l bot.hr 3200 0.5l bot.hr 2600 1l bot.hr 2200 5l bot.hr 1600 10l bot.hr 860 20l bot.hr 7000 30l bot.hr 610 conveyor size m 1.55*0.85 air pressure mpacm2 4 total power consumption w 400 average power consumption w 120 net weight kg 110 gross weight kg 140 product size m l*w*h 1.6*1.0*1.8 packing size cbm 2.88
