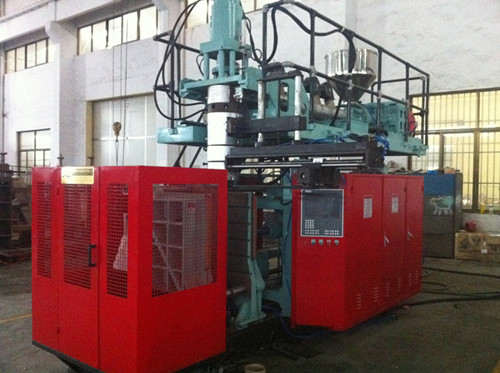

Blow Molding Machine

We are offering blow molding machine for drum/jerrycan. Extruder
1 screw diameter 80mm
2 ld ratio 24ã¯â¼ï¿½1
3 screw speed 50-90r.p.m.
4 drive motor ac 30kw 3 phase asynchronism motor
5 inverter drive america amerson
6 heating zone with cooling fan 4 zones
7 outputthroughout 100ã¯â¼ï¿½hdpe particleã¯â¼ï¿½
8 heating capacity 20.2kw
9 vertical adjustment of head 400mm
10 forwardbackward adjustment of head 400mm
11 groove feed barrel cylinder no
12 gear box hard gear decelerator
13 ladder and safety rails fixed
die head
1 accumulator capacity 5lã¯â¼ï¿½3.75kghdpeã¯â¼ï¿½
2 design first in, first out
3 heating zone 4 zones
4 heating capacity 15.2kw
5 max die$pin diameter 250mm
6 die head axis with pre-blow ã¯â¿â 80mm
7 accumulator push-out stroke measurement transducer italy gefran
8 injection pressure 12mpa
9 extruder stop have
clamping unit ã¥â¼ï¿½
1 tie bar two tie bar
2 platen size 780ã¯â¼ï¿½wã¯â¼ï¿½x900ã¯â¼ï¿½hã¯â¼ï¿½
3 length of mold 410-510mm
4 clamping force 230kn
5 closeopen stroke 400-900mm
6 size of mold 600�1000mm
7 clamping stroke measurement proximal sensor taiwan riko
8 hydraulic valve yuken
9 number of hydraulic cylinder 1
10 high pressure 14mpa
11 support parts for platen movement guide
