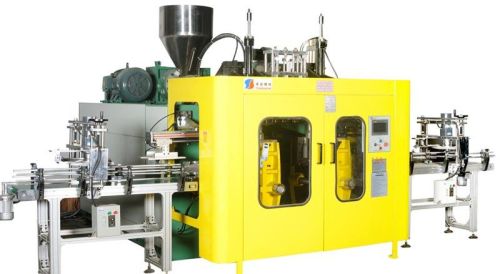

Spb-5l1jd Blowing Machine

We are offering spb-5l1jd blowing machine, blow molding machine etc.
man-machine interface, easy to operate.
Maximum volume:5 ltr.
Station:double
screw diameter:80mm
transparent line selectable
1>double station and single satation
2>single mould head to six mould head
3>single layer to six layers, mutli layer with transparent line.
4>it can match in-mold labeling, auto-deflashing device, crusher recycle system.
5>the daliy output(24 hours) can reach approximately from 5,000 to 86,000;
6>it can produce from 0.2-5l plastic hollow products.
blow molding machine model spb-5l2jd double head
screw diameter mm 80
screw ld ratio ld 28:1
injection driving power kw 30
hydraulic pressure power kw 1115
screw rotate speed r.p.m 10-85
screw heating zone parts 8
heating power kw 9.6
extruding capacity hdpepp kgh 105
petgpvcpc kgh 65
mold mouth duter dia mm 120
mold center distance mm 180
mold open-close stroke mm 180-480550
length range of mould mm 150-430
width range of mould mm 200-410
thickness of mould mm 180-230
one dry circle time timeh 900*2
clamping force ton 7
oil tank volume l 180
air pressure kgcm2 6-8
air volume m3min 0.8
cooling water pressure mpa 0.3-0.5
cooling water consumption lmin 60
min.max. Diameter of product mm 50-180
weight of product g 40-250
volume of product l 2.0
total power consumption kw 54.6
average power consumption kw 30
net weight of machine ton 6.3
gross with of machine ton 6.8
machine dimension (l*w*h) m3 3.7*2.3*2.7
package dimension m3 34
