Leading Manufacturer, Supplier & Retailer of Pipe Annealing Machine.
We are renowned Manufacturers, Suppliers and Exporters of Pipe Annealing Machines from China. The Pipe Annealing Machines we make available are mainly used to in-line anneal AISI 300 and AISI 400 stainless steel pipe. Our Pipe Annealing Machines come with complete gas management system, inductor, cooling tunnel, mobile support, equipment cooling system, temperature control system and control panel. Bulk orders of the Machines are processed by us as per the specific requirements of buyers.
Specifications
|
Model |
Pipe Diameter |
Wall Thickness |
Power |
Length (mm) |
|---|---|---|---|---|
|
BGL40 |
O.D.1251mm |
0.5-3.0mm |
60KW |
6000 |
|
BGL50 |
O.D.2576mm |
0.5-3.5mm |
80KW |
6000 |
|
BGL60 |
O.D.51114mm |
0.8-4.0mm |
160KW |
7000 |
|
BGL80 |
O.D.89159mm |
2.0-6.0mm |
200KW |
8000 |

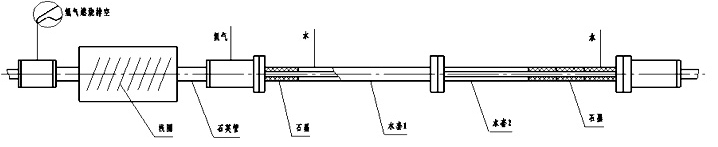

Schematic Drawing
