Our Products
Our offered Product range includes Metal Slitting Machine and Slitting Machine.
Our Metal Slitting Machines are extensively used for slitting band steel/steel coil, carbon steel strip, copper strip, and all the other kinds of metal materials. The company is a distinguished Manufacturer, Supplier and Exporter of Metal Slitting Machines from China. Rigorous quality-tests ensure that only defect-free Machines reach the buyers. We are capable of delivering bulk orders of the Slitting Machines within the allocated time.
Structure :
Cart for uncoiler
Single side/ double side uncoiler (support arm stand for single side uncoiler)
Leveling/ leveling + shearing stand
Loop bridge
Side guide stand
Single slitting knife/ double slitting knife stand
Loop bridge and scrap winder
Tension pad stand
Recoiler
Coil cart for recoiler
Electric control system
Features :
By means of Programmable Logic Controller (PLC), system performance is based upon the characteristics of various metal sheets, and switch high / low speed operating mode automatically , so as to achieve improved efficiency and reduced maintenance dramatically.
For lower malfunctioning, the material uncoiler uses an expand / shrink hydraulic cylinder that is mounted on an integrated steel frame.
The material uncoiler is equipped with a high efficiency disc type brake, its tension is adjusted by the air - pressure loop.
Under this circumstance, the time for tension adjustment is reduce, also, the forced monetary braking is occurred thus free from loosen of coil.
The pre - loader is equipped with DC Various - Speed motor drive, so that a synchronized speed cooperate to the production line could be governed.
Slitting knives are mounted on integrated frame with a separated 1 transmission, that means enhanced rigidity structure of Machine, lower vibration amplitude of knives, and excellent yields could be produced.
The datum plane and accuracy of sitting Knives'axes are all to be fabricated within 0.006mm in tolerance, so that makes higher duration of slitting knives and much excellent , accury of outputs of the slitting line.
For securing the stability of slitting line during operation, the tension controlled roll - up device with slip differential structure is designed for the waster.
The tension pad uses high elastics and resistive carpet as surface materials, so keep the outputs of the Line smoother. In addition, it also equipped a pressure-balance device to keep an even-pressure over the both side of materials that toched with the tightener.
The recoiler is equipped with an improved / high rigid holder, that causes reduce of lead time . An hydrolic pressure adjustable back - pressure device is equipped on the separator mechanism , so that a constant hold - pressure could be reached for recoil.
Self - tension design enable to retain a better tightness during recoil.
Additional Information:
Payment Terms : L/C, T/T, Western Union
Specifications
| Model | BG500 |
BG650 |
BG750 |
BG850 |
BG11000 |
BG1350 |
|---|---|---|---|---|---|---|
|
Strip width(mm) |
460 |
620 |
720 |
820 |
950 |
1300 |
|
Material thickness(mm) |
0.1-2.0 |
0.1-2.0 |
0.1-2.0 |
0.1-2.0 |
0.2-2.5 |
0.2-2.5 |
|
Slit strands |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
|
Total power(kw) |
33 | 33 | 33 |
37 |
37-45 |
37-45 |
|
Slitting speed (m/min) |
0-100 |
0-100 |
0-100 |
0-100 |
0-70 |
0-70 |
|
Coil Weight (ton) |
5 | 5 | 5 |
6 |
8.5 |
10 |
|
Size(L*W*H)(m) |
15*4*2.5 |
16*4*2.5 |
18*4*2.5 |
18*4*2.5 |
22*6*2.5 |
22*6*2.5 |

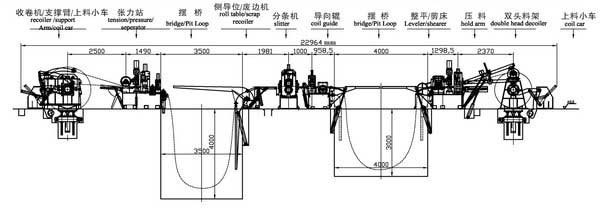

Slitting Machine CAD Stereograms
