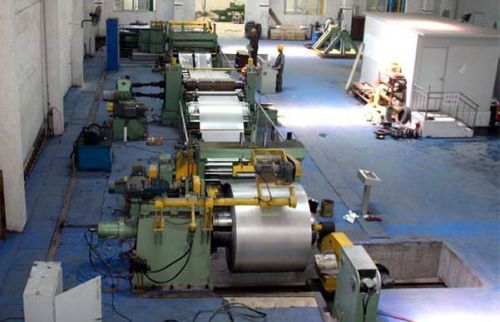

Metal Slitting Machine

Our Metal Slitting Machines are extensively used for slitting band steel/steel coil, carbon steel strip, copper strip, and all the other kinds of metal materials. The company is a distinguished Manufacturer, Supplier and Exporter of Metal Slitting Machines from China. Rigorous quality-tests ensure that only defect-free Machines reach the buyers. We are capable of delivering bulk orders of the Slitting Machines within the allocated time.

Structure :

• Cart for uncoiler

• Single side/ double side uncoiler (support arm stand for single side uncoiler)

• Leveling/ leveling + shearing stand

• Loop bridge

• Side guide stand

• Single slitting knife/ double slitting knife stand

• Loop bridge and scrap winder

• Tension pad stand

• Recoiler

• Coil cart for recoiler

• Electric control system

Features :

• By means of Programmable Logic Controller (PLC), system performance is based upon the characteristics of various metal sheets, and switch high / low speed operating mode automatically , so as to achieve improved efficiency and reduced maintenance dramatically.

• For lower malfunctioning, the material uncoiler uses an expand / shrink hydraulic cylinder that is mounted on an integrated steel frame.

• The material uncoiler is equipped with a high efficiency disc type brake, its tension is adjusted by the air - pressure loop.

• Under this circumstance, the time for tension adjustment is reduce, also, the forced monetary braking is occurred thus free from loosen of coil.

• The pre - loader is equipped with DC Various - Speed motor drive, so that a synchronized speed cooperate to the production line could be governed.

• Slitting knives are mounted on integrated frame with a separated 1 transmission, that means enhanced rigidity structure of Machine, lower vibration amplitude of knives, and excellent yields could be produced.

• The datum plane and accuracy of sitting Knives'axes are all to be fabricated within 0.006mm in tolerance, so that makes higher duration of slitting knives and much excellent , accury of outputs of the slitting line.

• For securing the stability of slitting line during operation, the tension controlled roll - up device with slip differential structure is designed for the waster.

• The tension pad uses high elastics and resistive carpet as surface materials, so keep the outputs of the Line smoother. In addition, it also equipped a pressure-balance device to keep an even-pressure over the both side of materials that toched with the tightener.

• The recoiler is equipped with an improved / high rigid holder, that causes reduce of lead time . An hydrolic pressure adjustable back - pressure device is equipped on the separator mechanism , so that a constant hold - pressure could be reached for recoil.

• Self - tension design enable to retain a better tightness during recoil.
