Hebei Tianyun Co. Limited

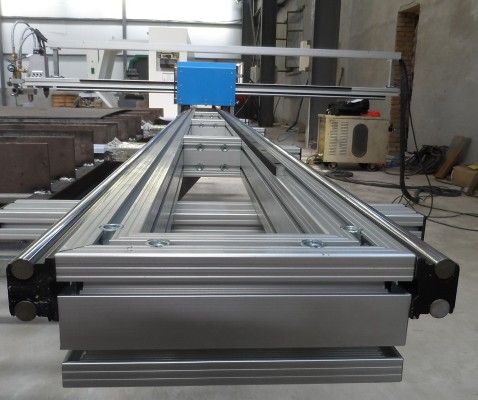

We are offering portable series cnc cutting machine. this machine is a portable cnc cutting machine and it can cut any complex plane figure. it supports both flame and plasma cutting which reduce rework and rise production efficiency. About the cutting thickness, if by flame cutting, can cut from 5mm to 150mm, by plasma cutting, according to the plasma power source you choosed. rational structure and compact design make this machine light weight and can be moved easily. it take no fix room and applicable both indoor and outdoor. The cutting program software supports drawing and nest. It can transfer the cad drawing or other drawings made by computer to g code, then save it in the usb and transfer to cutting machine. The system will transfer the g codes to cutting program. Our machine adopt all the best quality materials, keep sure the machine get best cutting quality. We can supply you the fastcam or ibe software.

We are offering gentlecut 1530 high speed bench type cnc cutting machine. genltle cut can cut the thickness carbon steel, stainless steel plate, no matter 20mm, 50mm, 70mm, you should not worry about it! fast ! running speed as fast as 24000mmmm, save you more time, highly improved your production capacity! friendly! no matter the breakpoint striking or the timely tracing, or the corner cutting, kerfs compensation, htt gentlecut play completely as a gentleman, never waste your time, never waste your money! the intel 852855 control boards, german imported reducer, panasonic servo motor all keep sure the whole control system work brilliant! quality! truehole capable machine!htt gentlecut can support both the popular air plasma, but also the hyperformance truehole technology plasma.

We are offering fricut 1530 portable cnc cutting machine. Our fri cut series portable cnc cutting machine can support both flame cutting and plasma cutting, fricut series cnc machines are light processing systems for cutting sheet metal or thickness on the specified drawings using cnc system. By flame cutting can cut from 5mm to 150mm, by plasma cutting, according to the plasma power source. The cnc allow for the production of billets complex configuration with high precision and quality. The cnc machine consist of two longitudinal frame rails and racks on which the carriage moves with the installed transversal cross member and a numerical control unit with lcd display and keypad. More beam support above the main unit, keep sure more stabilities! you puchase it, no worry!

We are offering gantry type cnc cutting machine. the main technical parametersrail spacing 4000mm effective cutting width of 3200mmrail length 6000mm effective cutting length of 4800mmflame torch a group of flame cutting thickness of 6-200mmthe plasma cutting torch a group, such as plasma cutting thickness as the plasma powermobile accuracy of 0.01mm / step machine speed 0-3500mm/min thebilateral drive of the drive way automatically increase the stroke 0-230mm main features1. Beams: square tube welded structure with good rigidity, high precision, light weight and small inertia. All welds are vsr to go deal with stress effectively prevent structural deformation;(2) vertical and horizontal drive: precision rack and pinion (7 precision) drive. Horizontal rails using the biaxial core high-speed rail, the vertical guide rail is made by precision machining characteristics, to ensure the smooth operation of the cutting machine, high precision, durability, clean appearance; deceleration with precision gear reducer can be perfect to ensure the accuracy and balance of the movement;the vertical drive frame (end frame): both ends of the horizontal guide wheel, adjustable driver frame eccentric wheel at the bottom of the rail compression degree of the machine in motion to maintain a stable orientation. Equipped with a dust collector at any time scraping to sweep the debris to accumulate in the surface of the rail;4 drive system for domestic step drive, according to the needs of the user can choose the world's top products - imported from japan panasonic ac servo drive / domestic servo drive, the machine running smoothly, a wider range of speed variable speed, acceleration time is short;easy-to-use automatic programming system cnc programming is no longer complex, easy;6. Cnc control system uses the star peak control system, with the country's most excellent stability and superior anti-jamming capability. the main technical indicatorsa cutting shape: programmable cutting straight lines and arcs of an arbitrary planar shapes steel parts;cutting accuracy: national standards jb/t10045.3-99;cutting width: 4m, 5m, 6m and other kinds of specifications optional;4 track length: 6 meters standard, extended 2m / section can also be customized according to user requirements;5-driven approach: bilateral drive;torch configurations: the standard one, optional flame or plasma torch can also be customized according to user needs;cutting thickness: flame cutting 200mm, plasma cutting thickness depending on the selected power supply size;ignition raised: automatic ignition, electric increase, optional condenser or arc voltage automatically increase according to user requirements;cnc system: for the self-developed control system, easy to use, stable performance;cnc programming: autocad-based automated graphical programming software;cutting gas: oxygen + acetylene or propane

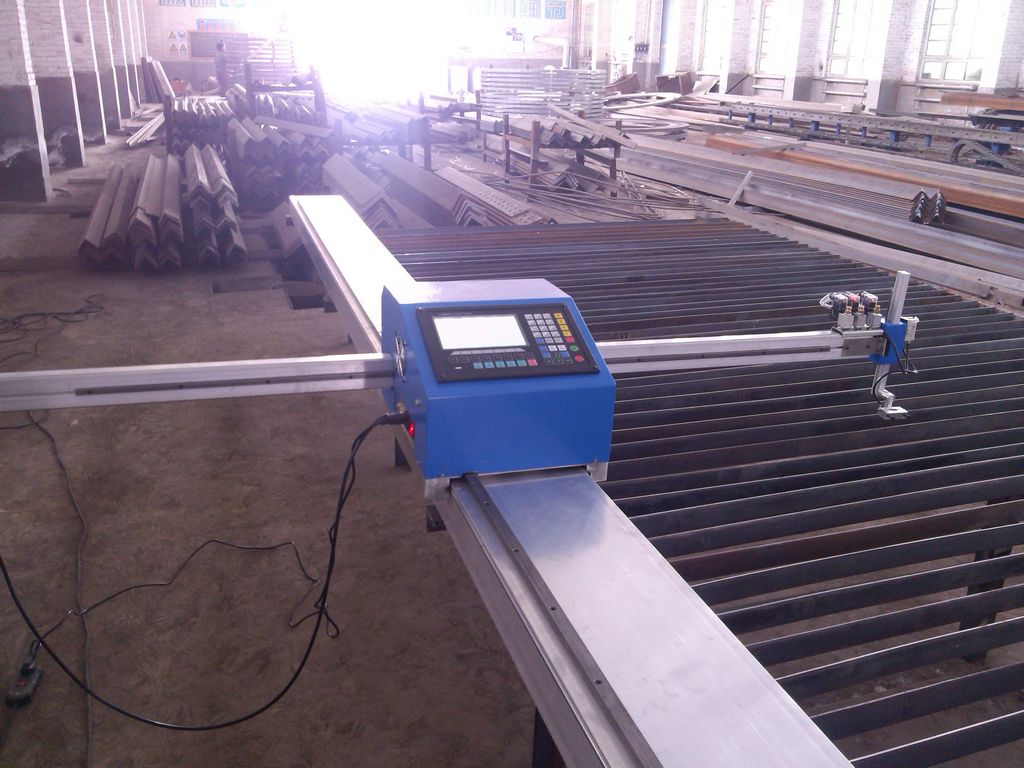

HTT EcoCut cantilever type portable cnc cutting machine Suitable to cut the carbol steel, stainless steel plate, by flame cutting cancut from 5mm to 150mm, also can support plasma cutting. Easy to move, easy operation, most cheap price! it will help you improve your cutting capability, save your time, we supply the basic version FastCAM software to realize the nesting function!Type EcoCut 1200mm*2000mmBody size 1700mm*2500mmGross Weight and packages 110kg by two plywood boxesor according to the reality sizes machineInput Voltage 110220 VFrequency 6050 HzInput Power 180WEffective Cutting Area X Axis: 1200mm Y Axis: 2000mm (Suitable to 1500mm*3000mm, 1500mm*6000mm, 1500mm*8500mmetc.)Running Speed 0-6000 mmmmCutting Speed( by plasma cutting) 0-3500mmmmCutting Speed(by flame cutting) 0-600mmmmCutting Thickness(by flame cutting) 5mm-150mmCuttingThickness(by plasma cutting) According to the plasma power sourceCNC Control System China local famous Brad with 7 color screen, multi-languagescombustion-supporting gas oxygen gasCombustion gas pressure Max. air pressure 1.5MPaGas Acetylene, propane, methane gas, gasolineGas pressure Max. air pressure 0.1MPaSoftware Fast CAM basic versionDriving mode 3 Step motorsDriver 2 setsSolenoid valve1 setPositioning accuracy 0.3 mmRepeatability precision 0.3 mmManual cutting up and down device Standard Stroke150mm ( for optional)THC (Auto flameplasma height control system) Standard Stroke 80mm (for optional)
