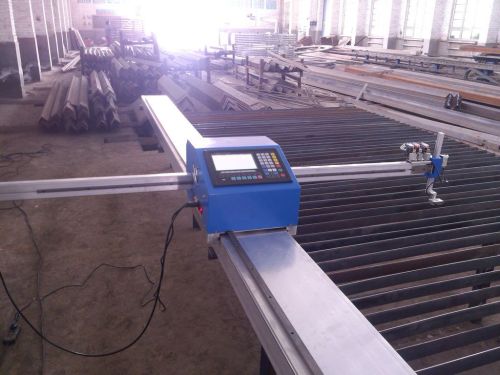

Ecocut Portable CNC Cutting Machine

HTT EcoCut cantilever type portable cnc cutting machine Suitable to cut the carbol steel, stainless steel plate, by flame cutting cancut from 5mm to 150mm, also can support plasma cutting. Easy to move, easy operation, most cheap price! it will help you improve your cutting capability, save your time, we supply the basic version FastCAM software to realize the nesting function!
Type EcoCut 1200mm*2000mm
Body size 1700mm*2500mm
Gross Weight and packages 110kg by two plywood boxesor according to the reality sizes machine
Input Voltage 110220 V
Frequency 6050 Hz
Input Power 180W
Effective Cutting Area X Axis: 1200mm Y Axis: 2000mm (Suitable to 1500mm*3000mm, 1500mm*6000mm, 1500mm*8500mmetc.)
Running Speed 0-6000 mmmm
Cutting Speed( by plasma cutting) 0-3500mmmm
Cutting Speed(by flame cutting) 0-600mmmm
Cutting Thickness(by flame cutting) 5mm-150mm
CuttingThickness(by plasma cutting) According to the plasma power source
CNC Control System China local famous Brad with 7” color screen, multi-languages
combustion-supporting gas oxygen gas
Combustion gas pressure Max. air pressure 1.5MPa
Gas Acetylene, propane, methane gas, gasoline
Gas pressure Max. air pressure 0.1MPa
Software Fast CAM basic version
Driving mode 3 Step motors
Driver 2 sets
Solenoid valve
1 set
Positioning accuracy 0.3 mm
Repeatability precision 0.3 mm
Manual cutting up and down device Standard Stroke150mm ( for optional)
THC (Auto flameplasma height control system) Standard Stroke 80mm (for optional)
