Henan Fengbo Automation Co.,Ltd

Zhengzhou, China

We offer Belt Weigh Feeder. Belt Weigh FeederProduct Introduction:FB-WFLM weigh feeder(Belt Feeder) is a perfect equipment for continuous weighing, feeding and dosing of bulk material and powder, and can also realize open-loop and closed loop flow control. We have two models: WFL, WFM. It can be widely used in building materials, chemicals, coal, ports, ceramics, food, fertilizer, and other industries. Character:High accuracy: 0.5% the only in China approved by NIM Direct weighing carrier with two load cells, to achieve real high accuracy. Features:1. Reliable electrical weighing device: Unique structure and reliable weighing;2. FB-DCS2000 control system, SPL-F microcomputer centralized control system, PLC control system are optional;3. Unique deviation-resisting techniques ensure the belt operate well;4. Belt of different width, thickness, environment suitability can be chosen according to specific process requirement;6. Unique spillageproof device;7. Unique belt tightening and aligning device;8. Unique scraping device to protect belt and make the system operate well;9. Sophisticated weighing system, no operation friction and with little maintenance. 10. Installation of load cell is treated specially to protect the load cell and ensure stable and reliable long-term operation;11. High accuracy speed measuring device is the effective guarantee for system measurement;12. Unique electrical automatic calibration, captive chai calibration, and weights-hoist calibration.

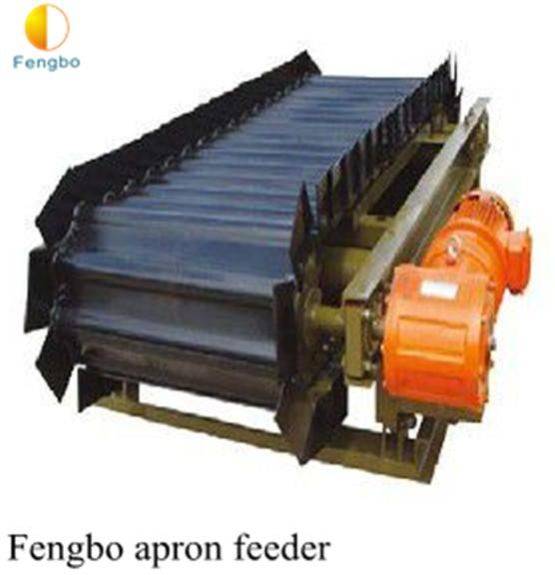

We are offering apron feeder.I. Product introduction fb-wfplwfpm chain plate weigh feeder is a new generation of equipment based on the fb-wfml belt weigh feeder for proportioning process. It is used for weighing and dosing the material with abrasiveness, high moisture, high pressure or high temperature, such as limestone, shale, iron stone which is easy to wear belt, high moisture clay, iron powder and high temperature clinker, hydrated lime etc. It can solve the problems such as poor carrying capacity, conveying difficulty, belt slipping for heavy load and save a lot cost for changing belt frequently. Fb-wfplwfpm chain plate weigh feeder can be applied for building material industry, power, chemical and steel industry etc.Frameusing high quality steel, once - molded.Weighing deviceload directly acts on load cells through multi rollers and double sensors reduce error during force transmission. So that to improve the weighing accuracy and become more reliable.Drive devicehollow shaft connects with the head pulley directly, easy to assembly and disassembly. Speed can be adjusted, running stably and reliably without noisy. Heat radiator can be chosen when it runs in low speed.Head and tail pulleythe pulleys are held by self-aligning ball bearing, the active pulley is covered by rubber in case of overload slipping. The passive pulley is easy to tighten.Automatic tighten device and anti-deviation devicekeep the chain plate tension constantly and moderately. During running, it can adjust the chain plate automatically in case of belt deviation affecting the weighing accuracy.inner and outer sweeping devicewear-resistant roller brush can sweep the residual on the chain plate effectively, keeping the measurement parameters stable and improving the accuracy. Inner sweeper cleans the passive pulley, inclusion and residual material on the inner surface of belt, which prolong the service life.
