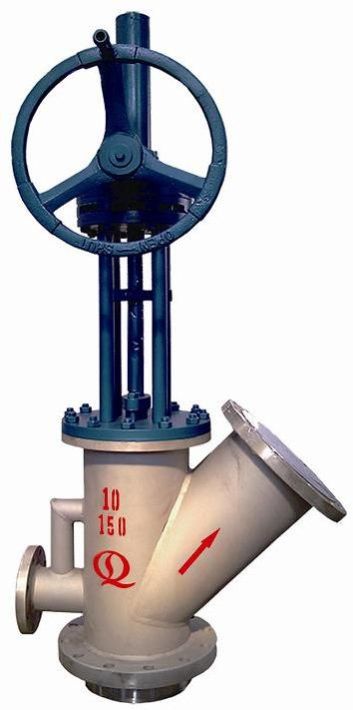

The Special Tank Bottom Angle Valve For Coal Slurry is designed based on practical situation of the coal chemical industry. During the development of the product, characteristic of the coal slurry has been taken into consideration as well, The stainless steel dump valve is generally installed at the bottom of the coal slurry tank to discharge the medium .Features1.Special cleaning device is offered for the valve body of the flange connection valve, which can be used to clean the inside of the product periodically. So caking and blocking of the coal slurry can be avoided.2.Made of corrosion-resistant material, the inner cavity of the valve body is painted.3.The sealing surface made of bead weld cemented carbide makes for the longer service of the special dump valve for coal slurry.4.The anti-rotation mechanism of the dump valve for coal slurry can guarantee the rectilinear motion of the valve stem.

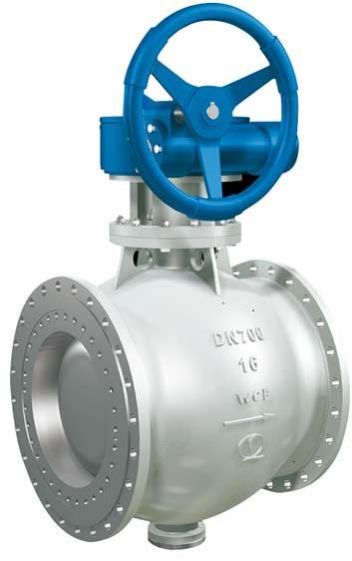

We are offering ball segment valve is a high performance valve we have developed with advanced technology.it also called semi ball valve , c type ball valve and e type ball valve .it is designed on the base of o type ball valve, which solves the difficulties of conveyance of solid-liquid and solid-gas two phase medium.Benefits1.with straight through type valve body , this valve can keep the medium flow by linear when the valve fully opened, so it reduced less energy loss compared with other valves.2.easy to operate: as the valve disc moved away from valve seat without any contact, so it has smaller starting torque compared with o type ball valve and easy to operate.3.because of double eccentric structure design , the semi-ball valve is perfectly sealed and can be closed tightly .4.when the valve is closed , the wedding force is able to remove the foreign materials , therefore it has anti-scaling performance.Technical specification1.size dn40dn1400 2562.pressurepn6pn40 class 150class9003.materialwcba105), wc6, wc9, lcb, cf8(304), cf8m(316), cf3(304l), cf3m(316l)4.sealing materialhard alloy or special treatment5.connection methord: flange , wafer, welded type can be choosed.6.driving method : pneumatic , electric, hydro electric actuator can be choosed7.design standard : asme or din standard

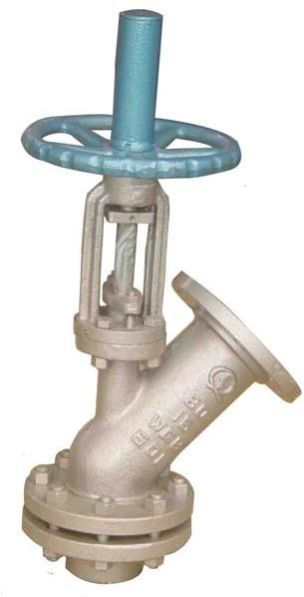

Flush bottom tank valve (Disc type) The flush bottom tank valve(referred to as Tank valve, Angle bottom valve, Bottom drain valve, Flush mount valve etc) are designed to provide drainage and dead space free shutoff for reactors, vessels, autoclaves and storage tanks. The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of product within the vessel nozzle itself. 1.This range of manual control tank bottom angle valve is manufactured in y type integrated structure; 2.Air cylinder operation is usual for saving labor; 3. Short stroke for openclose operation; 4.Both Rising Disc Type (the valve is opened into tank) and lowering disc type ((the valve is opened into valve) can be designed by Quanshun valve ; 5.The sealing surface of the valve seat and the valve disc is made of over laying cemented carbide or painted with tungsten carbide. The auxiliary line sealing guarantee the reliability of the sealing performance. 6. Crust breaking for disc rising type. Technical Parameters Size: 214 DN50DN350 PressureClass 150Class 600 PN1.0PN16 Body material WCB, CF8, CF8M, CF3, CF3M etc Connection TypeFlange, weld etc. Driving method : Manual , pneumatic Applications Alumina industry Polyme industry Food industry Chemical industry Steel industry Mining industry Pharmaceutical industry Fine chemical process

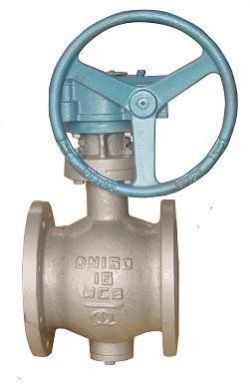

Half ball valve is a high performance valve we have developed with advanced technology.It also called semi ball valve , C type ball valve and E type ball valve .It is designed on the base of O type ball valve, which solves the difficulties of conveyance of solid-liquid and solid-gas two phase medium.Benefits1.With straight through type valve body , this valve can keep the medium flow by linear when the valve fully opened, so it reduced less energy loss compared with other valves.2.Easy to operate: As the valve disc moved away from valve seat without any contact, so it has smaller starting torque compared with O type ball valve and easy to operate.3.Because of double eccentric structure design , the semi-ball valve is perfectly sealed and can be closed tightly .4.When the valve is closed , the wedding force is able to remove the foreign materials , therefore it has anti-scaling performance.
