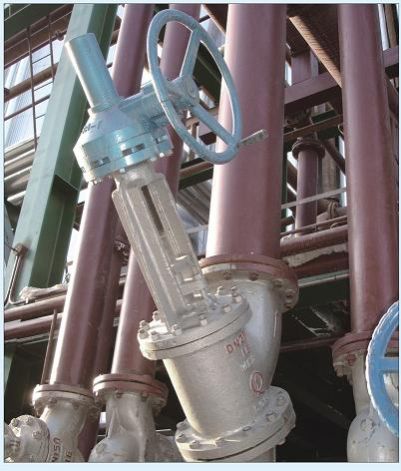

We are offering slurry valve.Featuring abrasion resistance, high pressure resistance, erosion resistance and anti-scaling performance, the slurry valve for slurry control is specially offered for controlling or stopping the slurry.the applicable industry includes alumina, metallurgy and miningfeatures1the valve body of globe valve for alumina slurry control is consisted of two pieces. The left and right valve bodies are provided in geometric design. Besides the solidworks software for three -dimensional contouring , the ansys software is also applied for flow field analysis.2the valve seat of y type slurry valve is separated from the valve body.installed between the two valve body , so the valve seat can be replaced easily .3to ensure the rectilinear motion of the valve stem , there is an anti-rotation device provider for the valve stem of the y type slurry valve .4no pocket inside valve .5low pressure drop .6the range of product is anti-scaling, which are widely use in alumina process.

The bidirectional rotary ball valve is developed based on the mechanism of the butterfly valve and semi ball valve . The special butterfly valve can be used at inlet of the water pump, piping network system, recovery stem, high water tank, sewage system and the back flow prevention to shut off or control the pipeline.Features1.Designed with bidirectional sealing structure, the installation of the bidirectional rotary ball valve will not be restricted by the direction of the fluid.2.Since the metal sealed bidirectional rotary ball valve is offered with self-sealing device, reliable sealing performance can be realized under the pressure from medium.3.Powerful specific pressure of sealing can be obtained the valve is installed on the direction in opposite to that of the fluid.The pressure acts on the valve seat of the bidirectional rotary ball valve. The contact area of the point action is annular, 4.The rotary ball valve has long service life due to wear compensation.5.The unique rotational structure , as well as the sphere-conical sealing surface of the valve seat, makes for the cleaning function the solid particle will be crushed when the electric operated bidirectional rotary ball valve is opened or closed.

We are offering y globe valve.Featuring abrasion resistance, high pressure resistance, erosion resistance and anti-scaling performance, the y type globe valve for slurry control is specially offered for controlling or stopping the slurry.the applicable industry includes alumina, metallurgy and miningfeatures1the valve body of globe valve for alumina slurry control is consisted of two pieces. The left and right valve bodies are provided in geometric design. Besides the solidworks software for three -dimensional contouring , the ansys software is also applied for flow field analysis.2the valve seat of y type slurry valve is separated from the valve body.installed between the two valve body , so the valve seat can be replaced easily .3to ensure the rectilinear motion of the valve stem , there is an anti-rotation device provider for the valve stem of the y type slurry valve .4no pocket inside valve . 5low pressure drop .6the range of product is anti-scaling, which are widely use in alumina process.
