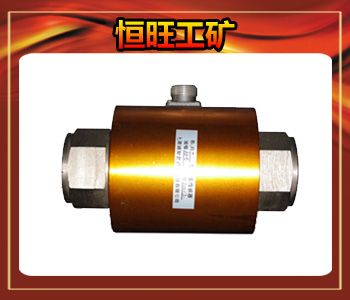

We are offering gad10 (0 10 t) mine tension sensor (hereinafter referred to tension sensor)is mine intrinsically safe type, suitable for coal mine gas and coal dust explosive gas environment, and integrated system belt conveyor, used to measure the coal mine belt convey or belt tension, prevent the belt from falling skid and the tension is too large to cause the belt tension tensile deformation and failure, as khp128z type coal mine belt conveyor protection device host tension sensor, when the belt conveyor belt tensioning degree overrun, the device will automatically open to adjust the tension winch.Technical parameters enclosure protection grade: p54.Working voltage: ui: dc12v (when used in the coal mine, must by the ann power supply!) .Working current: ii 50 ma or less.Output signal way: 200 1000 hz frequency signal.Range: 0 10 t.Accuracy: + - 3%.Weight: 3 kg or less.Dimension: 178 * 96 * 42 mm.
Additional Information:
Jining, Shandong, China
