Our Products

Gantry Planer Milling Machine

China CNC Gantry Type Planer Milling Machines Supplier. We provide Gantry Planer Milling Machine,Gantry Type Milling Machine, Planer Milling Machine, Gantry Milling Machine.

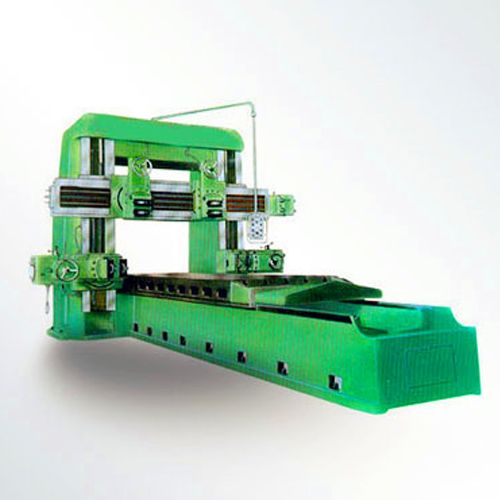

CNC Gantry Planer Milling Machine

₹ 45.25 Lakh / Set Get Latest Price

transportation shipment

Product name : CNC Gantry Planer Milling Machine Feature of CNC Gantry Planer Milling Machine: Scientific & logical design of the structure and adoption of the advanced function unit can realize strong cutting function, high working efficiency, safe & reliable movement and long working life. Technical parameters of CNC Gantry Planer Milling Machine B2016A Workbench size : Long 4000 mm , 6000mm, 12000mm, 6000mmWorkbench size : Width 1400 mm Drive motor power (DC) :55 kwSpeed Range : 4-80 mmminT "-slot number : 7The distance between two columns :1700 mmElevating speed of crossrail :570 mm minMaximum section of planing tool bar :6060 mmPower of main motor :63.3 KWPower supply: 400V, 155A Straightness of machined surface 0.021000 mmMaximum machining dimensions Long: 4000mm, 6000 mm, 12000mm, 6000 mmMaximum machining dimensions Width: 1600 mmMaximum machining dimensions Height: 1250 mmMaximum machining weight: 10000 kg, 15000kg, 2 5000kg, 15000kgOverall dimensions Long: 9000mm, 13000mm, 25000mm, 13000mmOverall dimensions Width: 4500 mmOverall dimensions Height: 3800mmTotal weight of machine :40000 kg, 46000kg, 72000kg.

View Complete Details

Ask Latest Price & Details

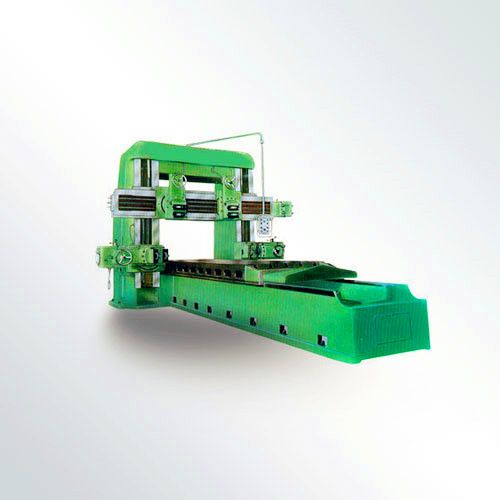

CNC Double Column Machining Center

₹ 90.50 / Piece Get Latest Price

Double Column Planer Type Milling Machine is suitable for various large, medium and small parts of rough machining and precision machining. It can be used for horizontal, vertical and inclined surface machining etc. The machine can also process all kinds of guide surface and T-slots. Grinding function can be carried out after adding grinding head.

View Complete Details

Ask Latest Price & Details
