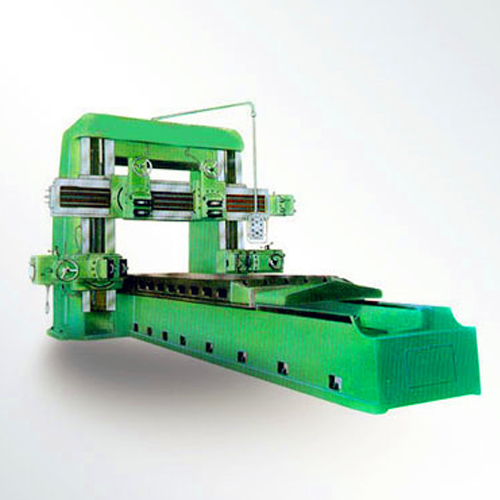

CNC Gantry Planer Milling Machine

Product name : CNC Gantry Planer Milling Machine
Feature of CNC Gantry Planer Milling Machine:
Scientific & logical design of the structure and adoption of the advanced function unit can realize strong cutting function, high working efficiency, safe & reliable movement and long working life.
Technical parameters of CNC Gantry Planer Milling Machine B2016A
Workbench size : Long 4000 mm ,6000mm, 12000mm, 6000mm
Workbench size : Width 1400 mm
Drive motor power (DC) :55 kw
Speed Range : 4-80 mmmin
T "-slot number : 7
The distance between two columns :1700 mm
Elevating speed of crossrail :570 mm min
Maximum section of planing tool bar :60×60 mm
Power of main motor :63.3 KW
Power supply: 400V,155A
Straightness of machined surface 0.021000 mm
Maximum machining dimensions Long: 4000mm, 6000 mm,12000mm,6000 mm
Maximum machining dimensions Width: 1600 mm
Maximum machining dimensions Height: 1250 mm
Maximum machining weight: 10000 kg, 15000kg,2 5000kg,15000kg
Overall dimensions Long: 9000mm,13000mm,25000mm,13000mm
Overall dimensions Width: 4500 mm
Overall dimensions Height: 3800mm
Total weight of machine :40000 kg,46000kg,72000kg.
