Hubei Goman Heavy Industry Technology Co., Ltd

Wuhan, China

We are offering trailer mounted. P15 is most compact platform with 15m working height, articulated and telescopic arm fit with hydraustatic levelling basket. It could be hauled by a normal car up to 80kmh, with alko braked axle. Specifications ã¢ï¿½âºarticulating boom ã¢ï¿½âºmultiple job site application, indoors and outdoors ã¢ï¿½âºhigh and low operation panel ã¢ï¿½âºhydraulically outriggers and outrigger interlocks ã¢ï¿½âºhydraulically surge brakes ã¢ï¿½âº350ã�â°non-continuous turntable rotation ã¢ï¿½âºall pipelines put inside the machine, to avoid tangled sun and rain or other objects ã¢ï¿½âºmade of high strength steel, famous china brand ã¢ï¿½âºprotective covers for oil-tank, emergency controls etc. model p15 max.working height 15.00m max.platform height 13.00m loading capacity 200kg lateral outreach 6.80m basket rotation - jib rotation 100ã�â° turntable rotation 359ã�â° size of basket 0.9x0.8x1.1m overall stowed length 5.60m overall stowed width 1.62m overall stowed height 2.30m length outrigger footprint standard 3.80m width outrigger footprint standrard 2.95m total weight 1800kg traveling speed 35kmh power 1.standard power source 2.optional power source diesel engine 1.electric 220v ac power 2.battery

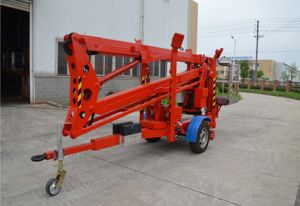

We offer trailer mounted . P16 could go 1m higher than p15 due to the longer telescopic boom section and longer outriggers. It has the same features p15 has. specifications ►articulating boom ►multiple job site application, indoors and outdoors ►high and low operation panel ►hydraulically outriggers and outrigger interlocks ►hydraulically surge brakes ►350°non-continuous turntable rotation ►all pipelines put inside the machine, to avoid tangled sun and rain or other objects ►made of high strength steel, famous china brand ►protective covers for oil-tank, emergency controls etc. model p16 max.working height 15.80m max.platform height 13.80m loading capacity 200kg lateral outreach 7.00m basket rotation - jib rotation 100° turntable rotation 359° size of basket 0.9x0.8x1.1m overall stowed length 5.85m overall stowed width 1.62m overall stowed height 2.40m length outrigger footprint standard 3.95m width outrigger footprint standrard 3.15m total weight 1850kg traveling speed 35kmh power 1.standard power source 2.optional power source diesel engine 1.electric 220v ac power 2.battery

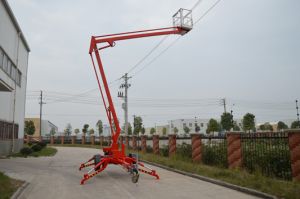

We offer trailer mounted. P12 is the simplest trailer mounted aerial work platform in goman family. With 4 hydraulic outriggers, parelel level basket, robust design, it has very high price-performance ratio. specifications ►articulating boom ►multiple job site application, indoors and outdoors ►high and low operation panel ►hydraulically outriggers and outrigger interlocks ►hydraulically surge brakes ►350°non-continuous turntable rotation ►all pipelines put inside the machine, to avoid tangled sun and rain or other objects ►made of high strength steel, famous china brand ►protective covers for oil-tank, emergency controls etc. model p12 max.working height 12.00m max.platform height 10.00m loading capacity 200kg lateral outreach 4.50m basket rotation - jib rotation 100° turntable rotation 359° size of basket 0.9x0.8x1.1m overall stowed length 5.85m overall stowed width 1.70m overall stowed height 2.26m length outrigger footprint standard 　 width outrigger footprint standrard 　 total weight 1180kg traveling speed 35kmh power 1.standard power source 2.optional power source diesel engine 1.electric 220v ac power 2.battery

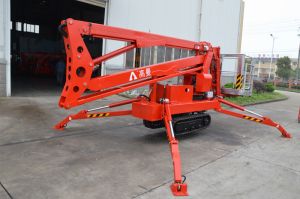

We offer Crawler mounted X18. The X18 is a crawler mounted platform with compact design, it is easy to operate.0.92m is the overall stowed width with maximum capacity 200 kg and 16m platform height. Specification ►Compact design for indoor and outdoor use.Can drive in most tender and rigid ground. ►Self-leveling platform ►basket and turret operation panel ►Hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►Low ground pressure due to optimal weight dispersal. ►Dual power sources:220V AC and petrol engine. ►Cables and hoses inside the boom. ►Made of high strength steel, famous Chinese brand ►Complete documentation: Operator manual, electronic and hydraulic diagrams. ►Safety and reliability: Complies with or exceeds all by ISO manufacturing standards, e.g. CE-approval. ►Manufactured according to: EN 280 Model X18 Max.working height 18.00m Max.platform height 16.00m Loading capacity 200kg Lateral outreach 7.20m Basket rotation - Jib rotation 100° Turntable rotation 359°non-continuous Size of basket 1.0x0.8x1.1m Overall stowed length 5.30m Overall stowed width 0.92m Overall stowed height 2.00m Standard power source Diesel engine 220V AC power Driving speed 0-1.5kmh Max.climbing ability 30° Total weight 2200kg

The x15 is a crawler mounted platform with compact design, it is easy to operate.0.9m is the overall stowed width with max capacity 200 kg and 13m platform height. Specification ►compact design for indoor and outdoor use.can drive in most tender and rigid ground. ►self-leveling platform ►basket and turret operation panel ►hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►low ground pressure due to optimal weight dispersal. ►dual power sources:220v ac and petrol engine. ►cables and hoses inside the boom. ►made of high strength steel, famous chinese brand ►complete documentation: operator manual, electronic and hydraulic diagrams. ►safety and reliability: complies with or exceeds all by iso manufacturing standards, e.g. Ce-approval. ►manufactured according to: en 280 model x15 max.working height 15.00m max.platform height 13.00m loading capacity 200kg lateral outreach 6.20m basket rotation - jib rotation 100° turntable rotation 359°non-continuous size of basket 0.95x0.65x1.1m overall stowed length 5.16m overall stowed width 0.90m overall stowed height 2.10m standard power source gasoline engine 220v ac power driving speed 0-1.5kmh max.climbing ability 20° total weight 1900kg

We offer trailer mounted. P18 is featured with 3 telescopic boom section plus one articulated boom, robust design with 7m outreach. P18 is ideal instrument for all kinds of house job. Because of quality alko axle, it can still be hauled up to 80kmh. specifications ►articulating boom ►multiple job site application, indoors and outdoors ►high and low operation panel ►hydraulically outriggers and outrigger interlocks ►hydraulically surge brakes ►350°non-continuous turntable rotation ►all pipelines put inside the machine, to avoid tangled sun and rain or other objects ►made of high strength steel, famous china brand ►protective covers for oil-tank, emergency controls etc. model p18 max.working height 18.00m max.platform height 16.00m loading capacity 200kg lateral outreach 7.00m basket rotation - jib rotation 100° turntable rotation 359° size of basket 0.9x0.8x1.1m overall stowed length 5.95m overall stowed width 1.62m overall stowed height 2.40m length outrigger footprint standard 3.95m width outrigger footprint standrard 3.15m total weight 1950kg traveling speed 35kmh power 1.standard power source 2.optional power source diesel engine 1.electric 220v ac power 2.battery

We are offering the x16 is a crawler mounted platform with compact design, it is easy to operate.0.9m is the overall stowed width with max capacity 200 kg and 14m platform height. Specification ►compact design for indoor and outdoor use.can drive in most tender and rigid ground. ►self-leveling platform ►basket and turret operation panel ►hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►low ground pressure due to optimal weight dispersal. ►dual power sources:220v ac and petrol engine. ►cables and hoses inside the boom. ►made of high strength steel, famous chinese brand ►complete documentation: operator manual, electronic and hydraulic diagrams. ►safety and reliability: complies with or exceeds all by iso manufacturing standards, e.g. Ce-approval. ►manufactured according to: en 280 model x16 max.working height 15.80m max.platform height 13.80m loading capacity 200kg lateral outreach 6.20m basket rotation - jib rotation 100° turntable rotation 359°non-continuous size of basket 0.95x0.65x1.1m overall stowed length 5.16m overall stowed width 0.90m overall stowed height 2.10m standard power source gasoline engine 220v ac power driving speed 0-1.5kmh max.climbing ability 20° total weight 1900kg

We offer crawler mounted . The crawler mounted platform t23 is designed to provide excellent performance for indoor application.the compact design of the machine can guarantee the freely move.it provides two-way of power supply also. specification ►compact design for indoor and outdoor use.can drive in most tender and rigid ground. ►self-leveling platform ►basket and turret operation panel ►hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►low ground pressure due to optimal weight dispersal. ►dual power sources:220v ac and petrol engine. ►cables and hoses inside the boom. ►made of high strength steel, famous chinese brand ►complete documentation: operator manual, electronic and hydraulic diagrams. ►safety and reliability: complies with or exceeds all by iso manufacturing standards, e.g. Ce-approval. ►manufactured according to: en 280 model t23 max.working height 23.00m max.platform height 21.00m loading capacity 200kg lateral outreach 9.30m basket rotation 180° jib rotation 120° turntable rotation 359°non-continuous size of basket 1.2x0.8x1.1m overall stowed length 6.50m overall stowed width 1.60m overall stowed height 2.10m standard power source diesel engine electric motor driving speed 0-1.7kmh max.climbing ability 30° total weight 3700kg

We offer crawler mounted. The crawler mounted platform t26 is designed to provide excellent performance for indoor application.the compact design of the machine can guarantee the freely move.it provides two -way of power supply also. specification ►compact design for indoor and outdoor use.can drive in most tender and rigid ground. ►self-leveling platform ►basket and turret operation panel ►hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►low ground pressure due to optimal weight dispersal. ►dual power sources:220v ac and petrol engine. ►cables and hoses inside the boom. ►made of high strength steel, famous chinese brand ►complete documentation: operator manual, electronic and hydraulic diagrams. ►safety and reliability: complies with or exceeds all by iso manufacturing standards, e.g. Ce-approval. ►manufactured according to: en 280 model t26 max.working height 26.00m max.platform height 24.00m loading capacity 200kg lateral outreach 9.50m basket rotation 180° jib rotation 180° turntable rotation 359°non-continuous size of basket 1.2x0.8x1.1m overall stowed length 6.60m overall stowed width 1.70m overall stowed height 2.10m standard power source diesel engine electric motor driving speed 0-1.7kmh max.climbing ability 30° total weight 4350kg

Goman T30 telescopic boom provides excellent performance.The machine has a maximum outreach of 11m, a platform height of 28m and maximum capacity 200kg.It is available with electric and diesel engine. Specification ►Compact design for indoor and outdoor use.Can drive in most tender and rigid ground. ►Self-leveling platform ►basket and turret operation panel ►Hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►Low ground pressure due to optimal weight dispersal. ►Dual power sources:220V AC and petrol engine. ►Cables and hoses inside the boom. ►Made of high strength steel, famous Chinese brand ►Complete documentation: Operator manual, electronic and hydraulic diagrams. ►Safety and reliability: Complies with or exceeds all by ISO manufacturing standards, e.g. CE-approval. ►Manufactured according to: EN 280 Model T30 Max.working height 30.00m Max.platform height 28.00m Loading capacity 200kg Lateral outreach 11.00m Basket rotation 180° Jib rotation 180° Turntable rotation 359°non-continuous Size of basket 1.2x0.8x1.1m Overall stowed length 7.70m Overall stowed width 1.70m Overall stowed height 2.10m Standard power source Diesel engine 220V AC power Driving speed 0-1.5kmh Max.climbing ability 30° Total weight 4700kg

we offer crawler mounted. goman t36 telescopic boom provides excellent performance.the machine has a maximum outreach of 13.9m, a platform height of 34m and maximum capacity 250kg.it is available with electric and diesel engine. specification ►compact design for indoor and outdoor use.can drive in most tender and rigid ground. ►self-leveling platform ►basket and turret operation panel ►hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►low ground pressure due to optimal weight dispersal. ►dual power sources:220v ac and petrol engine. ►cables and hoses inside the boom. ►made of high strength steel, famous chinese brand ►complete documentation: operator manual, electronic and hydraulic diagrams. ►safety and reliability: complies with or exceeds all by iso manufacturing standards, e.g. ce-approval. ►manufactured according to: en 280 model t36 max.working height 36.50m max.platform height 34.50m loading capacity 250kg lateral outreach 13.90m basket rotation 180° jib rotation 180° turntable rotation 360°non-continuous size of basket 1.2x0.8x1.1m overall stowed length 8.47m overall stowed width 1.59m overall stowed height 2.20m standard power source diesel engine 220v ac power driving speed 0-1.5kmh max.climbing ability 30° total weight 5600kg

The crawler mounted platform t53 is designed to provide excellent performance.it is the highest platform in the world.but with compact design of the machine(witdth:1.58m).with maximum capacity of 350kg.it provides two-way of power supply. Specification ►compact design for indoor and outdoor use.can drive in most tender and rigid ground. ►self-leveling platform ►basket and turret operation panel ►hydraulically arms and outrigger interlocks ►355°non-continuous turntable rotation ►low ground pressure due to optimal weight dispersal. ►dual power sources:220v ac and petrol engine. ►cables and hoses inside the boom. ►made of high strength steel, famous chinese brand ►complete documentation: operator manual, electronic and hydraulic diagrams. ►safety and reliability: complies with or exceeds all by iso manufacturing standards, e.g. Ce-approval. ►manufactured according to: en 280 model t53 max.working height 53.30m max.platform height 51.30m loading capacity 350kg lateral outreach 16.50m basket rotation 180° jib rotation 180° turntable rotation 359° size of basket 1.21.51.82.4x0.8x1.1m overall stowed length 8.71m overall stowed width 1.58m overall stowed height 1.98m standard power source diesel engine electric motor driving speed 0-1.5kmh max.climbing ability 30° total weight 13600kg

We are offering scissor lift s06. Model s06 max.working height m 8 max.platform height m 6 loading capacity 380kgs overall height(lift) m 2.20 overall height(lower) m 1.87 overall length m 2.45 overall width m 0.81 platform size m 2.27x0.81 platform extension size m 0.90x0.81 power 24v3.3kw drive speed-eleveted 3.5kmh drive speed-lowered 0.8kmh liftlower time 2454sec battery 4x6v225ah gradeability 25% maximum slope 2-3° wheel size φ381mm*127mm control electro-hydraulic proportional control total weight 1960kgs

We are offering scissor lift s08 model s08 max.working height m 10 max.platform height m 8 loading capacity 450kgs overall height(lift) m 2.32 overall height(lower) m 1.78 overall length m 2.45 overall width m 1.12 platform size m 2.27x1.12 platform extension size m 0.9x1.12 power 24v3.3kw drive speed-eleveted 3.5kmh drive speed-lowered 0.8kmh liftlower time 2838sec battery 4x6v225ah gradeability 25% maximum slope 2-3° wheel size φ381mm*127mm control electro-hydraulic proportional control total weight 2180kgs.

We are offering scissor lift model s10 max.working height m 12 max.platform height m 10 loading capacity 320kgs overall height(lift) m 2.44 overall height(lower) m 1.92 overall length m 2.45 overall width m 1.12 platform size m 2.27x1.12 platform extension size m 0.9x1.12 power 24v3.3kw drive speed-eleveted 3.5kmh drive speed-lowered 0.8kmh liftlower time 4536sec battery 4x6v225ah gradeability 25% maximum slope 2-3° wheel size φ381mm*127mm control electro-hydraulic proportional control total weight 2490kgs.

We are offering scissor lift model s12 max.working height m 14 max.platform height m 12 loading capacity 320kgs overall height(lift) m 2.58 overall height(lower) m 2.04 overall length m 2.45 overall width m 1.12 platform size m 2.27x1.12 platform extension size m 0.9x1.12 power 24v3.3kw drive speed-eleveted 3.5kmh drive speed-lowered 0.8kmh liftlower time 8438sec battery 4x6v225ah gradeability 25% maximum slope 1.5-3â° wheel size ï�381mm*127mm control electro-hydraulic proportional control total weight 2850kgs.
