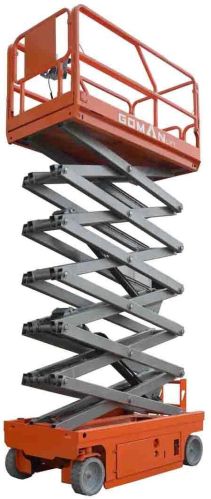

Scissor Lift S10

We are offering scissor lift model s10 max.working height m 12 max.platform height m 10 loading capacity 320kgs overall height(lift) m 2.44 overall height(lower) m 1.92 overall length m 2.45 overall width m 1.12 platform size m 2.27x1.12 platform extension size m 0.9x1.12 power 24v3.3kw drive speed-eleveted 3.5kmh drive speed-lowered 0.8kmh liftlower time 4536sec battery 4x6v225ah gradeability 25% maximum slope 2-3° wheel size φ381mm*127mm control electro-hydraulic proportional control total weight 2490kgs.
