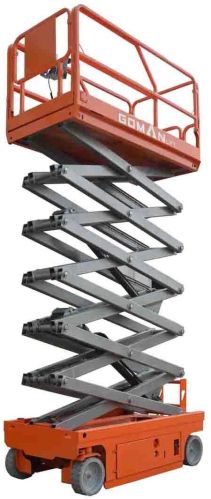

Scissor Lift S12

We are offering scissor lift model s12 max.working height m 14 max.platform height m 12 loading capacity 320kgs overall height(lift) m 2.58 overall height(lower) m 2.04 overall length m 2.45 overall width m 1.12 platform size m 2.27x1.12 platform extension size m 0.9x1.12 power 24v3.3kw drive speed-eleveted 3.5kmh drive speed-lowered 0.8kmh liftlower time 8438sec battery 4x6v225ah gradeability 25% maximum slope 1.5-3â° wheel size ï�381mm*127mm control electro-hydraulic proportional control total weight 2850kgs.
