Jinan fine Testing Instrument Co., Ltd.

Jinan, Shandong Province, China

• MOQ 1 Set(s)

model wdw-5 wdw-10/20 wdw-50 wdw-100 wdw-200 wdw-300 capacity 5kn 10/20kn 50kn 100kn 200kn 300kn features adopting speed-adjusting system and ac servo motor, full digital measuring and controlling system load capacity 2%--100% of the max. test load load accuracy within ±1% deformation accuracy within ±1% displacement resolution better than 0.01mm crosshead velocity 0.05 - 500 mm/min stepless setting 0.05 -300mm/min stepless setting 0.01-200mm/min stepless setting test stroke (mm) 800 600 dimension(mm) 760x660x1850 800x660x1980 900x660x2150 clamps wedge, plate and other clamps designed according to the clients weight(kg) 350kg 600kg 1000kg type of machine floor

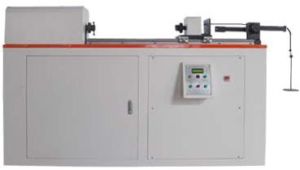

NJ-X Wire Torsion Testing Machine Model: NJ-S1X, NJ-S3X, NJ-S10X Main Structure, Function and Application Range： The torsion test machine is mainly used for determination of diameter φ0.3-φ1mm, φ1-φ3mm, φ3-φ10mm metal wire in the one-way or two-way reverse the ability to withstand plastic deformation during the test can show wire surface defects. Mainly applied scientific research departments, industrial and mining enterprises and institutions used to determine the mechanical laboratory torsional properties of materials, particularly suitable for production line testing and the use of flat wire cable unit purchase inspection. torsion test machine with 2-3 kinds of rotation speed to choose from, such as 30, 60, 90, 120, 180, 300 / min, through the belt pulley adjustment; to clamp wire length 300-100mm, 500 - 300mm; with a pulley driven weights and axial force, liquid crystal display test laps, after the test specimen and automatically latch ring value. Prime Technical Parameters: Model NJ-S1X NJ-S3X NJ-S10X Technical parameters Test range φ0.3-φ1mm φ1-φ3mm φ3-φ10mm Mobile guide full parallelism within ＜0.2mm ＜0.2mm ＜0.2mm Maximum distance of two chuck 100-300mm 100-300mm 300-500mm Rotation speed 60、180、300r/min 60、90、120r/min 30、60r/min Jaw stiffness 55～65 HRC 55～65 HRC 55～65 HRC Weight tolerance ±0.5% ±0.5% ±0.5% Testing machine operating noise ＜70 dB ＜70 dB ＜70 dB Operating Voltage AC 380V±10% 50HZ AC 380V±10% 50HZ AC 380V±10% 50HZ

Nj-w microcomputer-controlled torsion testing machine model：nj-w500，nj-w1000，nj-w2000 main structure, function and application range： this machine is mainly applicable to the torsion test of metal or nonmetal materials and some parts. the load system is the computer-controlled ac servo control system imported from japan, which increases the torque in a rotating way through the master collets driven by a ac servo motor, cycloid acicular reducers. The moment of torsion and torsional angle are measured with torque sensor of high precision. The moment of torsion and angle curves, the loading speed and the holding of peak value can be displayed dynamically on screen. this machine has features as simple structure, easy operation, complete functions, high precision, sound stability and advanced technology, etc, and fully meets the requirements of gb/t10128-1998 , metal torsion test method under room temperature, which makes it the necessary equipment to test the torsional performance of materials for the aviation & spaceflight industry, the construction trade, the transportation trade and the mechanical labs of universities, institutes, companies. prime technical parameters: model nj-w500 nj-w1000 nj-w2000 max test torque 500nm 1000nm 2000nm torque display value 10-500nm 20-1000nm 40-2000nm relative error of torque display-value ±1% repetitive error of torque display-valu ±1% measure range of torsional angle 0 ~ 9999.9° relative error of torsional angle display-valu ±1% max distance between the two collet 0-500mm host machine 1650x530x1000mm power supply 220v±10%，50hz weight 600kg

• MOQ 1 Set(s)
• Capacity(N)100/200/500/1000
• Load Resolution0.01N

main structure, function and application range ï¼?mainly used in plastic film, stretch film, stretch film, textile fibers, paper, rubber, adhesives, food packaging materials, plastic sheets, wire rope, cell phone cable, wire connector, aluminum foil, stainless steel strip, wire copper wire, stainless steel wire and other small load of the tensile, tear, peel, sealing and other tests. widely used in factories and mines, metal building materials, aerospace, machinery, wire and cable, rubber, plastics, textiles, household appliances, paper and other industries of material tests and analysis, scientific research institutes, universities, industrial and mining enterprises, technical supervision, inspection arbitration and other departments of the ideal test equipment. arm stable and reliable host and elegant, tensile journey, stepless speed wide. large-screen lcd control system based on single chip controller as the core of real-time display test force, displacement, speed indicators, and a test force peak hold function, either manually, or you can set the auto-complete the test pilot shen shu, automatic calculation the tensile strength, elongation and other technical indicators. data query results can be printed.

• MOQ 1 Set(s)
• Capacity1/2/3/5kN
• Load Accuracy within ±1%

model wdw-s1 wdw-s2 wdw-s3 wdw-s5 capacity 0.02～1kn 0.04～2kn 0.06~3kn 0.1~5kn load accuracy within ±1% displacement resolution 0.01 mm speed range 1 mm/min～500 mm/min，step less speed regulation and arbitrary setting test space 600(or 900)mm power 220v±10%, 50hz main configuration ac servo motor and speed adjustment system, precision photoelectric encoder. dimension 425*350*1350 (or 1650) mm weight 150kg

• MOQ 1 Set(s)

model wdw-s10 wdw-s20 wdw-s50 wdw-s100 capacity 0.2~10kn 0.4~20kn 1~50kn 2~100kn load accuracy within ±1% displacement resolution 0.01 mm speed range 0.1 mm/min～500 mm/min, step less speed regulation and arbitrary setting test space 600mm power 220v±10%, 50hz operating temperature range 10℃~30℃ humidity range within 80% main configuration ac servo motor and speed adjustment system, precision photoelectric encoder. imported servo motor and speed adjustment system, precision photoelectric encoder. dimension 760*660*1850mm 800*660*1980mm weight 500kg 750kg
