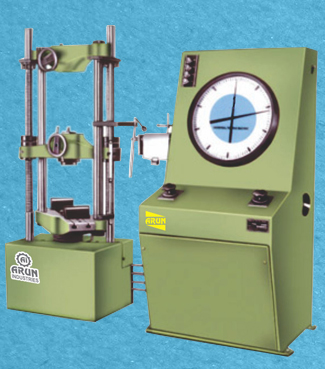

ARUN Universal Testing Machine is designed for testing materials and other materials under tension, compression bending, transverse and shear loads.Â
MODEL | - | UTN-10 | UTN-20 | UTN-40 | UTN-60 | UTN-100 |
Maximum capacity | kN | 100 | 200 | 400 | 600 | 1000 |
1st Measuring Range | kN | 0-100 | 0-200 | 0-400 | 0-600 | 0-1000 |
Minimum Graduations | kN | 0.2 | 0.4 | 1 | 1 | 2 |
2nd Measuring Range | kN | 0.50 | 0-100 | 0-200 | 0-300 | 0-500 |
Minimum Graduations | kN | 0.1 | 0.2 | 0.5 | 0.5 | 1 |
3rd Measuring Range | kN | 0.25 | 0-50 | 0-100 | 0-120 | 0-250 |
Minimum Graduations | kN | 0.05 | 0.1 | 0.25 | 0.2 | 0.5 |
4th Measuring Range | kN | 0.10 | 0-20 | 0-40 | 0-60 | 0-100 |
Minimum Graduations | kN | 0.02 | 0.04 | 0.1 | 0.1 | 0.2 |
Clearance for tensile at fully descended working piston | mm | 50-700 | 50-700 | 50-700 | 50-800 | 50-850 |
Clearance for compression test at fully descended working piston | mm | 0-700 | 0-700 | 0-700 | 0-800 | 0-850 |
Clearance between columns | mm | 500 | 500 | 500 | 600 | 750 |
Ram stroke | mm | 150 | 200 | 200 | 250 | 250 |
Straining/piston speeds (at no load) | mm/min | 0-300 | 0-150 | 0-150 | 0-100 | 0-80 |
CONNECTED LOAD | - | - | - | - | - | - |
HP | - | 1.3 | 1.3 | 2.3 | 2.5 | 3.5 |
V | - | 400-440 | 400-440 | 400-440 | 400-440 | 400-440 |
ø | - | 3 | 3 | 3 | 3 | 3 |
DIMENSIONS | - | - | - | - | - | - |
L X W X H (approx.) | mm | 2032 x 750 x 1960 x |
2032 x 750 x 1960 x |
2060 x 750 x 2180 x |
2065 x 750 x 2534 x |
2415 x 815 x 2900 x |
Weight approx. | kg | 1500 | 1500 | 2500 | 3500 | 5500 |
STANDARD ACCESSORIES | - | - | - | - | - | - |
FOR TENSION TEST | - | - | - | - | - | - |
Clamping jaws for flat specimens diameter | mm | 10-20 20-30 |
10-20 20-30 |
10-25 25-40 |
10-25 25-40 40-55 |
10-25 25-45 45-70 |
Clamping jaws for flat specimens thickness width | mm | 0-10 10-20 50 |
0-10 10-20 50 |
0-15 15-30 65 |
0-15 15-30 70 |
0-22 22-44 44-65 70 |
FOE COMPRESSION TEST | mm | - | - | - | - | - |
Pair of compression plates of diameter | mm | 120 | 120 | 120 | 120 | 160 |
FOR TRANSVERSE TEST | mm | - | - | - | - | - |
Table with adjustable rollers width of rollers | mm | 160 | 160 | 160 | 160 | 160 |
Diameter of rollers | mm | 30 | 30 | 30 | 50 | 50 |
Maximum clearance between supports | mm | 500 | 500 | 500 | 600 | 800 |
Radius of punch tops | mm | 6,12 | 6,12 | 12, 16 | 16, 22 | 16, 22 |
