Resolutions : 0.025% of nominal load cell range and 0.1 mm in elongation measurement.
Application : Strength Testing
Driven Type : Electric
Supply Type : Manufacturer
Brand Name : PAP-TECH
Power Supply : 1Phase, 220Volt, And AC.,ELECTRIC
Condition : New
Measuring Result : Individual results of Tensile Force, Tensile Strength, Stretch, TEA, Tensile Stiffness, Breaking Length, Breaking time means value & Standard Deviation in both Dry & Wet
Drive System Option - SD with servo drive : 0.5 mm to 500 mm/min {Any other speed range available on request)
Power Supply : 230 V AC/50Hz, 1 Ph 415 V AC/50Hz, 3 Ph
Supply Type : Manufacturer
Load Measuring Range and Accuracy : + 1% on indicated load from 2 % to 100 % of load capacity.
Drive System Option - DD with DC drive : 1:10speed ratio 5 - 50 mm / min, 25 - 250 mn/min, 50 - 500 mm/ min (Any other speed range available
Measuring System Microcontroller Panel Crosshead Display Resolution Load Range & Resolution : Model Di-mp 0.1 Mm By Means of Rotary Encoder 1 /10000 from 0-40 %of Range and 1 / 4000 from 40-100%
Control Panel Features : Front Panel Touch Screen Display For Operation,Data Entry For Key Test Parameters,Real-time Graph Of Load Vs. Displacement,USB Printer Port For Direct Printing,Export Functionality For Results/data In PDF, Excel, And CSV Formats,Windows-based Software Wit
Supply Type : Manufacturer
Country of Origin : India
Features : Open-type Crosshead For Specimen Placement,Hydraulic Wedge Action Grips For Holding,Long Test Stroke And Ample Test Space,Loading Accuracy As High As ±1%,Variable-speed Straining For Materials,Servo-controlled Motorized Valve With Multiple Control Modes,

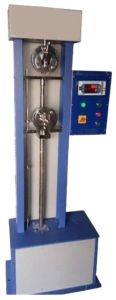

The machine in designed for determining the tensile strength of sheet material such as paper, paper board, plastics, metal foil, etc. The testing is made by inserting a sample between two vertical grips, and increasing the load until the...
Tensile Strength, the maximum force developed a test specimen before rupture on the tensile test carried to rupture under prescribed conditions. Tensile Strength (as used here) is the force per unit width of test specimen. Stretch, the maximum tensile strain developed in...
Tensile strength, the maximum tensile force developed in a test specimen before rupture on a tensile test carried to rupture under prescribed conditions. Tensile strength (as used here) is the force per unit width of test speciman. Stretch, the maximum tensile strain...
