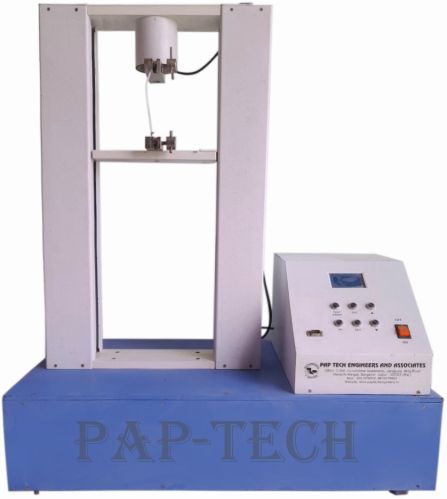

Electric Paper Mill Vertical Tensile Strength Tester, Color : BLUE

Description:

Vertical Tensile Strength Tester With Digital display of Tensile Strength & Stretch of Paper, Paperboard and similar materials complete with memory for retaining peak value, automatic or normal zero setting, overload and over travel protection facilities. With imported load cell & imported DC motor.

The Microprocessor Based Tensile Strength Tester is used for determining the tensile strength and stretch of sheet materials.

Technical - Specification :

Measuring Result : Individual results of Tensile Strength, Stretch, TEA, Tensile Stiffness, Breaking Length, Breaking time mean value & Standard Deviation.

Clamping Length : Selected.

Accuracy :  1% of reading down to 10% of the load cell capacity.

Resolutions : 0.025% of nominal load cell range and 0.1 mm in elongation measurement.

Computer Output : 1. RS 232 C & Printer port Model C 2 interface with pc having a specification a Pentium & specially developed software.

Application Standards:

SCAN P-38 ISO 1924/4, TAPPI 494, APPITA/ AS 1301.448, BS 4415, CPPA D 34, DIN 533112, TEILL 1
