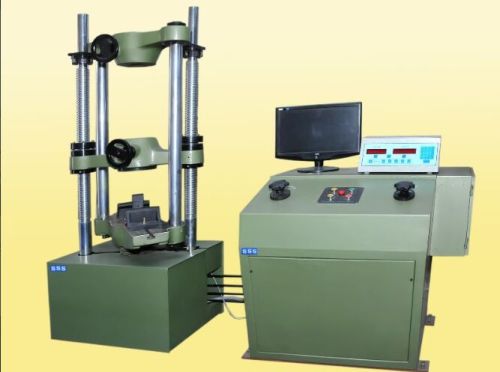

Fully Automatic Computerised Universal Testing Machine, Voltage : 110V, Power : 1-3kw

Listing ID #898524

Get Latest Price

MOQ 1 Set(s)
Automatic GradeAutomatic
Power1-6 Kw
ApplicationTesting
Voltage380V, 220V
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Automatic Grade Automatic
Power 1-6 Kw
Application Testing
Voltage 380V, 220V
Warranty 1 Year
Country of Origin India
Pack Type Wooden Box

Features :

We are a renowned Manufacturer and Exporter of Computerised Universal Testing Machine based in India. Designed to precision, the Universal Testing Machine offered by us is widely used for testing purposes in varied processes. Made from the best quality raw materials, our Universal Testing Machine possesses reliability and durability. Further, the clients can avail from us, the quality-tested Universal Testing Machine at very reasonable prices in the markets.

Hydraulic Controls
Hand operated wheels are used to control the flow to and from the hydraulic cylinder. The regulation of the oil flow is infinitely variable incorporated in the hydraulic system is a regulating valve. Which maintains a practically constant rate of piston movement. Control by this valve allows extensometer readings to be taken.
Electronic Control Panel
The electronic control panel is built using 8085 microprocessor which incorporates state of the art technology with following features :

Front panel membrane type key board for test setup.
7 seg digital display of load displacement / extension. Printer port interface
Serial port for communication with Pc.
Optional add-on facility for electronic extensometers & electronic load pacer.
Storage of important parameters such as peak load, displacement at peak load & maximum displacement alter test.
Period selection to take care of initial slippage

Serial Communication & Software Package On PC
The SSS-UTM(E) series control panel can be hooked to any PC using RS-232 communication port. offers different exhaustive application. Window based software packages on PC to enable the user to effectively evaluate different parameters.
The features include :

User friendly main menu with pop up menus prompt messages and help windows.
Extensive graphics on screen for curve plotting, magnification and zooming.
Evaluation of wide range of user selectable parameters such as young's modulus. yield stress. proof stress etc.
Advanced file handling for data storage. Printout option for reports. data and graph etc.
Optional software package for statistical evaluation.

Accuracy and Calibration
All Computerised Universal Testing Machines are closely controlled for sensitivity. accuracy and calibration during every stage of manufacture. Every machine is then calibrated over each of its measuring ranges in accordance with the procedure laid down in British Standards 1610: part 1: 1992 and 10: 1828:Part 1: 1991.Below 20% of the selected range. the maximum permissible error is 0.2%ofthe full load reading.

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Technical Specification Of Computerised Universal Testing Machine, Model : SSS-UTM(E)

SPECIFICATIONS / MODEL	SSS-UTM- 10(E)	SSS-UTM-20(E)	SSS-UTM- 40(E)	SSS-UTM-60(E)	SSS-UTM-100(E)
MAXIMUM CAPACITY. (KN)	100	200	400	600	1000
MEASURING RANGE (KN)	0-100	0-200	0-400	0-600	0-1000
LOAD RESOLUTION (KN)	0.02	0.04	0.1	0.1	0.2
RESOLUTION OF PISTON MOVEMENT (DISPLACEMENT) (MM)	0.1	0.1	0.1	0.1	0.1
CLEARANCE FOR TENSILE TEST AT FULLY DESCENDED WORKING PISTON (MM)	50-700	50-700	50-700	50-800	50-850
CLEARANCE FOR COMPRESSION TEST AT FULLY DESCENDED WORKING PISTON (MM)	0-700	0-700	0-700	0-800	0-850
CLEARANCE BETWEEN COLUMNS (MM)	500	500	500	600	750
RAM STROKE (MM)	150	200	200	250	250
STRAINING PISTON SPEEDS AT NO LOAD (MM/MIN.)	0-300	0-150	0-150	0-100	0-80

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

CONNECTED LOAD

SPECIFICATIONS / MODEL	SSS-UTM- 10(E)	SSS-UTM-20(E)	SSS-UTM- 40(E)	SSS-UTM-60(E)	SSS-UTM-100(E)
HP.	1.3	1.3	2.3	2.5	3.5
V.	400-440	400-440	400-440	400-440	400-440
PH.	3	3	3	3	3
DIMENSIONS : L (MM) APPOROX	2032	2032	2060	2265	2415
W (MM)	750	750	750	750	815
H (MM)	1960	1960	2180	2534	2900
WEIGHT (KG.) APPROX.	1500	1500	2500	3500	5000

STANDARD ACCESSORIES FOR TENSION TEST

SPECIFICATIONS / MODEL	SSS-UTM- 10(E)	SSS-UTM-20(E)	SSS-UTM- 40(E)	SSS-UTM-60(E)	SSS-UTM-100(E)
CLAMPING FOR ROUND SPECIMEN DIAMETER (MM)	10-20 20-30	10-20 20-30	10-25 25-40	10-25 25-40 40-55	10-25 25-45 45-70
CLAMPING JAWS FOR FLAT SPECIMEN THICKNESS (MM)	0-10 10-20	0-10 10-20	0-15 15-30	0-15 15-30	0-22 22-44 44-65
WIDTH (MM)	50	50	65	70	70
FOR COMPRESSION TEST
PAIR OF COMP. PLATES DIA. (MM)	120	120	120	120	160

FOR TRANSERVERSE TEST

SPECIFICATIONS / MODEL	SSS-UTM- 10(E)	SSS-UTM-20(E)	SSS-UTM- 40(E)	SSS-UTM-60(E)	SSS-UTM-100(E)
TABLE WITH ADJUSTABLE ROLLERS, WIDTH OF ROLLERS (MM)	160	160	160	160	160
DIAMETER OF ROLLERS (MM)	30	30	30	50	50
MAX CLEARANCE BET’N SUPPORTS (MM)	500	500	500	600	800
RADIUS OF PUNCH TOPS (MM)	6, 12	6, 12	12, 16	16, 22	16, 22

PDF

Download Detail File : Click Here

Additional Information

Port of Dispatch mumbai

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Images

Company Details

Established in the year 2009 at ichalakaranji, (maharashtra, india), we "s s s instruments" are engaged in manufacturing, exporting and supplying of high quality industrial and engineering instruments like universal testing machine, computerized universal testing machine, brinell hardness testing machine, vickers hardness testing machine, computerized vickers hardness tester, rockwell hardness tester, digital rockwell hardness tester, mechanical extensometer, electronic extensometer, pendulum impact testing machine, digital impact testing machine, electronic material testing machine, torsion testing machine, tensile testing machine, spring testing machine and fatigue testing machine. Our highly reliable products are immensely used in the steel industry, rolling mill, aluminium industry, forging company, any industry, technical educational institutes, universities, engineering colleges, industrial laboratory, plastic industry, rubber industry, textile industry, construction industry and every manufacturing company suppose to be have testing machines to test their products and oil industry. S s s (triple s) supply our products as per the is, bs, en, din and astm standards.
these products are designed by our team of skilled professionals, as per the rules and regulation of the international standards. We pay utmost importance to the quality of the products, thereby we not only make use of finest raw material during the manufacturing process, but also check the final range on various checking parameters.
