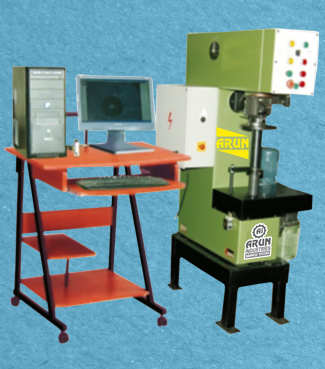

Brinell Hardness Testers - Fully Automatic Computerized

Get Latest Price

Testing table 70mm Ø1 No.
Telescopic cover for elevating screw protection1 Set
Machine height ( approx )1185mm
Load Range250 to 3000 kgf in stages of 250 kgf
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

ARUN INDUSTRIES

Kabnur, Kolhapur, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Measuring accuracy with CCD camera and built in optics0.01 mm
Allen Spanner4 Nos.
Load Range250 to 3000 kgf in stages of 250 kgf
Testing Table 200mm Ø1 No.
Dept. of throat200 mm
Mains supply415V, 50Hz, 3phase
Ball holder 5mm1 No.
Dwell timer1 to 99sec.
Test Block HB-10/30001 No.
Testing table 70mm Ø1 No.
Raising/lowering240 mm/min
Max. test height380 mm
Instruction Manual1 No.
Drive Power0.66 HP
Telescopic cover for elevating screw protection1 Set
Net Wight ( approx )450 kg.
Machine height ( approx )1185mm
Test Block HB-5/7501 No.
Ball holder 10mm1 No.

We are Manufacturer, Supplier, Exporter of all our product range and our setup is situated in Kolhapur ( Maharashtra, India )

'ARUN' Computerized Fully Automatic Brinell Hardness Tester, Model B3000-PC FULL AUTO is fabricated from steel plates and is designed for precise loading system. It is fully automatic machine for production testing. Once the job is placed on testing table and press "Cycle Start" button. The job is raised and brought in contact with clamping device. Then indentor is swiveled and brought in vertical loading position. The loading operation starts. After preset dwelling timer, unloading operation starts. As soon as load is fully removed, the indentor is swivelled and the image is digitalized using a CCD camera fitted on machine and captured by the PC.
The diameter of indentation is measured by PC and the Brinell Hardness is displayed on monitor with the help of "State of Art" technology software. The job is lowered down and here the auto cycle is over.
Operationally the machine can be operated after a lapse of interval without operation of push button, so that operator has only to do loading and unloading of job on machine.
This tester is designed for measuring hardness of metallic parts with wide testing range from soft to hard and its accurate results are widely acclaimed. This tester conforms to IS : 2281, BS : 10003 and ASTME - 10.

Features

Fully automatic machine for production testing.
Fully computerized (PC based) Brinell Hardness Tester.
Direct and accurate measurement of Brinell hardness number using "State of Art" image processing technology.
Wide testing range : From soft metal such as lead up to hardest, like tempered steel.
High accuracy and repeatability of measurement at all loads.
Advanced Window XP based software
Latest GUI features with user friendly software.
On line indentation setting and focusing on PC monitor.
Advanced image processing : Algorithms implemented for precise calculations of hardness numbers with various options to cover all ranges of specimens.
Batch file processing : Option for data/storage and reports generation.
Statical Evaluation : Software for calculating standard deviation, mean, medium, frequency distribution graph, variation graph etc.
Calibration mode facility.
Extendibility for future advanced image processing analysis, requirements.
"Auto measurement start" from machine.

Scope of Supply

Basic machine with CCD camera, optics with illumination system and connecting cable.
PCI video capture card with driver software.
PC and Windows operating system is to be procured by customer.
