Our coal gasifier is characterized by high capacity, complete
gasification and better coal adaptability, high gas calorific value,
easy operation and strong safety performance. It is widely used in
many industries.

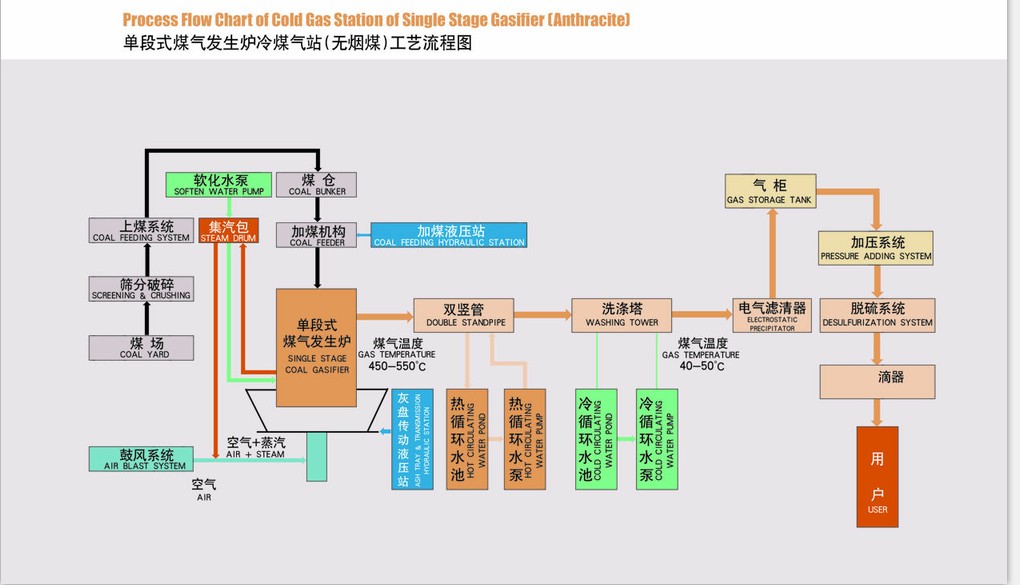

The technological flow(anthracite):unpurified gas produced by gasifier,
which temperature is 400-600°C, get into double-standpipe to be cooled by hot circulating water and washed out part of dust which discharged from the bottom water seal.Then the gas gets out from the top of standpipe which temperature is 80-90°C, and then gets into the washing tower for cooling and dust removing, then the temperature is lowered to 35-45°C. After removed dust by electrostatic precipitator, the gas is pressurized by gas booster fan, desulfurized by desulfurizing tower, and removed water bydrop catcher, at last be sent to the user. More..
