Liaocheng Ray fine Technology Co.,Ltd

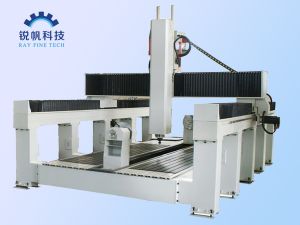

We are offering foam mold cnc machine. pefromance: features: 1. imported widen square-shaped orbit, two-line sliding track, heavy bearing, high precision and high power. 2. z working area can up to 1000mm, extensive processing area, suitable for the large thick materials processing. 3. intelligent anti-transgress-process protection system. This function can prevent machine from crashing when the design zone is beyond the process zone. 4. intelligent processing, traveling and cutting speed control. It can increase the efficiency, so improves the quality of finished products. application the foam mold cnc machine is mainly used for the following two industrial fields. firstly, molds industrial: it engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds. secondly, musical instrument industry: engrave 3-d large instruments and shaping technical specifications: model rf-2040-f xy working area 2000x4000mm z working area >500mm table size 2200x4500mm max travel speed 8m-30mmin processor dspfrequency 100mhz interface pci card or usb handle command g code*.u00*.mmg*.plt surroundings for software windows982000xp power(not include the spindle) 1500-2000w working voltage ac220v50hz spindle power rate 2.2-6.6kw spindle rotating speed 1800-24000rpmmin drive motor steper or servo

We are offering wood cnc router machine. Working area: 1300x2500x200mm spindle type: china water cooled spindle or italian air cooled spindle spindle power 2.2kw or 3kw, 4.5kw spindle rotating speed 0-24000rpm or 0-18000rpm power (except spindle power): 6 kw (include powers of: motors, drivers, inverters and so on) power supply: ac380â±10, 50 hz max moving speed: 35mmin max. Working speed: 25mmin worktable: t slot table locating precision:

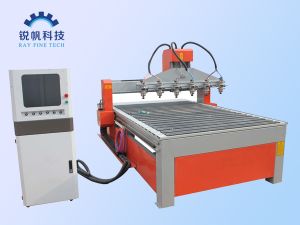

We are offering multi head cnc router machine. Features: it can be used to engravecarve on both flat and cylinder objects because the table is flexible. Welded with big and steel tube work more stable without vibration. Multi-heads working at the same time more efficiency model rf-1525-6 structure welded with big steel tube no.of spindle 4 spindle heads x, y axis travelling area 325mm(single head)*4-1800mm z axis travelling area 200mm machine size 1800*2080mm x-y-z movement high precision ball screw drivegemany guide linear squaretaiwan max.speed 20mmin max.working speed 15mmin working precision 0.02mm repositioning accuracy 0.025mm engraving command g code * u00* mmg* plt software environment windows982000xp working voltage ac220v50-60hz, 2-phase main spindle power 1.5kw*4 water-cooled motor main spindle speed 0-24000rpm driver motor stepper motor software type 3, artcut , artcam software control system dsp offline control system collet er20-12.7mm, 6mm, 3.175mm

We are offering fiber laser cutting machine. Model:rf-1530-f500w maximum power: 500w laser wave length:1064nm cutting thickness: ≤5mm(carbon steel); ≤4mm(stainless steel) cutting speed: 10mmin minimum line width: 0.2mm reposition accuracy:±0.05mm working size: 3000×1500mm drive system: servo system control system: special cnc control programme position: red position function whole machine power consumption:≤6kw power supply:380v50hz60hz40a cooling type: water cooling machine dimensions:(l×w×h) 4500×2500×1600mm.
